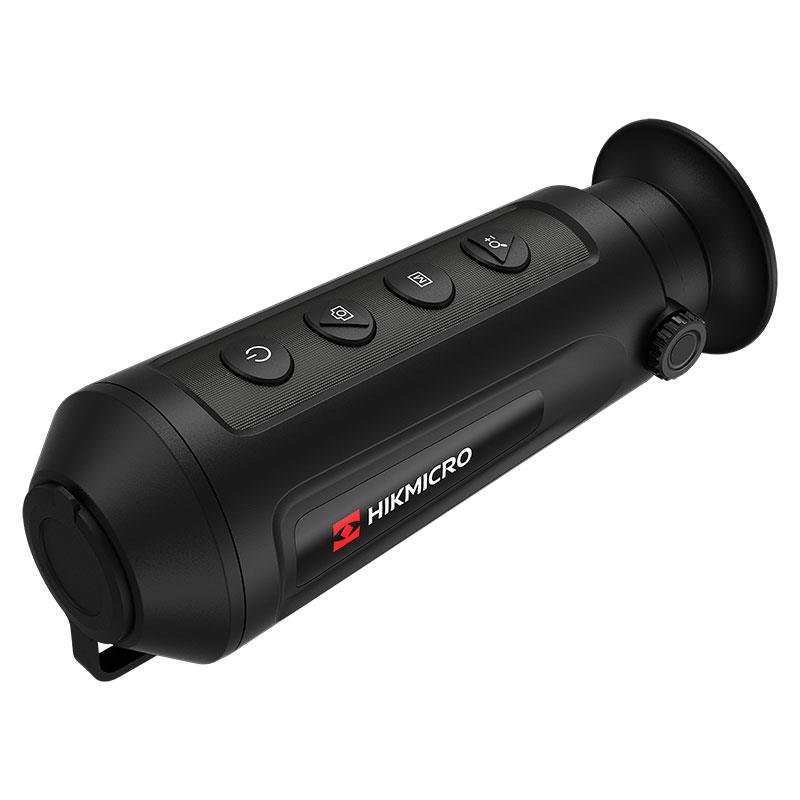

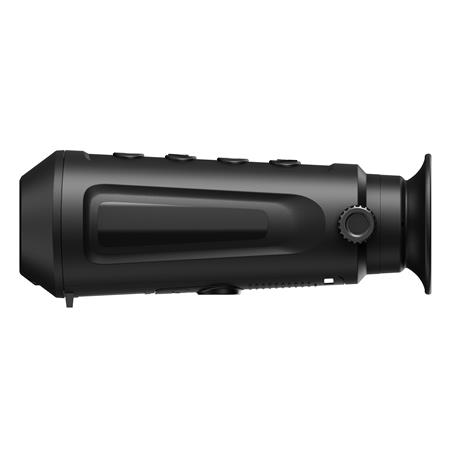

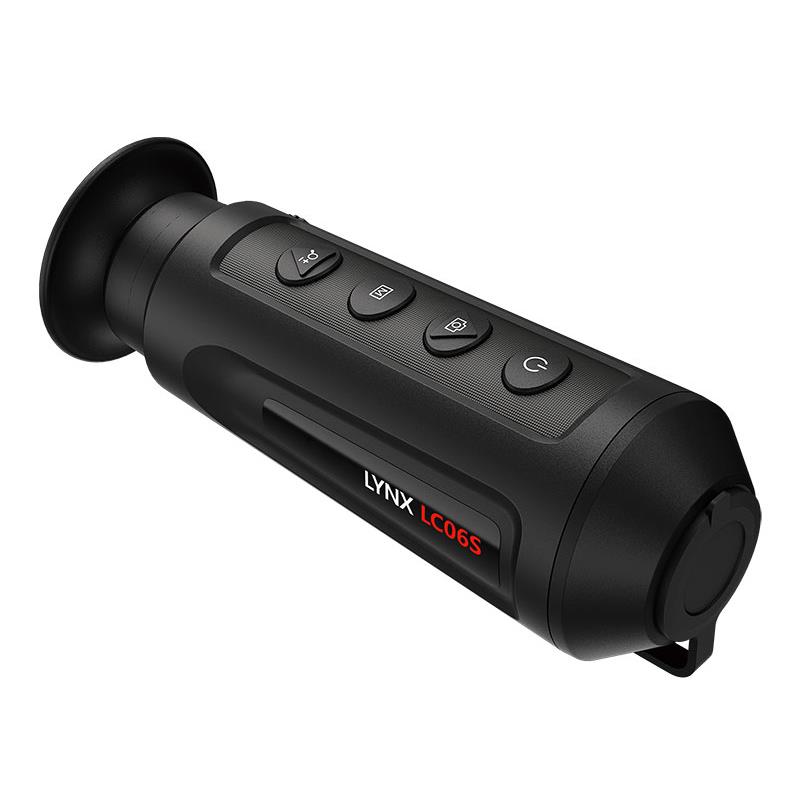

THERMAL VISION MONOCULAR HIKMICRO LYNX S LC06S

Thermal Vision Monocular Hikmicro Lynx S Lc06s

Name: THERMAL VISION MONOCULAR HIKMICRO LYNX S LC06S
Brand: Hikmicro
SKU: 346447
Rating: 1 (1 reviews)

Read more-Product description

(1 reviews)

388.50€

Recommended retail price : €388.50

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

HIKLC06S

€388.50

Models & specificities Descriptive Reviews

Descriptive

Back to menu

The HIKMICRO LYNX S LC06S thermal monocular is equipped with a 160 × 120 detector and an 800 × 600 OLED display.

It supports observation functions, Wi-Fi hotspot, etc.

The high-sensitivity built-in thermal detector provides clear images in difficult conditions.

The monocular is primarily applied to scenarios such as hunting, hiking, search and rescue, etc.

Main features :
• High-sensitivity thermal module with resolution 160 × 120
• NETD < 35 mK (@25°C, F# = 1,0)
• Image processing technology: Adaptive AGC, DDE, 3D DNR
• 0,32-inch OLED display with a resolution of 800 × 600
• Built-in rechargeable lithium battery
• Up to 10 hours of continuous operation
• Type-C interface
• Warranty
• Battery: 1 year
• Product: 3 years
• Thermal sensor: 10 years
• Specifications
• Thermal module

- Image sensor
• Uncooled vanadium oxide (Vox) focal plane arrays
• Resolution: 160 × 120
• Frame rate: 50 Hz
• Pixel pitch: 17 μm
• Response wavelength band: 8 μm to 14 μm
• NETD: < 35 mK (25°C, F# = 1.1)
• Lens (focal length): 6.2 mm, F1.1
• Detection range: 250 m
• Focus mode
• Free focus
• Minimum focus distance: 1 m
• Zoom: 1.0× to 4.0× (4×)
• Field of view (H × V), Degrees/M @100 M : 24.7° × 18.7° / 43.8 m × 32.9 m

- Image display
• Monitor: 800 × 600, 0.32-inch, OLED
• Image Mode: Black hot, white hot, red hot, fusion
• FFC mode (Image cleanup): Auto, Manual, External correction
• Exit pupil: 20 mm
• Eye relief: 6 mm
• Diopter (Range): -5D to +4D
• Brightness adjustment: Yes
• Tone adjustment: Cool, Warm
• Contrast adjustment: Yes

- System
• Video recording: Yes
• Photo recording: Yes
• Audio recording: Yes
• Sleep mode: Yes
• Storage: Built-in EMMC (8Go)
• PIP: Yes
• Wi-Fi (streaming): Yes
• Hot spot tracking: Yes
• Distance measurement: Yes

- Power
• Battery type: Rechargeable lithium battery
• Battery runtime
• 10 hours of continuous operation with CVBS and Wi-Fi disabled (@25°C)
• 8,5 hours of continuous operation with CVBS and Wi-Fi enabled (@25°C)

Type-C power supply
• 5 VDC, 2 A. Supports external power

- General
• Protection rating : IP67
• Dimensions: 158.4 mm × 60.4 mm × 57 mm (6.24" × 2.38" × 2.24")
• Operating temperature: -20°C to 55°C (-4°F to 131°F)
• Weight: 250 g (0.55 lbs)
