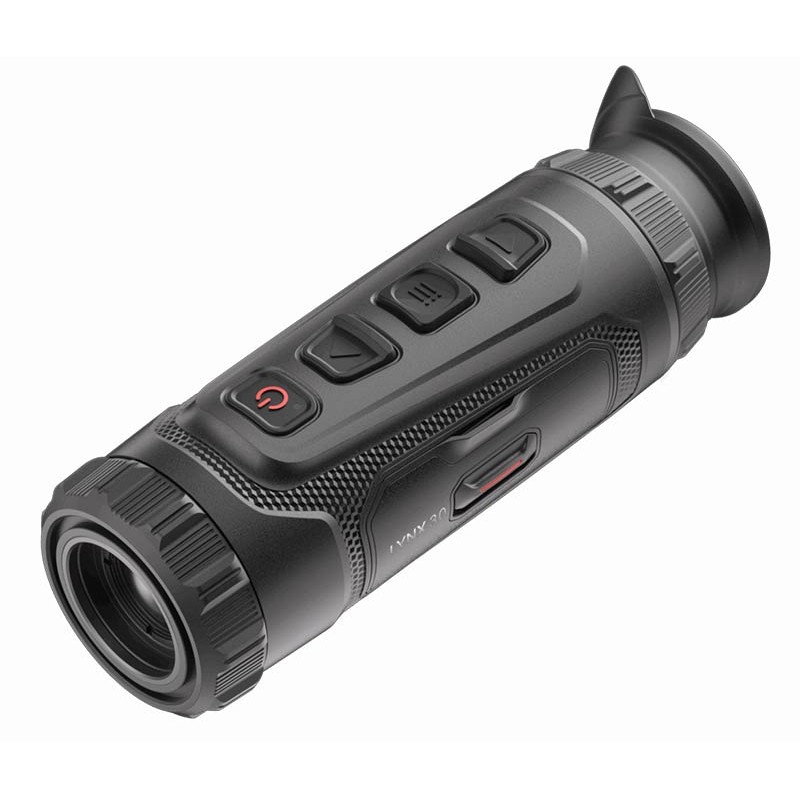

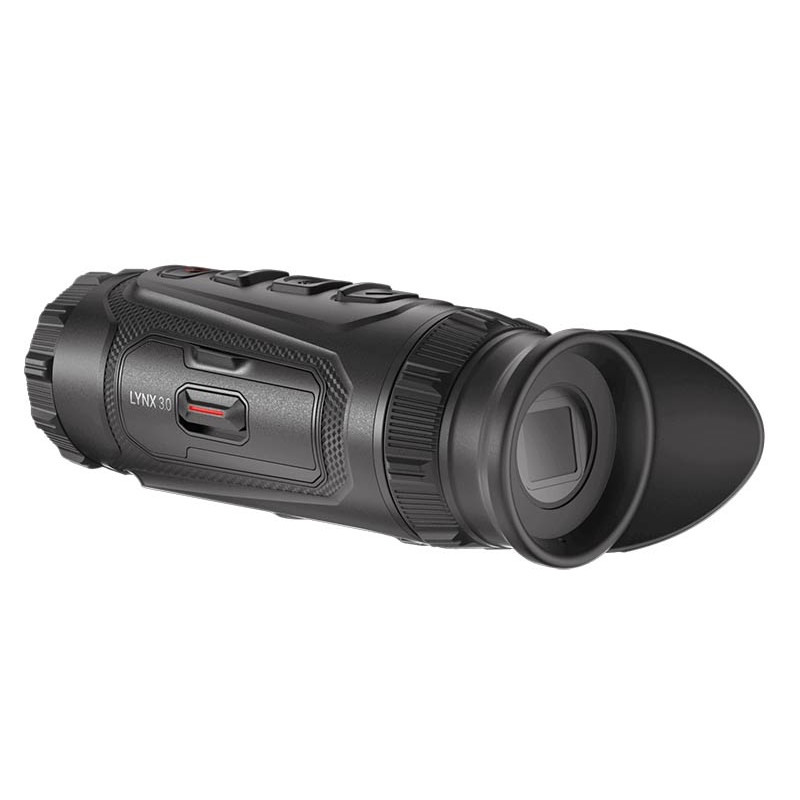

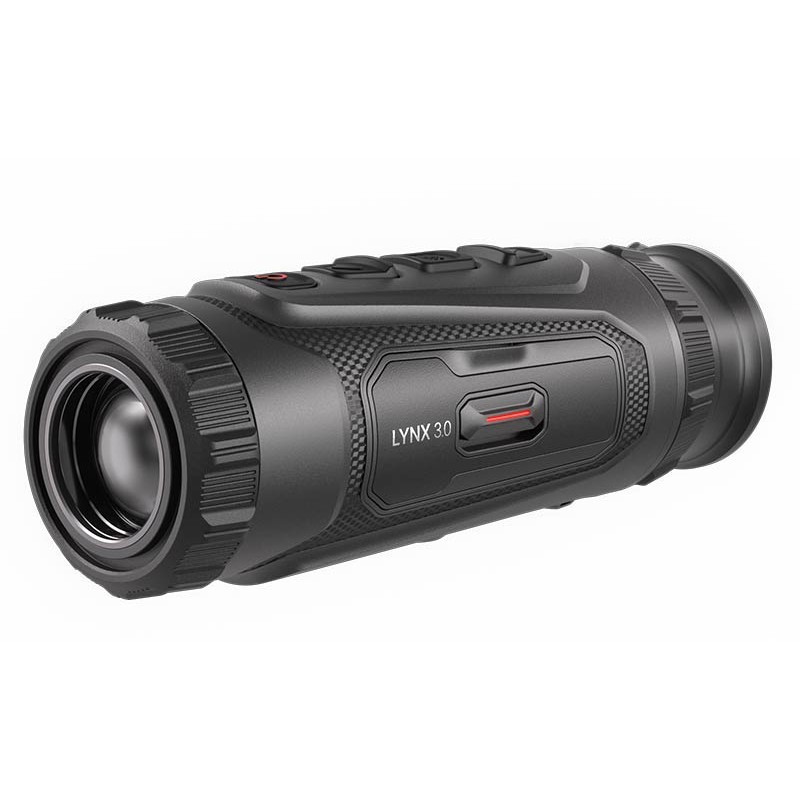

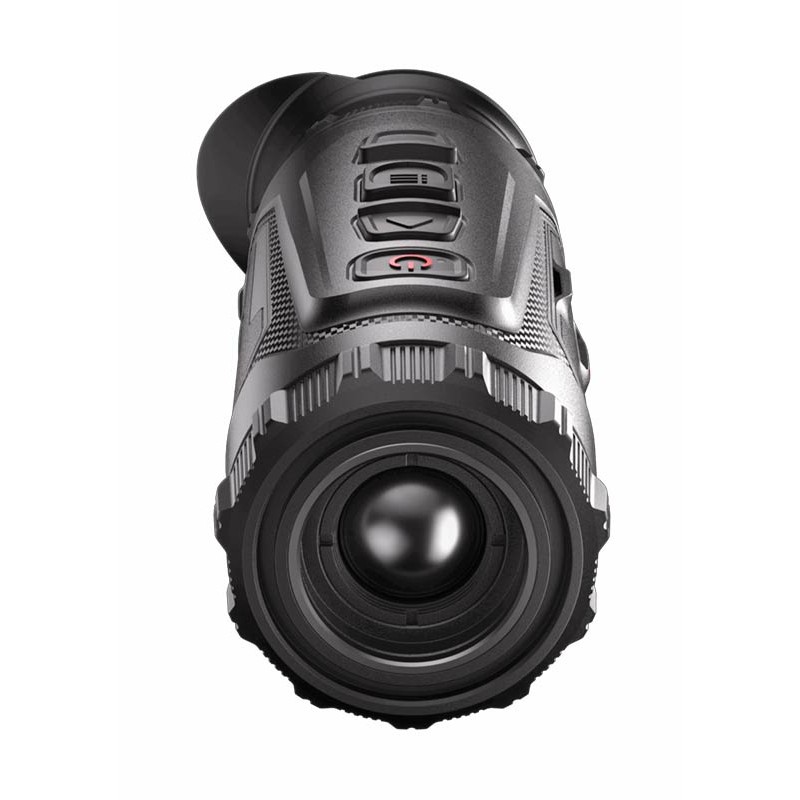

THERMAL MONOCULAR HIKMICRO LYNX LH25 3.0

Thermal Monocular Hikmicro Lynx Lh25 3.0

Name: THERMAL MONOCULAR HIKMICRO LYNX LH25 3.0
Brand: Hikmicro
SKU: 369743

Read more-Product description

1229€

Recommended retail price : €1229

Shipping within 24h

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

HIKLH25V3

€1229

Shipped within

24h

Shipped within

24h

€1229

Models & specificities Descriptive

Descriptive

Back to menu

With its 384×288 detector, 25 mm F1.0 lens and base magnification of 2,5×, the LH25
3.0 redefines performance in its class. Its field of view of 10,5° (18,4 m at 100 m) and its
detection range reaching up to 1 200 m make it a high-performance monocular, ideal for
long-distance observations and professional outdoor applications.

Key points
 High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0)
 25 mm F1.0 lens with detection range up to 1 200 m
 Image Pro 3.0 and Zoom Pro algorithms optimized by artificial intelligence
 HIKMICRO Shutterless Imaging System (HSIS) shutterless imaging technology
 OLED screen 0,49 pouce with a resolution of 1920 × 1080
 Replaceable and rechargeable 18650 battery, offering up to 4,5 hours of autonomy at -20°C
 Lightweight design (328,5 g) and compact format, easy to carry

Technical specifications
Thermal module
 Image sensor: VOx uncooled Focal Plane Arrays
 Maximum resolution: 384 × 288
 Frame rate: 50 Hz
 Pixel pitch: 12 μm
 Response band: 8 μm to 14 μm
 NETD: < 15 mK (@25°C, F#=1.0)
 Lens (focal length): 25 mm, F1.0
 Focus: focus ring
 Detection range: 1 200 m
 Minimum focus distance: 3 m
 Magnification: 2,5× – 20× (8× zoom)
 Field of view (H × V): 10,5° × 6,4° / 18,4 m × 11,2 m at 100 m

Image display
 Display: 1920 × 1080, 0,49 pouce, AMOLED

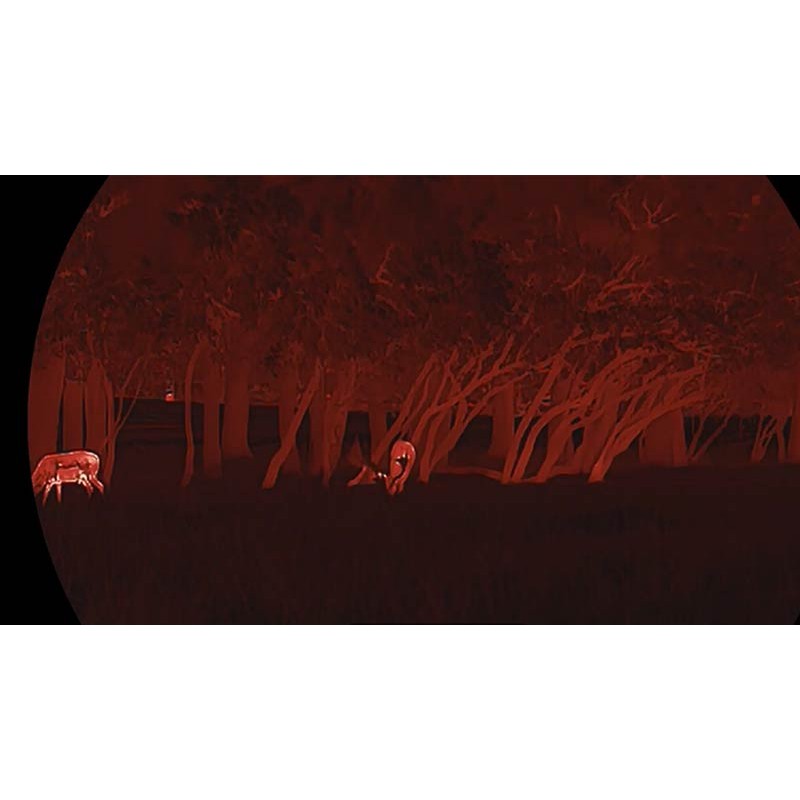

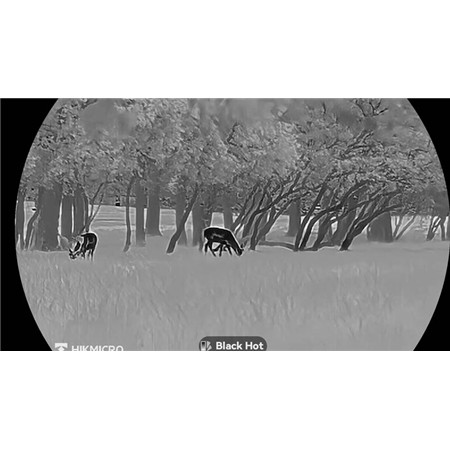

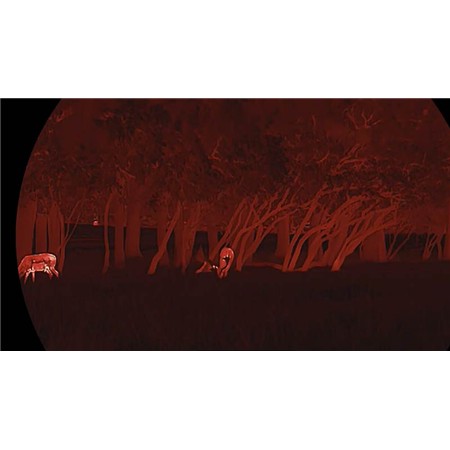

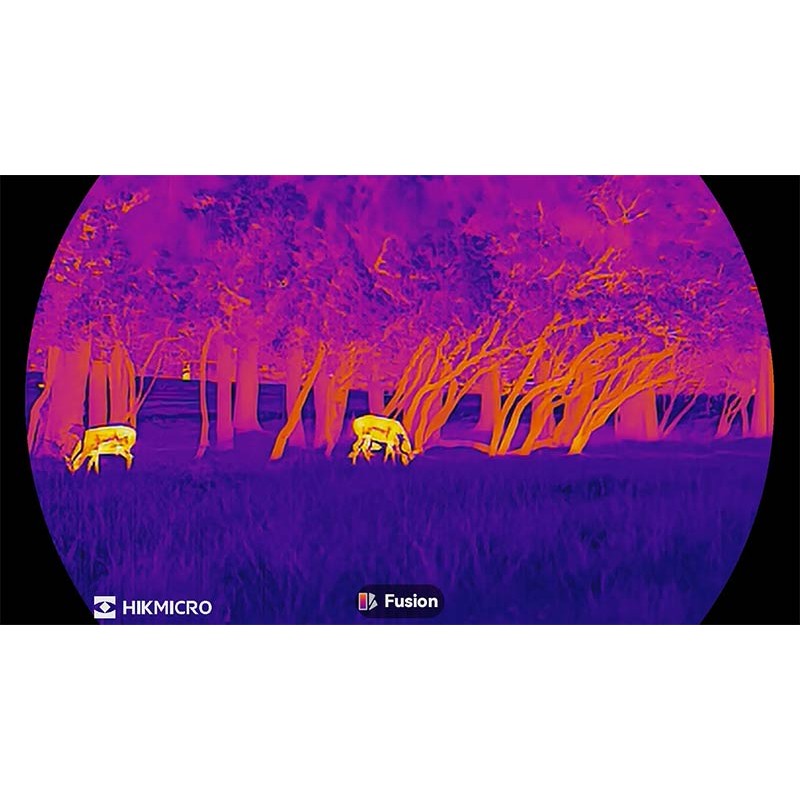

 Palettes: Black Hot, White Hot, Red Hot, Fusion, Monochrome Red, Monochrome Green
 Exit pupil: 6 mm
 Eye relief: 20 mm
 Diopter adjustment: -5D to +3D
 Brightness adjustment: yes
 Tone adjustment: cold / warm
 Contrast adjustment: yes
 Zoom Pro: yes
 HSIS (Shutterless Image System): yes
 Image Pro 3.0: yes
 Sync Pro: yes

System
 Video recording: yes
 Photo capture: yes
 Audio recording: yes
 Sleep mode: yes
 Internal memory: 64 GB (integrated eMMC)
 PIP (Picture in Picture): yes
 Wi-Fi hotspot: 2,4 GHz / 5 GHz bands
 Hotspot tracking: yes
 Telemetry: yes
 Local gallery: yes

Power
 Battery: replaceable and rechargeable 18650 Li-ion
 Battery life: 5 h continuous (hotspot enabled, @25°C) / 4,5 h (@-20°C)
 USB-C power: 5V DC, 2A (supports direct charging and external power
external)

General
 Ingress protection rating: IP67
 Dimensions: 158,4 × 53,6 × 49,5 mm
 Weight: 328,5 g (with battery)
 Operating temperature: -30°C to +45°C
 Humidity: ≤ 90 %
