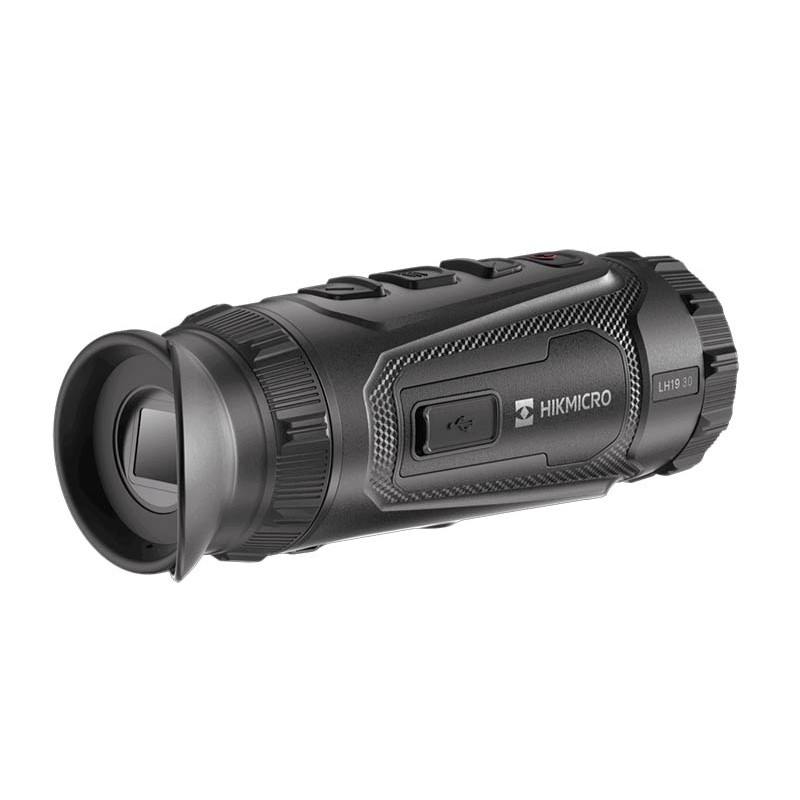

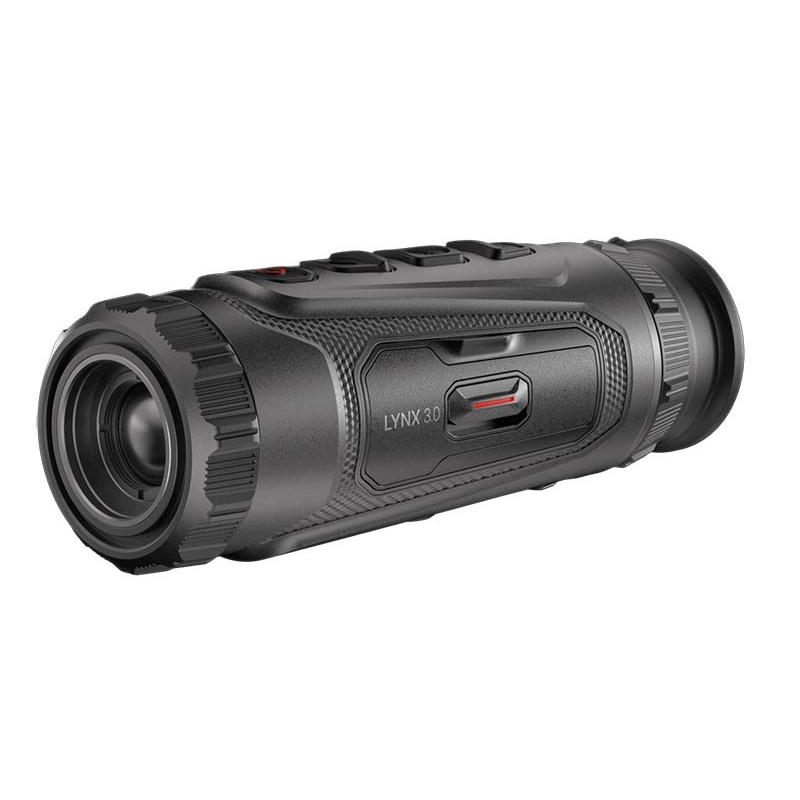

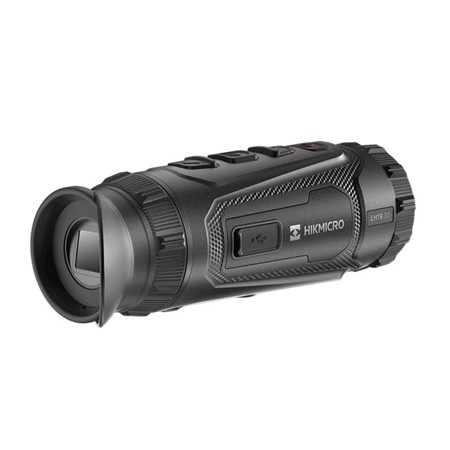

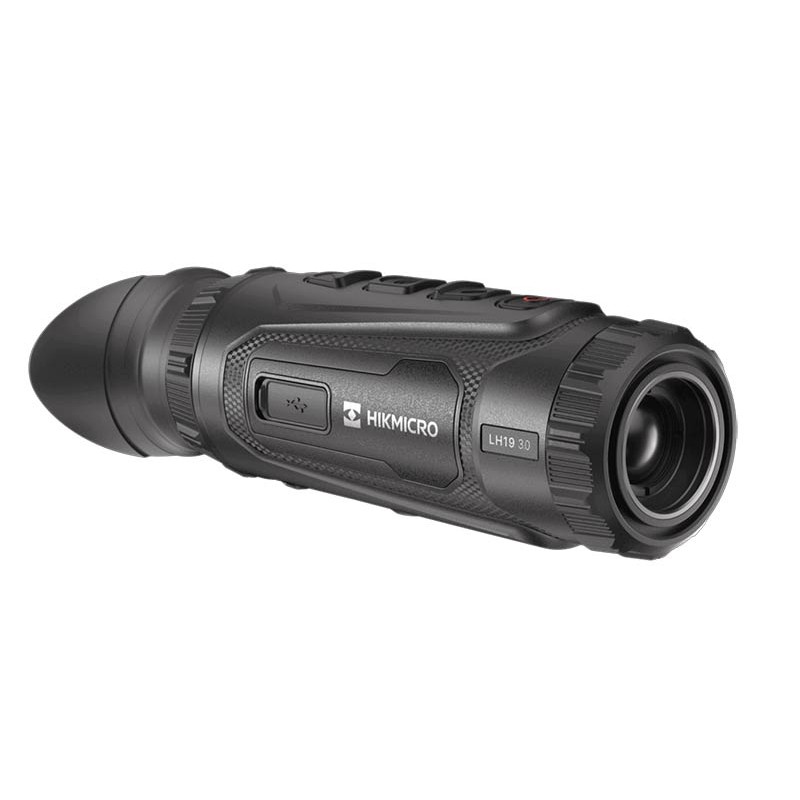

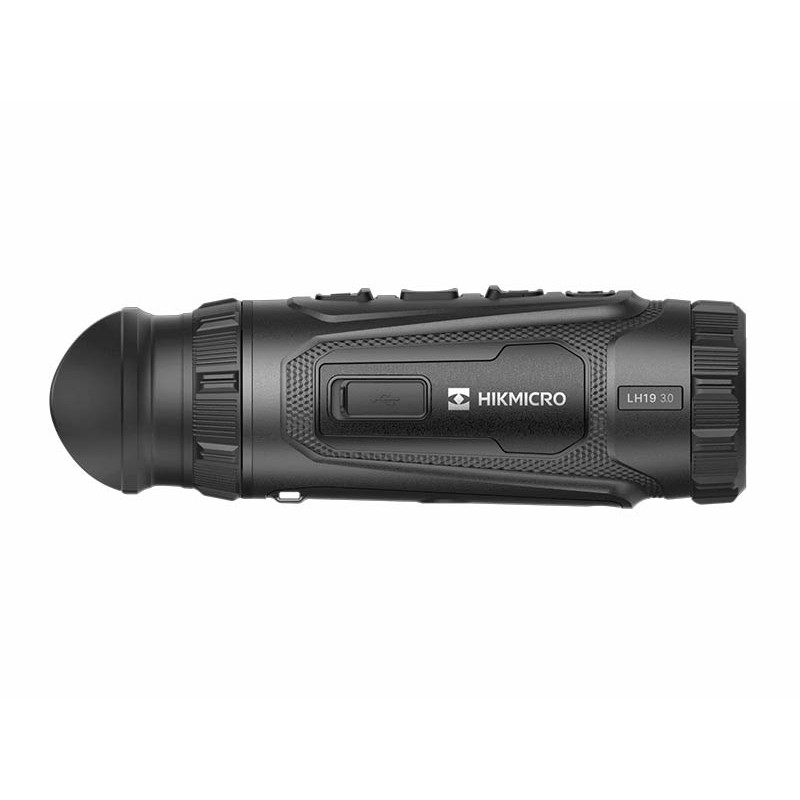

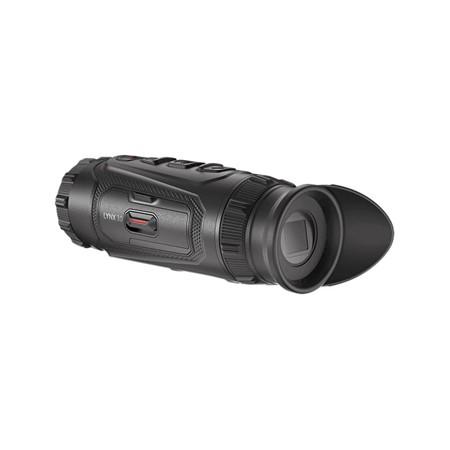

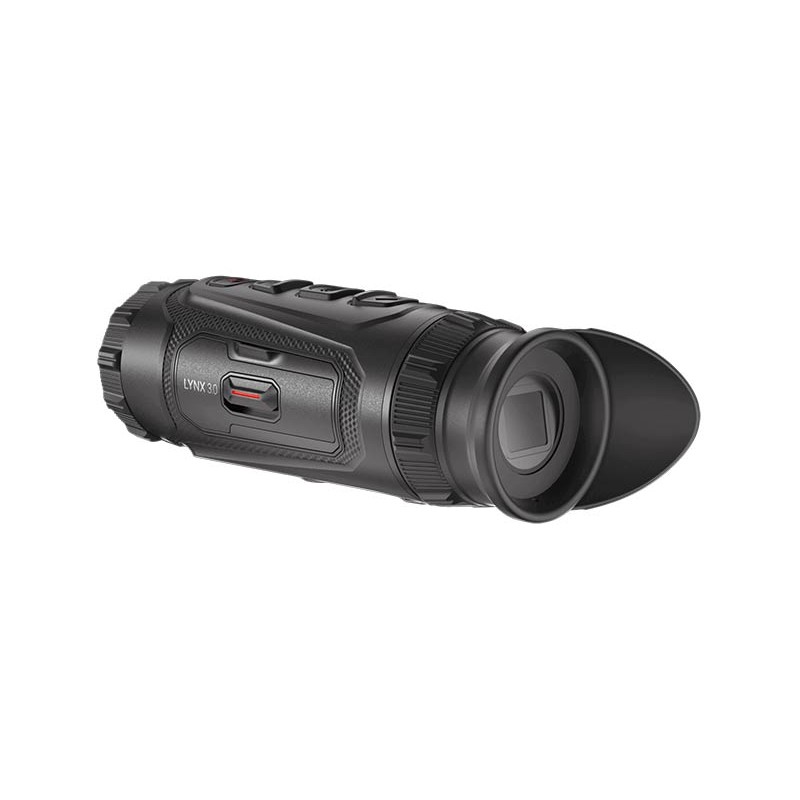

THERMAL MONOCULAR HIKMICRO LYNX LH19 3.0

Thermal Monocular Hikmicro Lynx Lh19 3.0

Name: THERMAL MONOCULAR HIKMICRO LYNX LH19 3.0
Brand: Hikmicro
SKU: 369740

Read more-Product description

1075.50€

Recommended retail price : €1075.50

Shipping within 24h

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

HIKLH19V3

€1075.50

Shipped within

24h

Shipped within

24h

€1075.50

Models & specificities Descriptive

Descriptive

Back to menu

With its base magnification of 1,9×, its 384×288 detector and its 19 mm F1.0 lens, the LH19 3.0
offers a versatile solution for the most demanding situations. It provides a wide field of view
of 13,8° (24,2 m at 100 m) and a detection range of up to 900 m, making it an ideal tool for
explorers and nature observers seeking a compact, high-performance device equipped
with shutterless imaging technology.

Key points
 High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0)
 19 mm F1.0 lens with detection range up to 900 m
 Image Pro 3.0 and Zoom Pro algorithms based on AI
 HIKMICRO Shutterless Imaging System (HSIS)
 0,49-inch OLED display with 1920 × 1080 resolution
 Replaceable and rechargeable 18650 battery offering up to 4,5 hours of battery life at -20°C
 Lightweight design (331 g) and pocket-sized format

Technical specifications
Thermal module
 Image sensor: uncooled VOx Focal Plane Arrays
 Maximum resolution: 384 × 288
 Frame rate: 50 Hz
 Pixel pitch: 12 μm
 Spectral response band: 8 μm to 14 μm
 NETD: < 15 mK (@25°C, F#=1.0)
 Lens (focal length): 19 mm, F1.0
 Focus: focus ring
 Detection range: 900 m
 Minimum focus distance: 3 m
 Magnification: 1,9× – 15,2× (zoom 8×)
 Field of view (H × V): 13,8° × 8,4° / 24,2 m × 14,7 m at 100 m

Image display
 Screen: 1920 × 1080, 0,49 inch, AMOLED

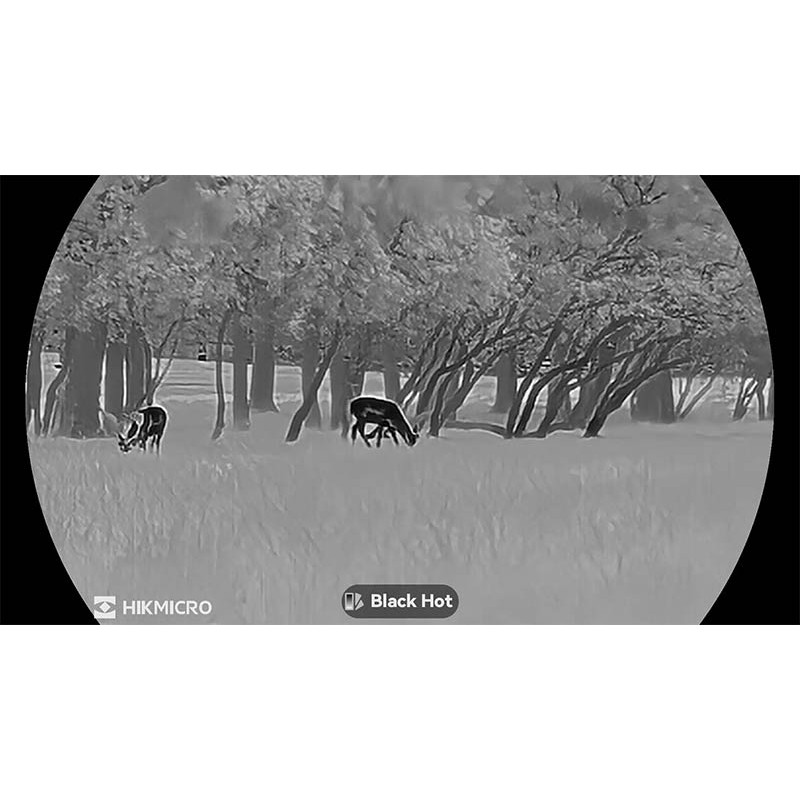

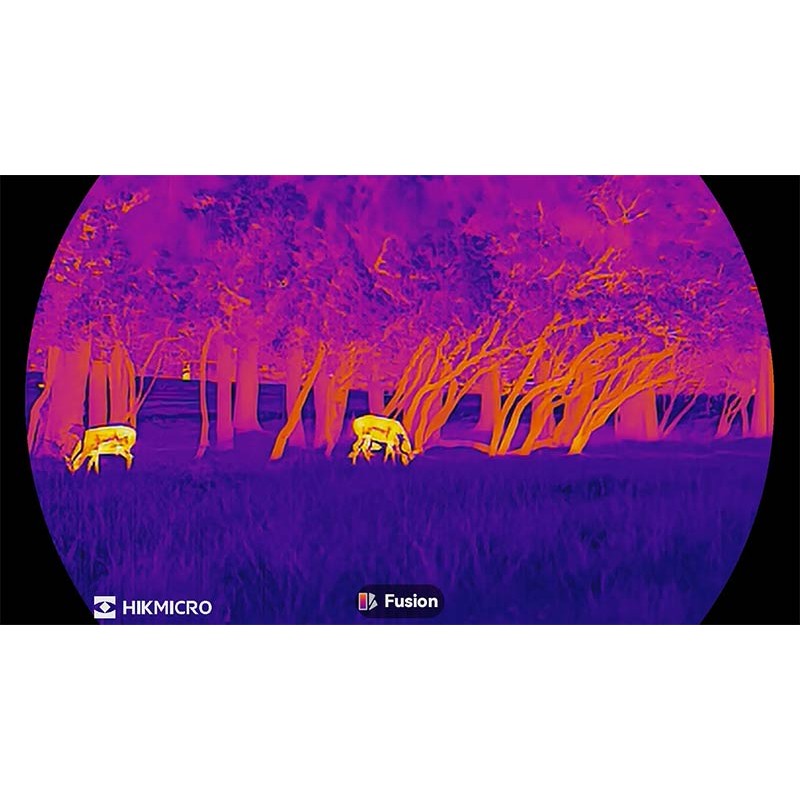

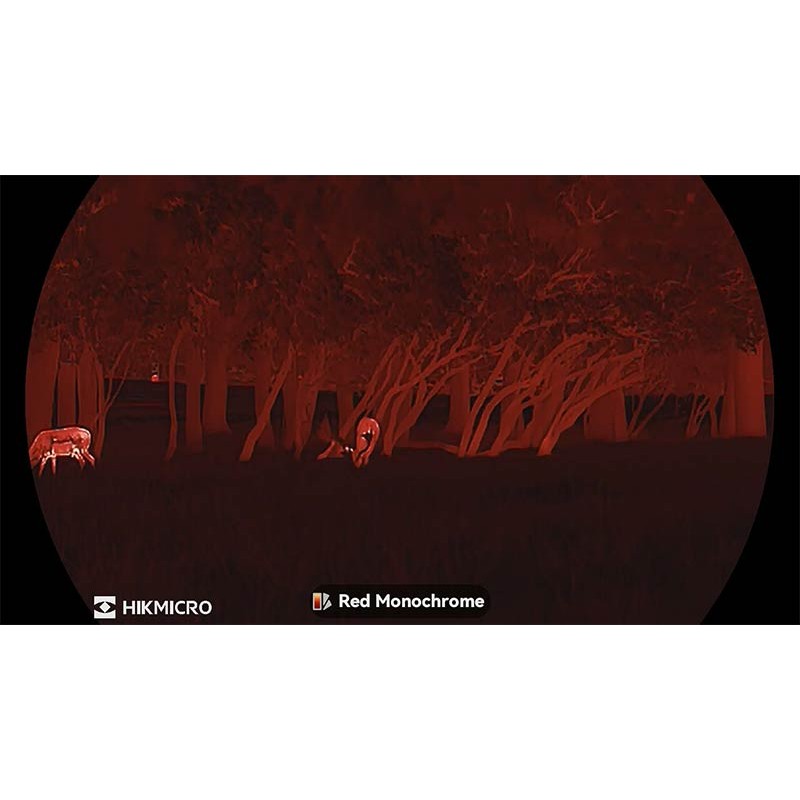

 Palettes: Black Hot, White Hot, Red Hot, Fusion, Monochrome Red, Monochrome Green
 Exit pupil: 6 mm
 Eye relief: 20 mm
 Diopter adjustment: -5D to +3D
 Brightness adjustment: yes
 Tone setting: cold / warm
 Contrast adjustment: yes
 Zoom Pro: yes
 HSIS (Shutterless Image System): yes
 Image Pro 3.0: yes
 Sync Pro: yes

System
 Video recording: yes
 Photo capture: yes
 Audio recording: yes
 Standby mode: yes
 Internal memory: 64 GB (built-in EMMC)
 PIP (Picture in Picture): yes
 Wi-Fi hotspot: 2,4 GHz / 5 GHz bands
 Hotspot tracking: yes
 Telemetry: yes
 Local gallery: yes

Power
 Battery: replaceable and rechargeable Li-ion 18650
 Battery life: 5 h continuous (hotspot enabled, @25°C) / 4,5 h (@-20°C)
 USB-C power: 5V DC, 2A (supports direct charging and external power)

General
 Protection rating: IP67
 Dimensions: 158,4 × 53,6 × 49,5 mm
 Weight: 331 g (with battery)
 Operating temperature: -30°C to +45°C
 Humidity: ≤ 90 %
