THERMAL MONOCULAR HIKMICRO LYNX LH35 3.0

Thermal Monocular Hikmicro Lynx Lh35 3.0

Name: THERMAL MONOCULAR HIKMICRO LYNX LH35 3.0
Brand: Hikmicro
SKU: 369744
Rating: 5 (1 reviews)

Read more-Product description

(1 reviews)

1382.90€

Recommended retail price : €1382.90

Shipping within 24h

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

HIKLH35V3

€1382.90

Shipped within

24h

Shipped within

24h

€1382.90

Models & specificities Descriptive Reviews

Descriptive

Back to menu

With its base magnification of 3,4×, its 384×288 detector and its 35 mm F1.0 lens, the LH35
3.0 offers unparalleled performance for professional medium- and long-range observation. Its 7,5° field of view (13,1 m at 100 m) and detection range of up to 1
800 m ensure highly accurate image reproduction, even in open spaces. This high-end model is aimed at demanding users seeking exceptional image quality and a proven shutterless imaging technology.

Key points
 High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0)
 35 mm F1.0 lens with detection range up to 1 800 m
 Image Pro 3.0 and Zoom Pro algorithms optimized by artificial intelligence
 HIKMICRO Shutterless Imaging System (HSIS) technology
 0,49-inch OLED screen with a 1920 × 1080 resolution
 Rechargeable and replaceable 18650 battery, providing up to 4,5 hours of runtime at -20°C
 Compact and lightweight design (354,5 g) for optimal portability

Technical specifications
Thermal module
 Image sensor: Uncooled VOx Focal Plane Arrays
 Maximum resolution: 384 × 288
 Frame rate: 50 Hz
 Pixel pitch: 12 μm
 Response band: 8 μm to 14 μm
 NETD: < 15 mK (@25°C, F#=1.0)
 Lens (focal length): 35 mm, F1.0
 Focus: focus ring
 Detection range: 1 800 m
 Minimum focus distance: 3,5 m
 Magnification: 3,4× – 27,2× (8× zoom)
 Field of view (H × V): 7,5° × 4,6° / 13,1 m × 8,0 m at 100 m

Image display
 Display: 1920 × 1080, 0,49 inch, AMOLED

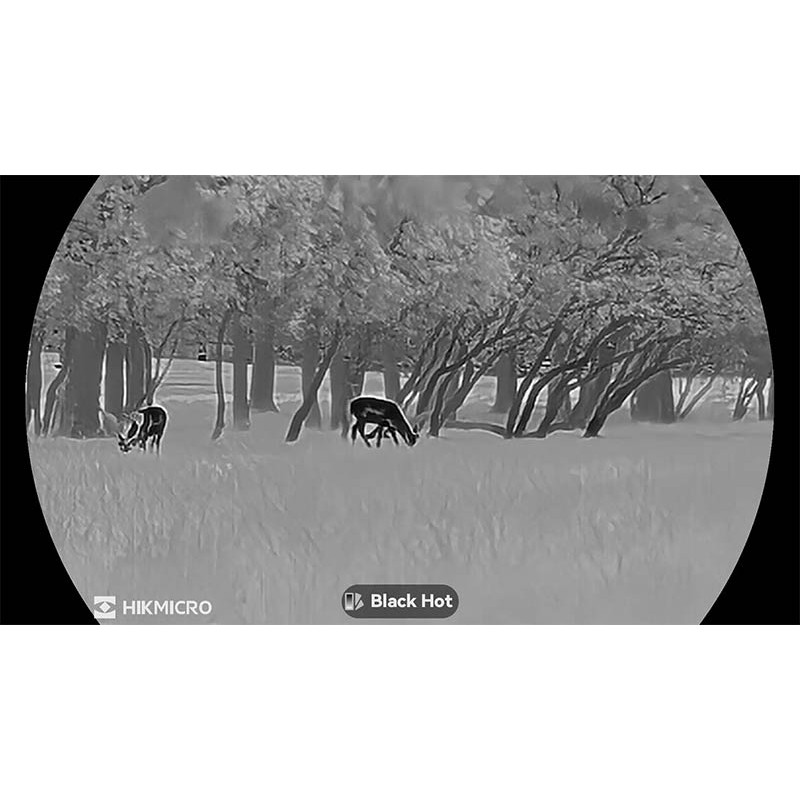

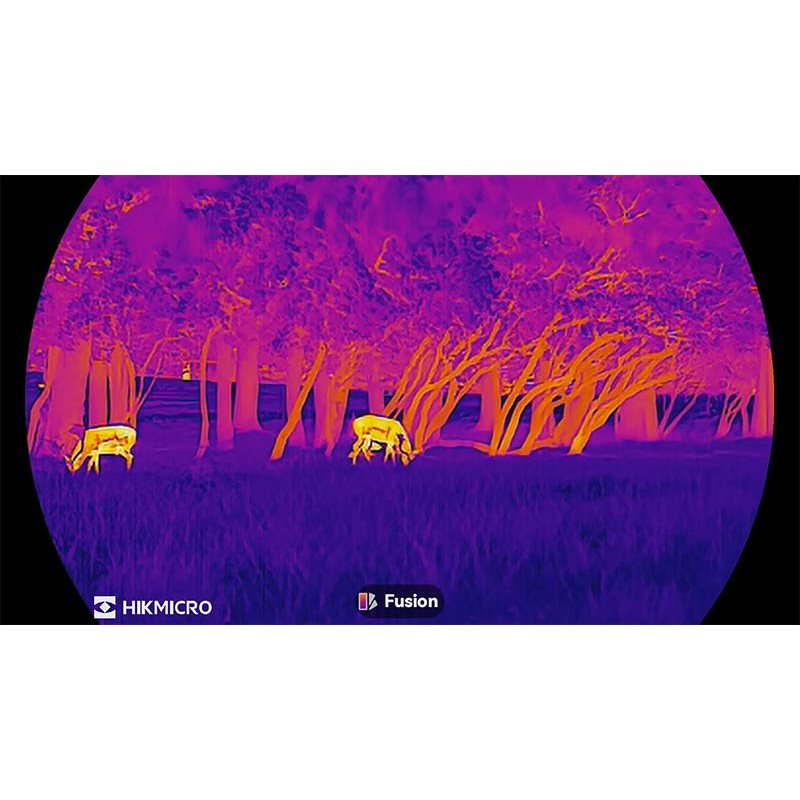

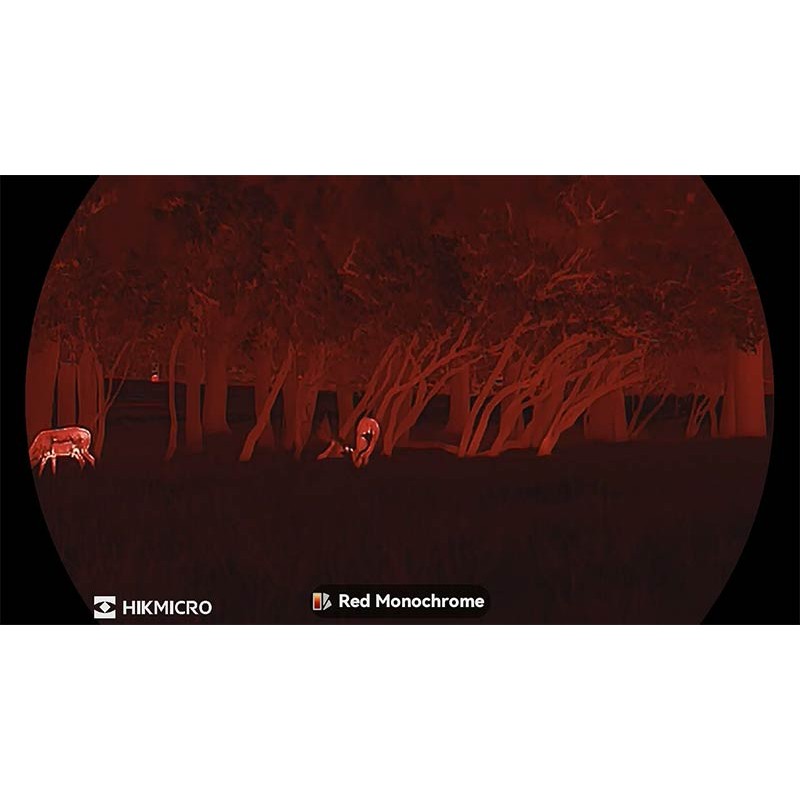

 Palettes: Black Hot, White Hot, Red Hot, Fusion, Monochrome Red, Monochrome Green
 Exit pupil: 6 mm
 Eye relief: 20 mm
 Diopter adjustment: -5D to +3D
 Brightness adjustment: yes
 Tone setting: cold / warm
 Contrast adjustment: yes
 Zoom Pro: yes
 HSIS (Shutterless Image System): yes
 Image Pro 3.0: yes
 Sync Pro: yes

System
 Video recording: yes
 Photo capture: yes
 Audio recording: yes
 Standby mode: yes
 Internal memory: 64 GB (integrated EMMC)
 PIP (Picture in Picture): yes
 Wi‑Fi hotspot: 2.4 GHz / 5 GHz bands
 Hotspot tracking: yes
 Telemetry: yes
 Local gallery: yes

Power
 Battery: Replaceable and rechargeable 18650 Li-ion
 Runtime: 5 h continuous (hotspot enabled, @25°C) / 4,5 h (@-20°C)
 USB-C power: 5V DC, 2A (supports pass-through charging and external power)

General
 Ingress protection: IP67
 Dimensions: 169,6 × 53,6 × 49,5 mm
 Weight: 354,5 g (with battery)
 Operating temperature: -30°C to +45°C
 Humidity: ≤ 90 %
