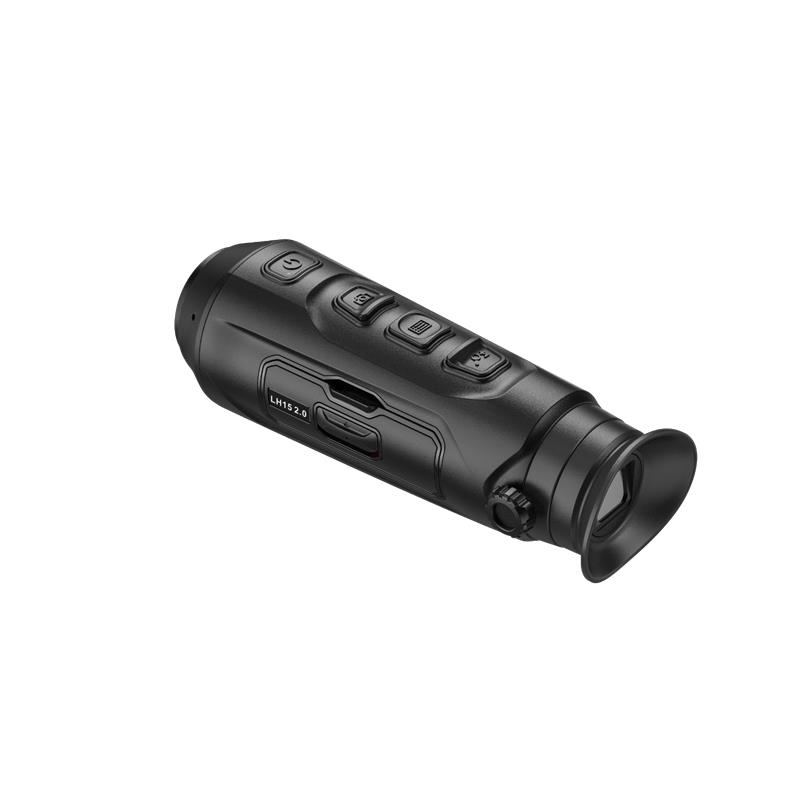

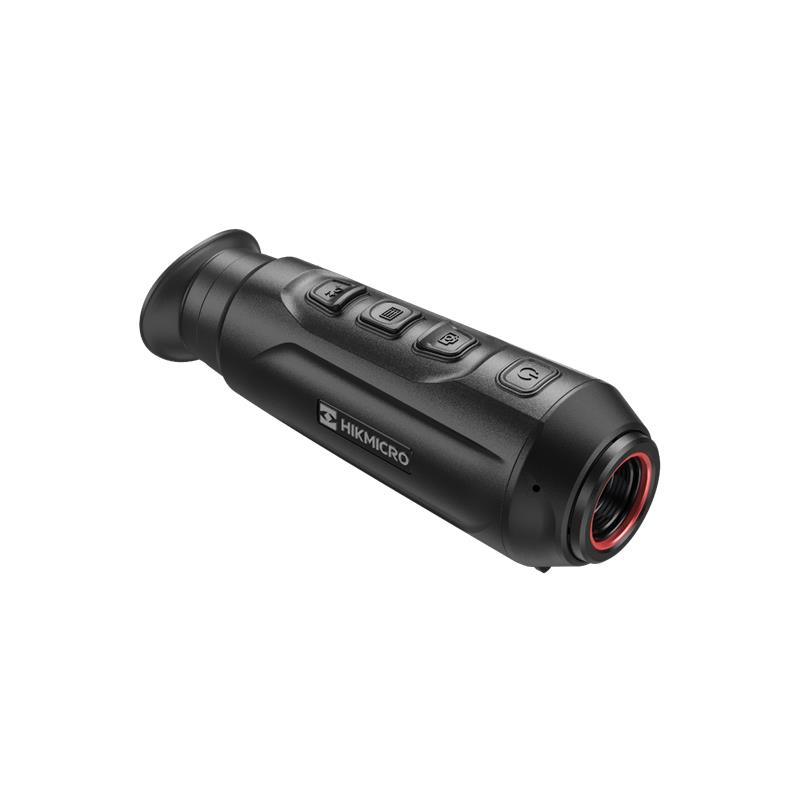

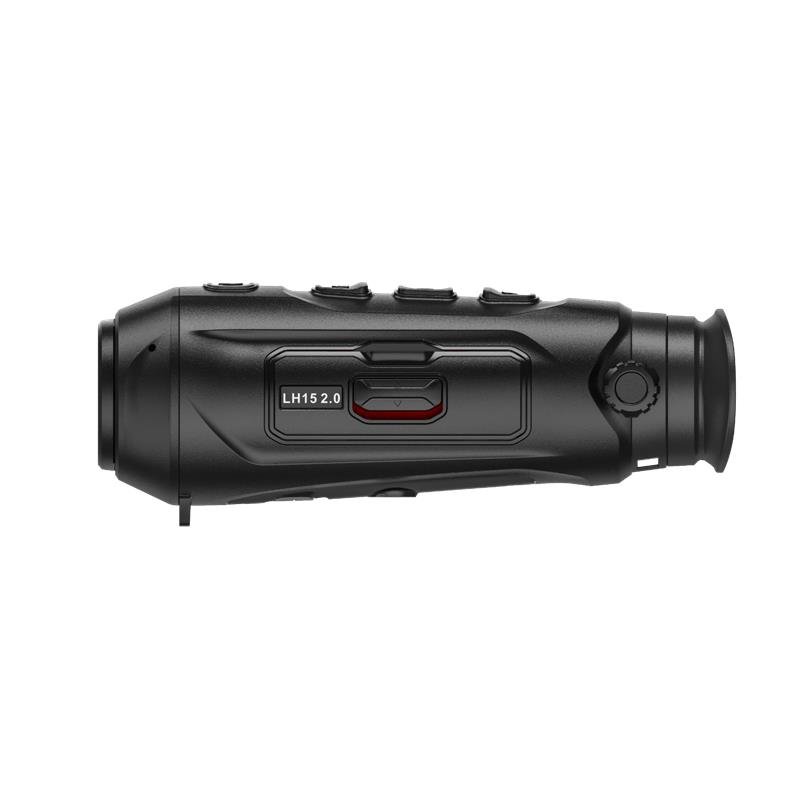

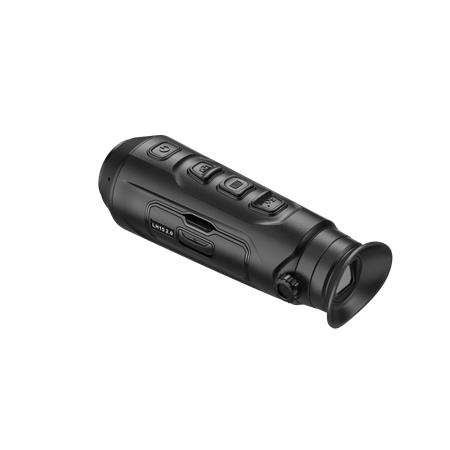

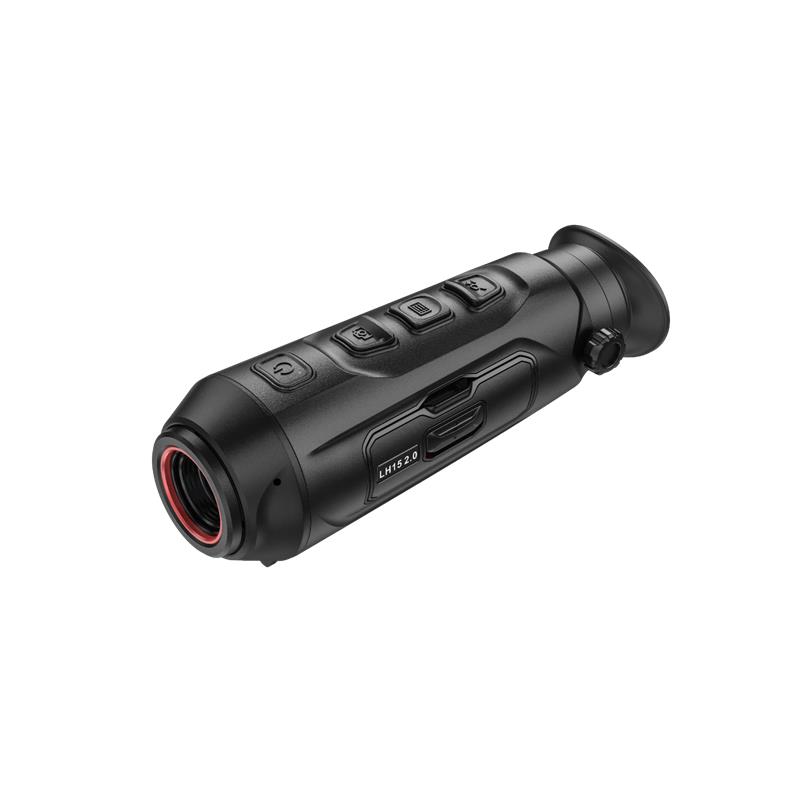

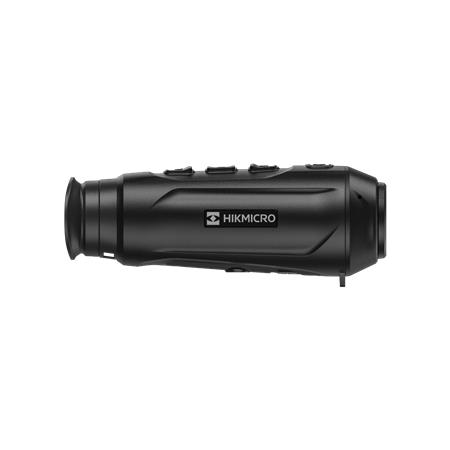

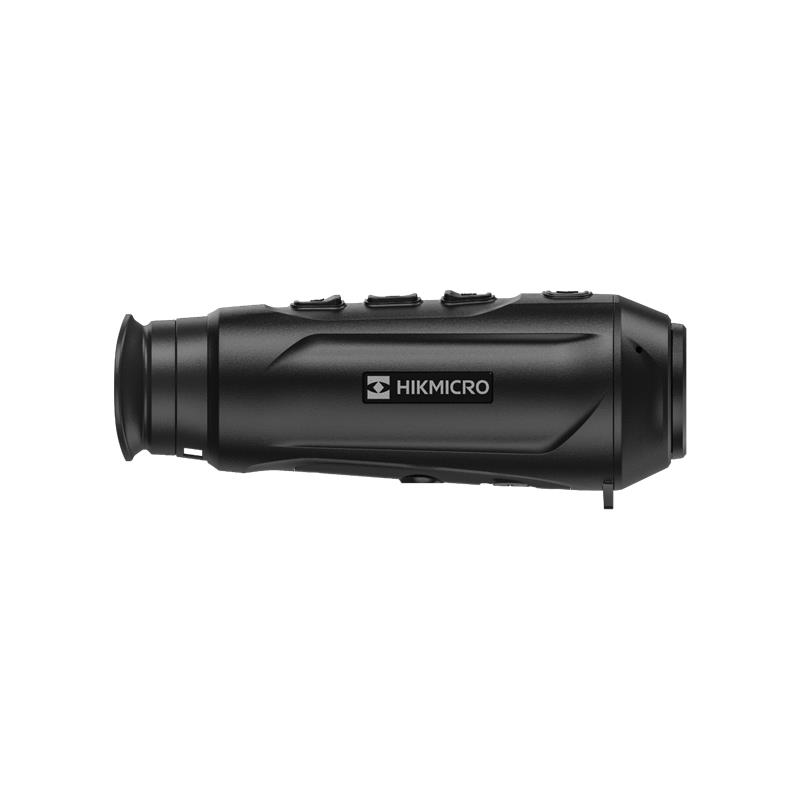

Thermal Imaging Monocular Hikmicro Lynx Pro Lh15 2.0

Read more-Product description

Hikmicro
1075.50
Recommended retail price : €1075.50
Alma
Pay it in 3 or 4 interest-free payments
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Weight (g)
Dimensions (mm)
Price inc VAT
HIKLH15V2
€1075.50
272
164 x 56 x 60.8
€1075.50
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
With an impressive field of view extending 43 meters, equipped with 384 detectors and featuring a pixel pitch of 12 µm, NETD < 20 mK, the LH15 2.0 is designed to excite every user. Moreover, field users will also appreciate its remarkable detection range, reaching up to 750 meters.

Main features

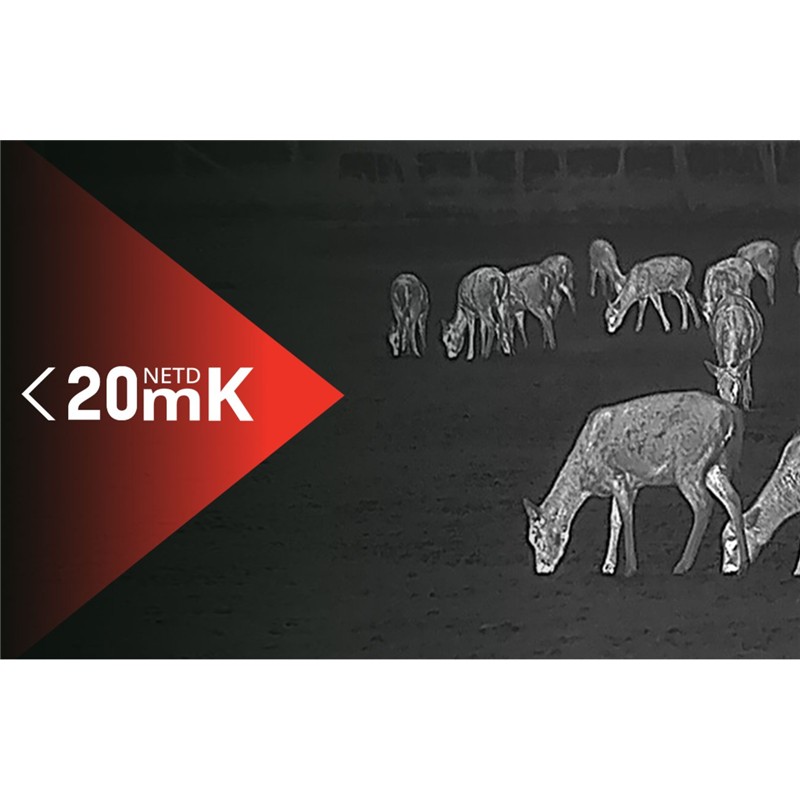

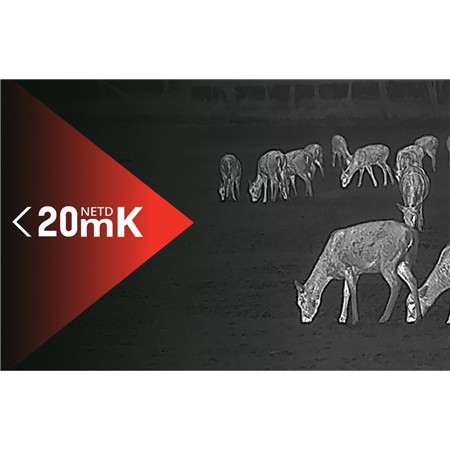

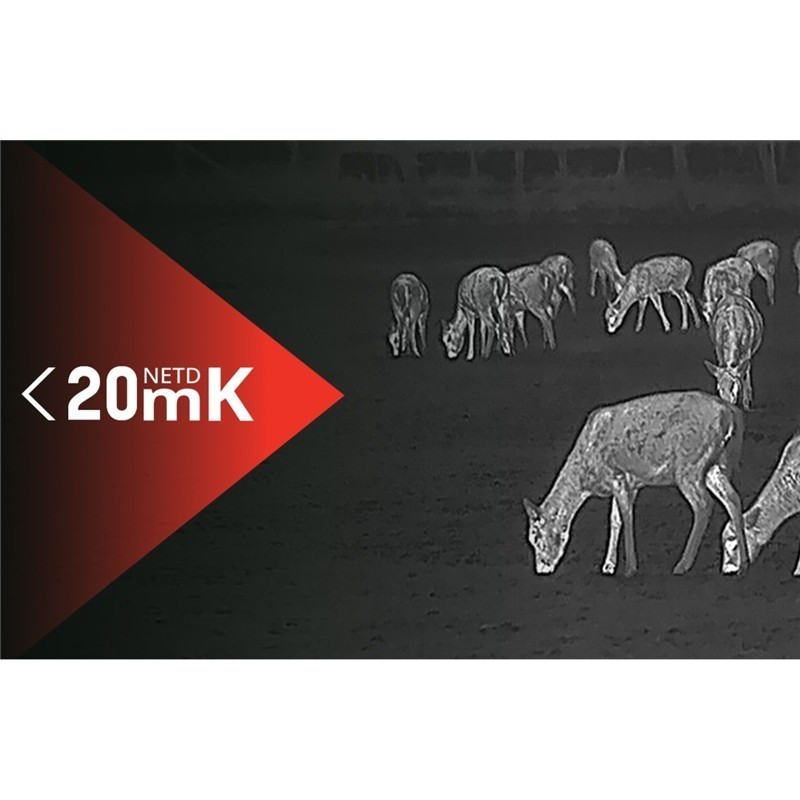

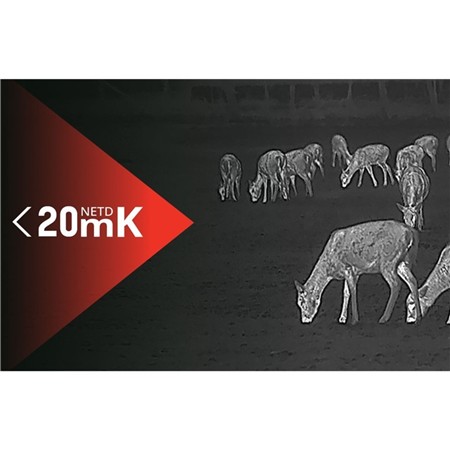

• High-sensitivity thermal module NETD < 20 mK (@25°C, F# = 1,0)
• Resolution 384 × 288 with 12?m detector
• 0,39-inch OLED display with 1024 × 768 resolution

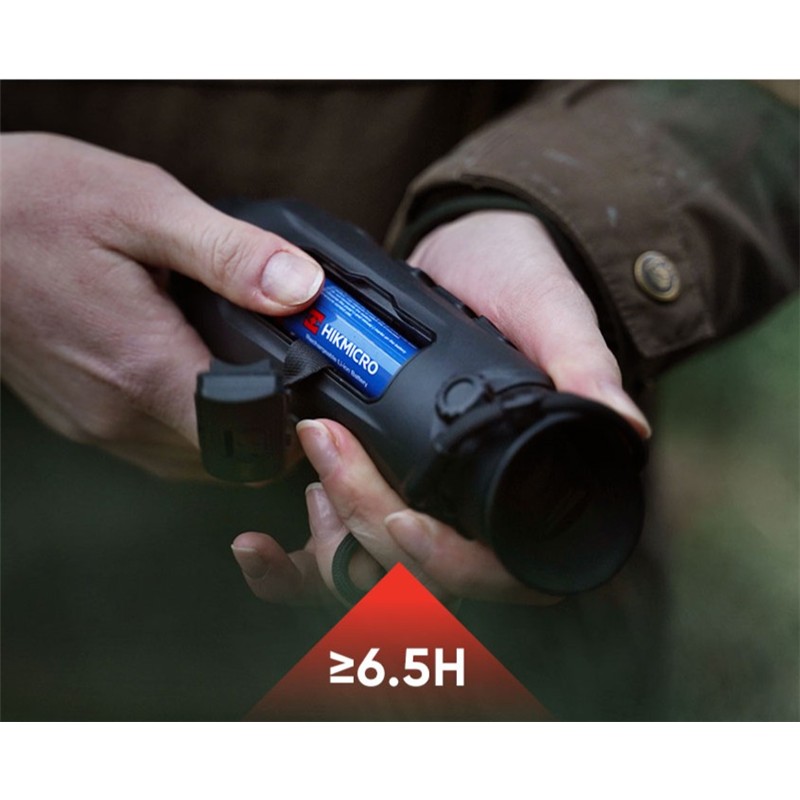

• Removable and rechargeable battery

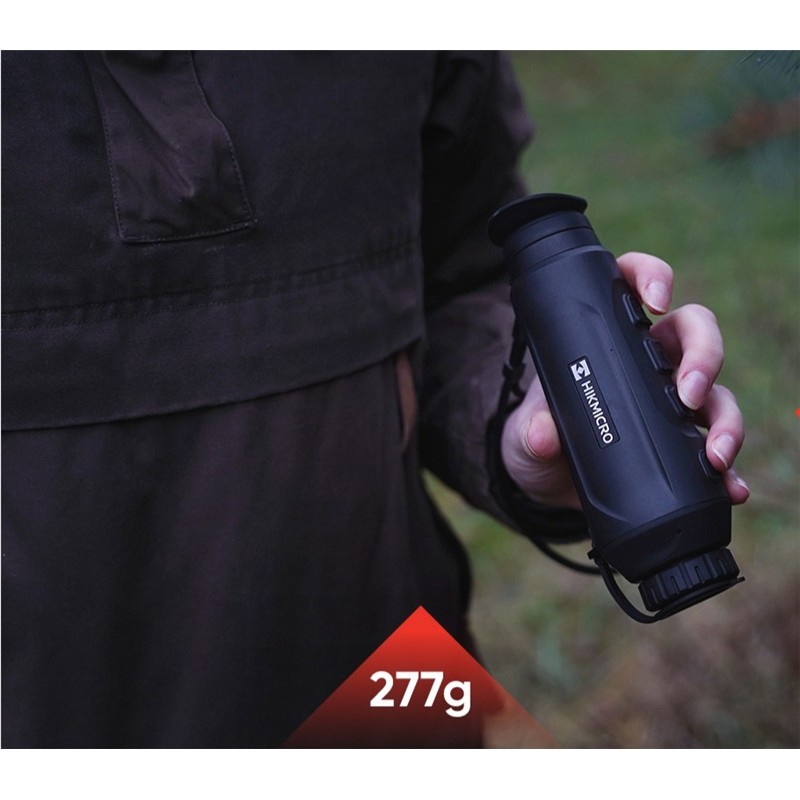

• Lightweight 270 g, with a compact and ergonomic design
• Up to 6,5 hours of continuous operation

Warranty
• Battery: 1 year
• Product: 3 years
• Thermal sensor: 10 years

Specifications
Thermal module
• Image sensor: Uncooled vanadium oxide (Vox) focal plane arrays
• Resolution: 384 × 288
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Response wavelength band: 8 μm to 14 μm
• NETD: < 20 mK (25°C, F# = 1.0)
• Lens (focal length): 15 mm, F1.0
• Detection range: 750 m
• Minimum focus distance: 1.5 m
• Zoom: 1.4x to 11.2x (8x)
• Field of view (H × V), Degrees/M @100 M: 17.5° × 13.1°/30.8 m × 23.0 m

Image display
• Monitor: 1024 × 768, 0.39-inch, OLED

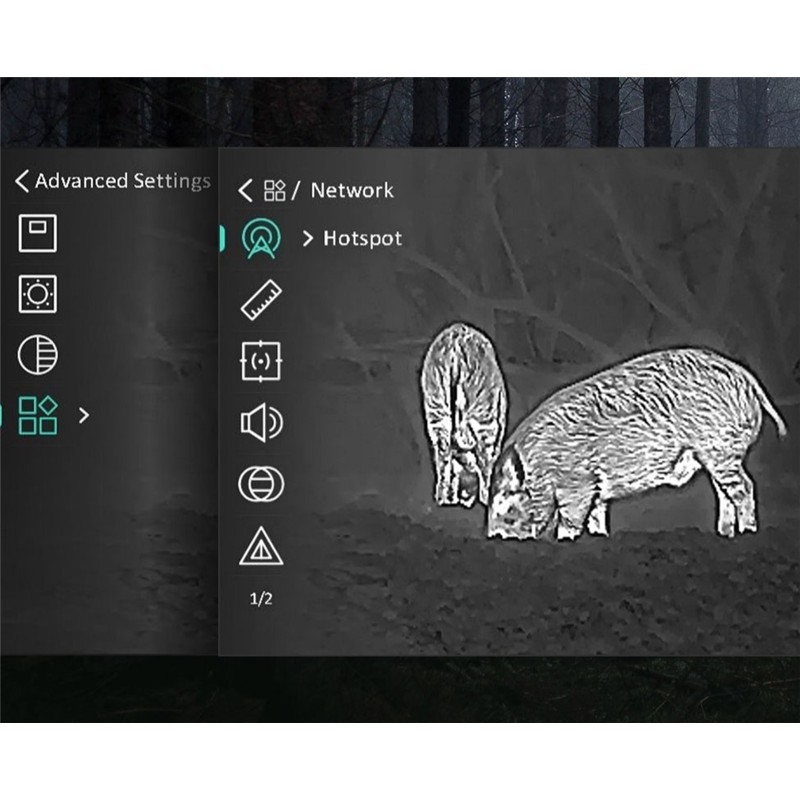

• Image mode: Black hot, White hot, Red hot, Fusion
• FFC mode (Image correction): Auto, Manual, External correction
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Diopter (Range): -5D to +3D
• Brightness adjustment: Yes
• Tone adjustment: Cold, Warm
• Contrast adjustment: Yes

System
• Video recording: Yes
• Photo recording: Yes
• Audio recording: Yes
• Standby mode: Yes
• Storage: Built-in EMMC (16Go)
• PIP: Yes
• Wi-Fi (streaming): Yes
• Hot spot tracking: Yes
• Range measurement: Yes

Power
• Battery type: Removable and rechargeable battery
• Battery runtime: 6,5 hours of continuous operation with CVBS and Wi-Fi enabled (@

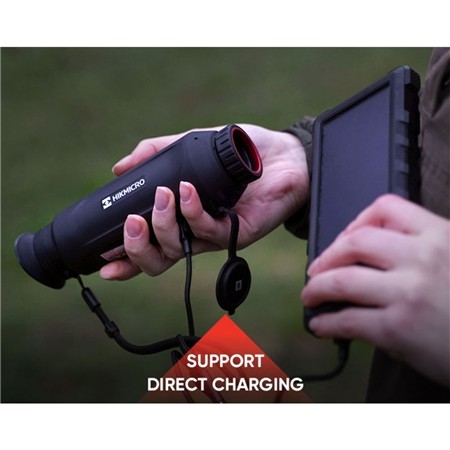

• Type-C power supply: 5 VDC, 2 A. Supports external power

General
• Protection rating IP67
• Dimensions 164.0 mm × 56.0 mm× 60.8 mm
• Operating temperature -30°C to 55°C
• Weight 272 g without battery

Features
• Waterproof: IP67
• Thermal sensor resolution (px): 384x288
• Field of view at 100m (m): 30.8 m × 23.0 m
• Rechargeable: Yes
• Dimensions (in mm): 164.0 mm × 56.0 mm× 60.8 mm
• Weight (kg): 0.272

HIKMICRO FEATURES GUIDE
