THERMAL VISION MONOCULAR HIKMICRO LYNX PRO LE10S

Thermal Vision Monocular Hikmicro Lynx Pro Le10s

Name: THERMAL VISION MONOCULAR HIKMICRO LYNX PRO LE10S
Brand: Hikmicro
SKU: 306722
Rating: 5 (2 reviews)

Read more-Product description

(2 reviews)

491€

Recommended retail price : €491

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Weight (g)

Dimensions (mm)

Price inc VAT

HIKLE10S
(Unavailable)

€491

260

158.3 x 61 x 57

€491

Models & specificities Descriptive Reviews

Descriptive

Back to menu

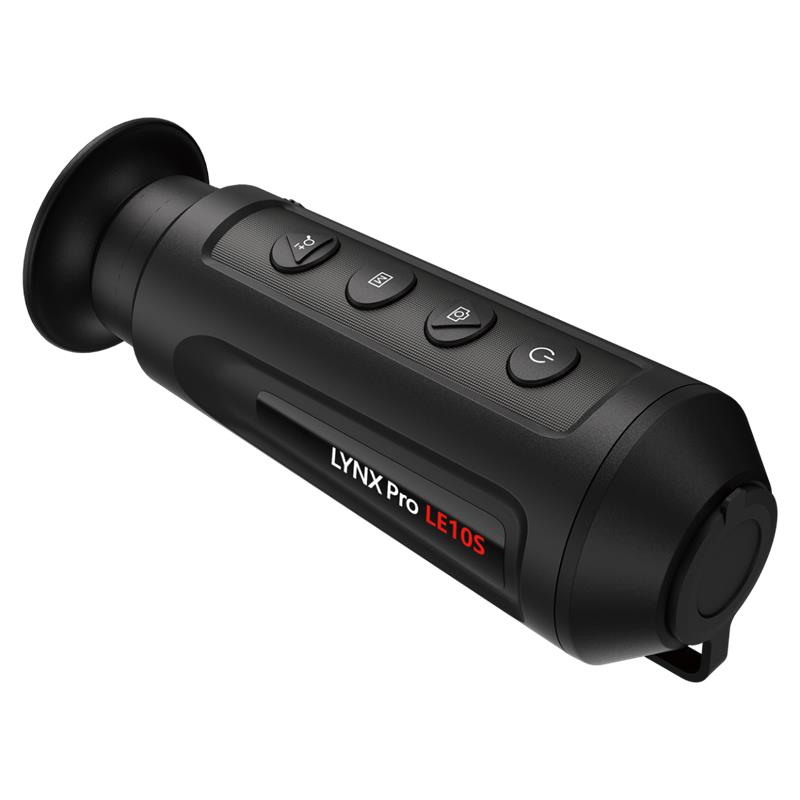

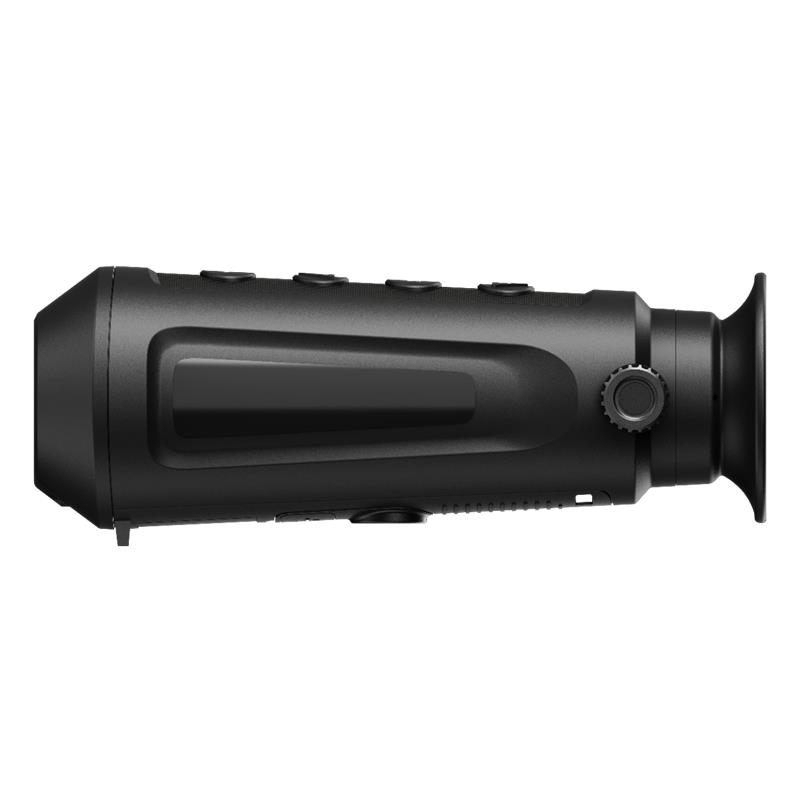

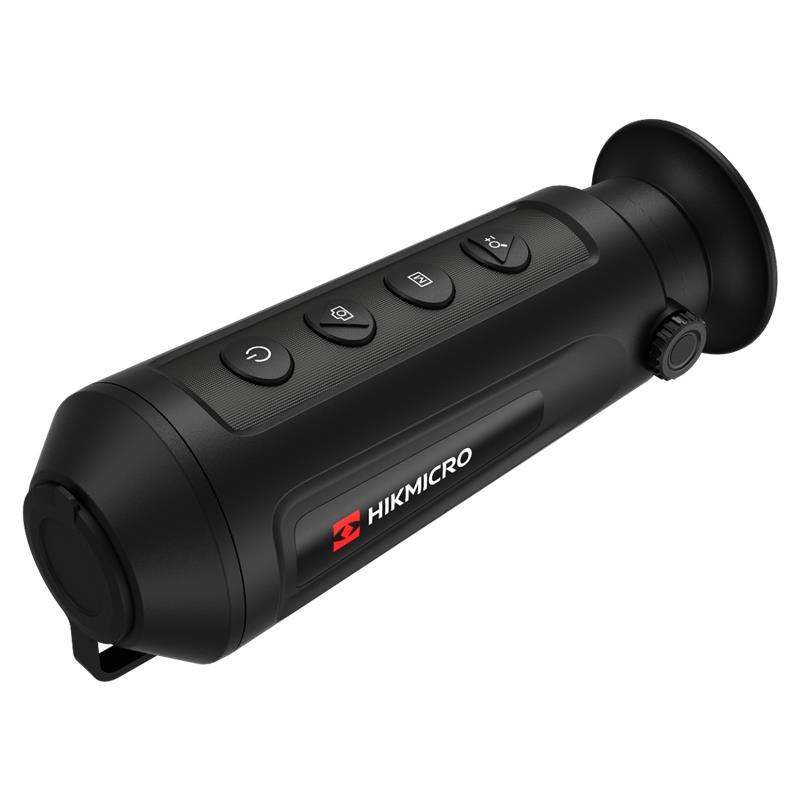

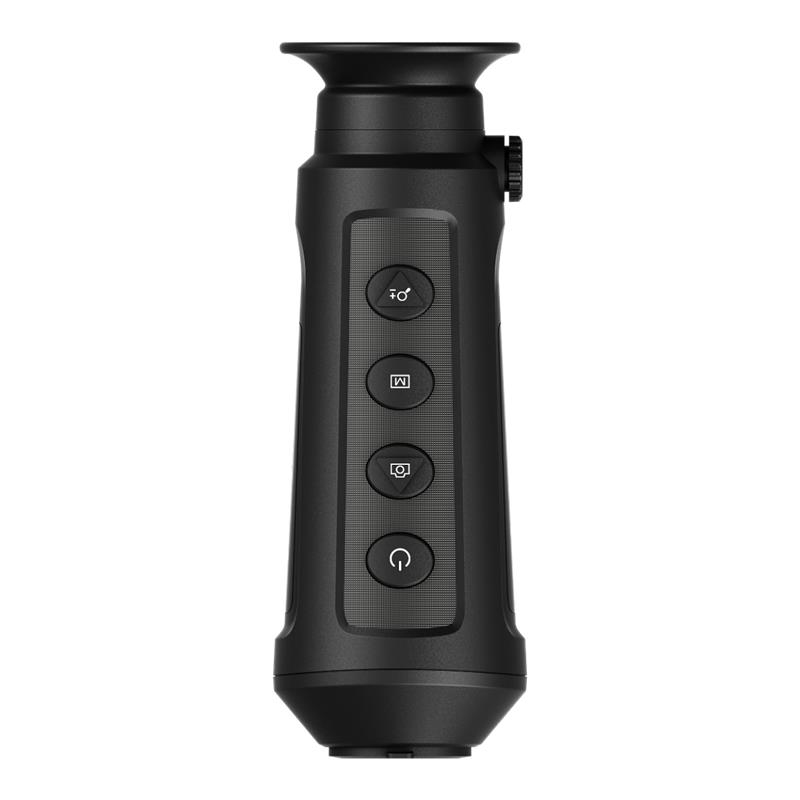

The HIKMICRO LYNX S LE10S thermal monocular is equipped with a 256 × 192 detector and an 800 × 600 OLED display. It supports observation functions, Wi‑Fi hotspot, etc. The built-in high-sensitivity thermal detector provides clear images in challenging conditions. The monocular is primarily applied to scenarios such as hunting, hiking, search and rescue, etc.

Key features :
• High-sensitivity thermal module with resolution 256 × 192
• NETD < 35 mK (@25°C, F# = 1,0)
• Image processing technology: Adaptive AGC, DDE, 3D DNR
• 0,32-inch OLED display with a resolution of 800 × 600
• Built-in rechargeable lithium battery
• Up to 8 hours of continuous operation

Warranty
• Battery: 1 year
• Product: 3 years
• Thermal sensor: 10 years

Specifications
Thermal module
• Image sensor: Uncooled vanadium oxide (Vox) focal plane arrays
• Resolution: 256 × 192
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Response wavelength band: 8 μm to 14 μm
• NETD: < 35 mK (25°C, F# = 1.0)
• Lens (focal length): 9.7 mm, F1.0
• Detection range: 500 m
• Focus mode: Manual focus
• Minimum focus distance: 4 m
• Zoom: 1.5× to 12.0× (8×)
• Field of view (H × V), Degrees/M @100 M: 18.0° × 13.6° / 31.7 m × 23.8 m

Image display
• Monitor: 800 × 600, 0.32-inch, OLED
• Image mode: Black hot, white hot, red hot, fusion
• FFC mode (Image correction): Auto, Manual, External correction
• Exit pupil: 20 mm
• Eye relief: 6 mm
• Diopter (Range): -5D to +4D
• Brightness adjustment: Yes
• Tone adjustment: Cool, Warm
• Contrast adjustment: Yes

System
• Video recording: Yes
• Photo capture: Yes
• Audio recording: Yes
• Sleep mode: Yes
• Storage: Built-in EMMC (8Go)
• PIP: Yes
• Wi-Fi (streaming): Yes
• Hot-spot tracking: Yes
• Range measurement: Yes

Power
• Battery type: Rechargeable lithium battery
• Battery operating time:
- 8 hours of continuous operation with CVBS and Wi-Fi disabled
- 6 hours of continuous operation with CVBS and Wi-Fi enabled (@2
• Type-C power supply: 5 VDC, 2 A. Supports external power

General
• IP rating IP67
• Dimensions 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”)
• Operating temperature -20°C to 55°C (-4°F to 131°F)
• Weight 260 g (0.57 lbs)

Specifications
• Waterproof: IP67
• Thermal sensor resolution (px): 256x192
• Field of view at 100m (m): 31.7 m × 23.8 m
• Rechargeable: Yes
• Dimensions (mm): 158.3 mm × 61 mm × 57 mm
• Weight (kg): 0.260
