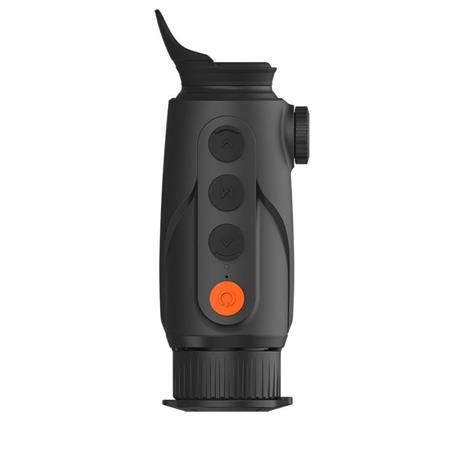

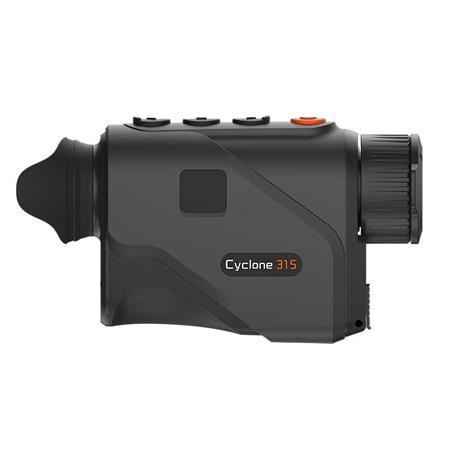

Thermal Monocular Thermtec Cyclone 315

Read more-Product description

Thermtec
1024
Recommended retail price : €1024
Alma
Pay it in 3 or 4 interest-free payments
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Price inc VAT
512CYCLONE315
€1024
€1024
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu

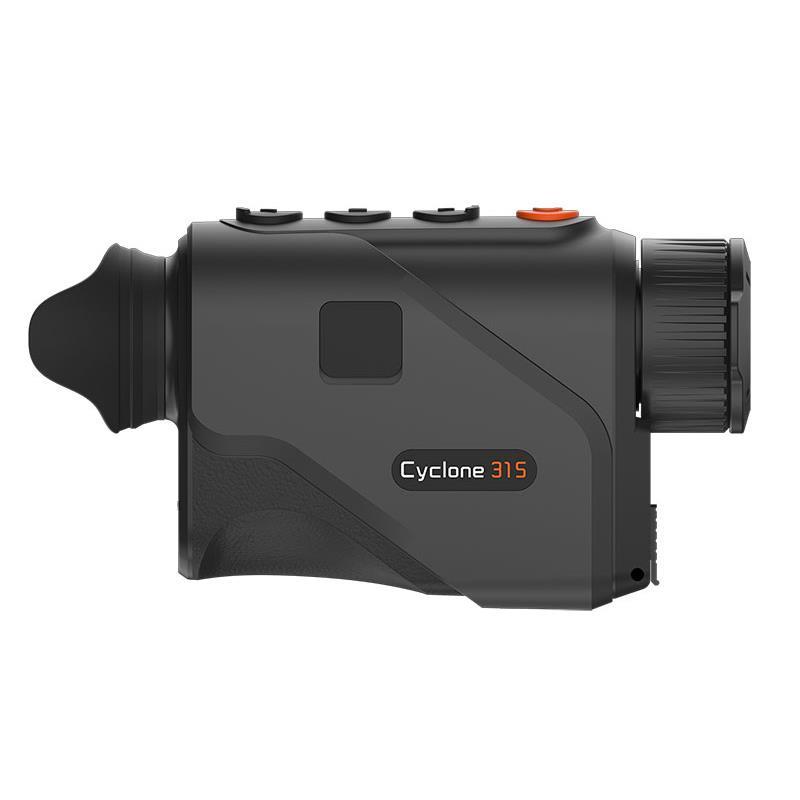

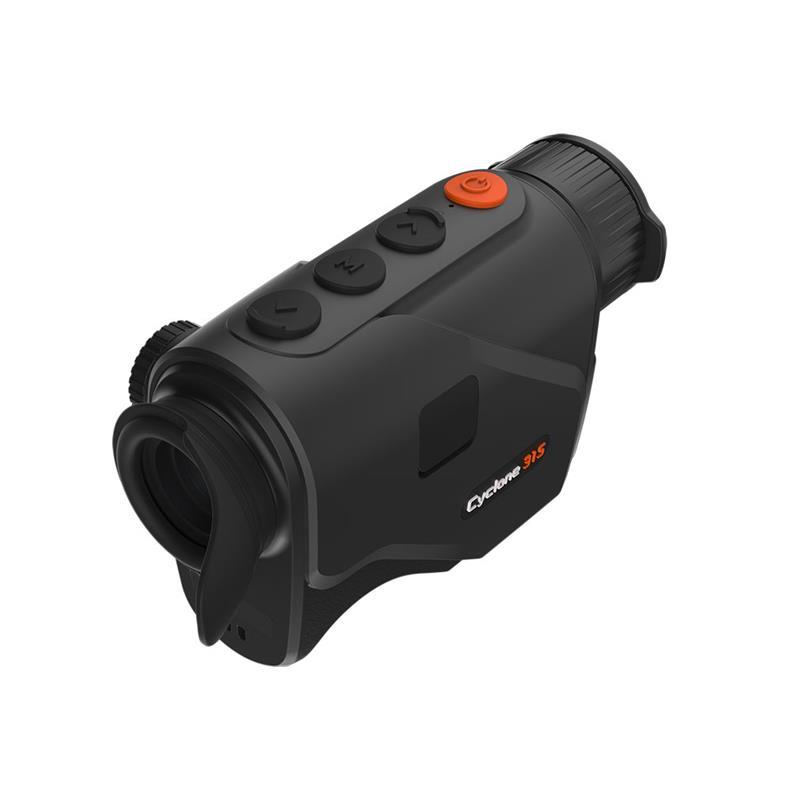

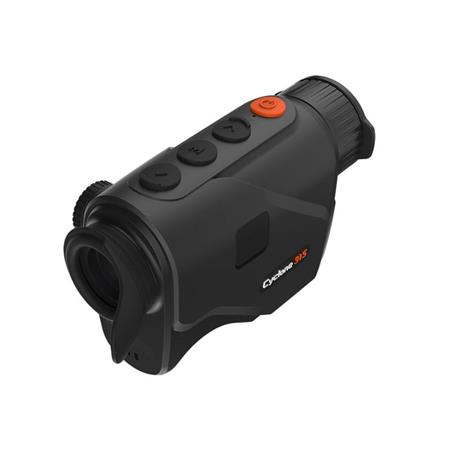

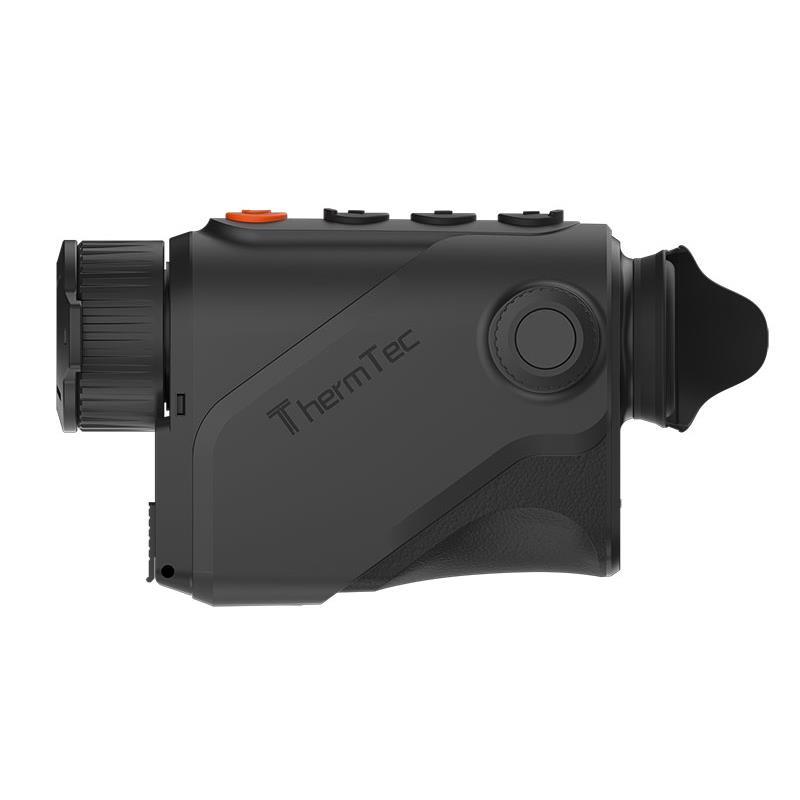

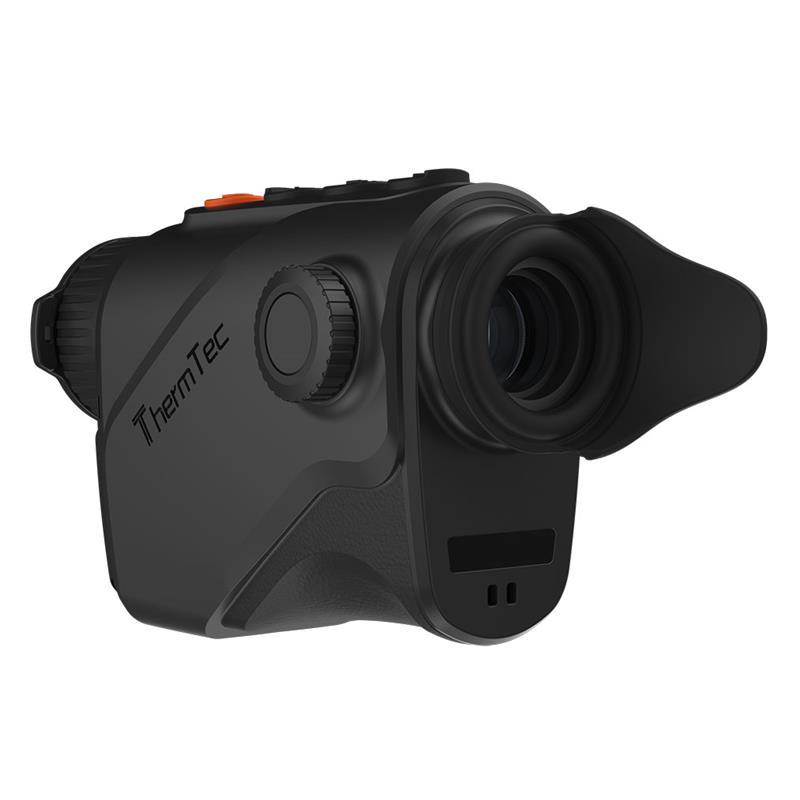

The Thermtec Cyclone 315 is the most compact and lightweight thermal imaging monocular on the market, weighing only 255 g. It includes a NETD <20 mK detector that delivers excellent image quality. Automatic AI learning algorithms provide increasingly stable target image quality. With advanced features such as multi-target capability, 20-hour battery life and a 3-second quick startup, it is an excellent choice for close-range observations at an affordable price.

Pocket-Size Precision

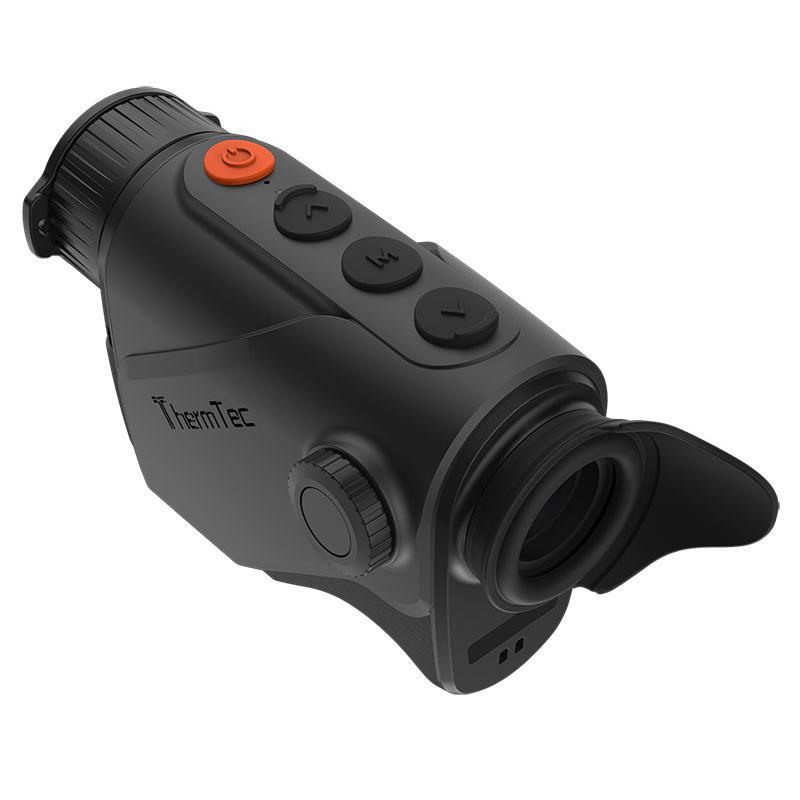

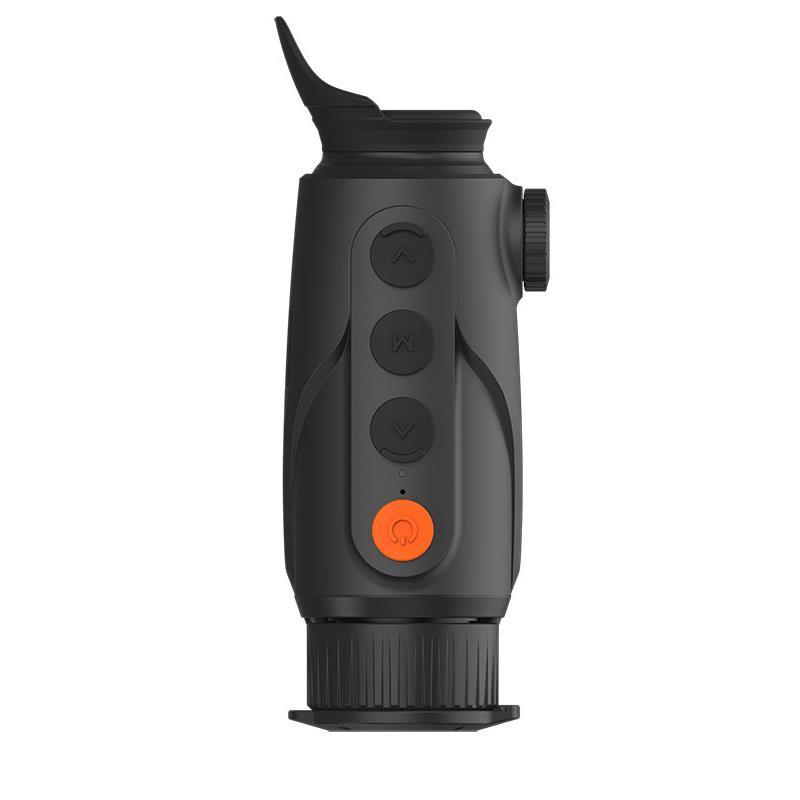

With its compact 255 g size and ergonomic curved design, the device fits perfectly in your hand, allowing full one-handed control and effortless access to all buttons, whether you are left- or right-handed. The carefully arranged button layout enables immediate usability once you have grasped it.

Features :
• Resolution: 384x288
• Pixel pitch: 12 µm
• NETD: 20 mK @ 300 K
• Spectral range: 8 - 14 µm
• Frame rate: 50 Hz
• Detection range: 1300 m
• Objective lens: 15 mm / f1.0
• Field of view: 17.5° x 13.1°
• / m @ 100 m: 30.7 m x 23.0 m
• Magnification: 1.4x
• Digital zoom: 1x, 2x, 4x
• Eye relief: 20 mm
• Exit pupil: 6 mm
• Diopter: ± 5 d
• Type: Amorphous
• Display resolution: 1024x768
• Display size: 0.39 inch
• Colour palette: 6
• Image mode: Forest / Target / Outline
• Photo / video playback: Yes
• Language: Multiple languages
• Internal memory: 32 GB
• Audio: Calibration
• PIP: Yes
• AI distance measurement: Auto / manual
• Heat tracking: Yes
• OSD recording: Yes
• Internal battery: replaceable and rechargeable Li-ion battery (18650 x1)
• Battery life: 10 h
• Type-C: Supports battery charging, data transfer
• Hotspot: Yes, app remote
• Operating temperature: -20 ℃ ~ +50 ℃
• Protection level: IP67
• Weight, g: 255 (W/O Battery)
• Dimension mm: 139 * 76 * 54
• External cable: USB cable
• Other accessories: None - dust cloth and etc.
