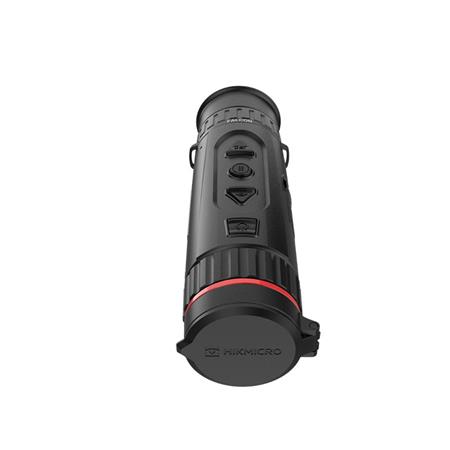

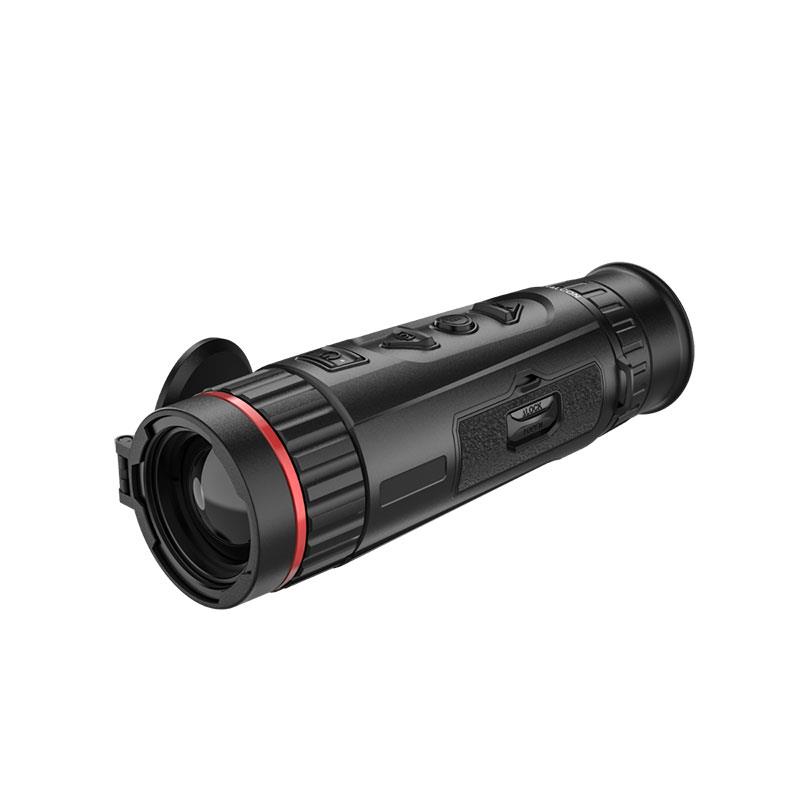

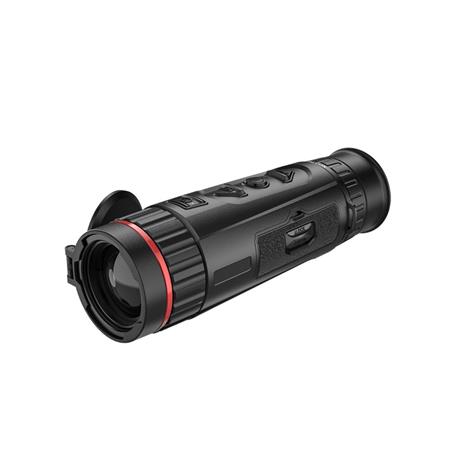

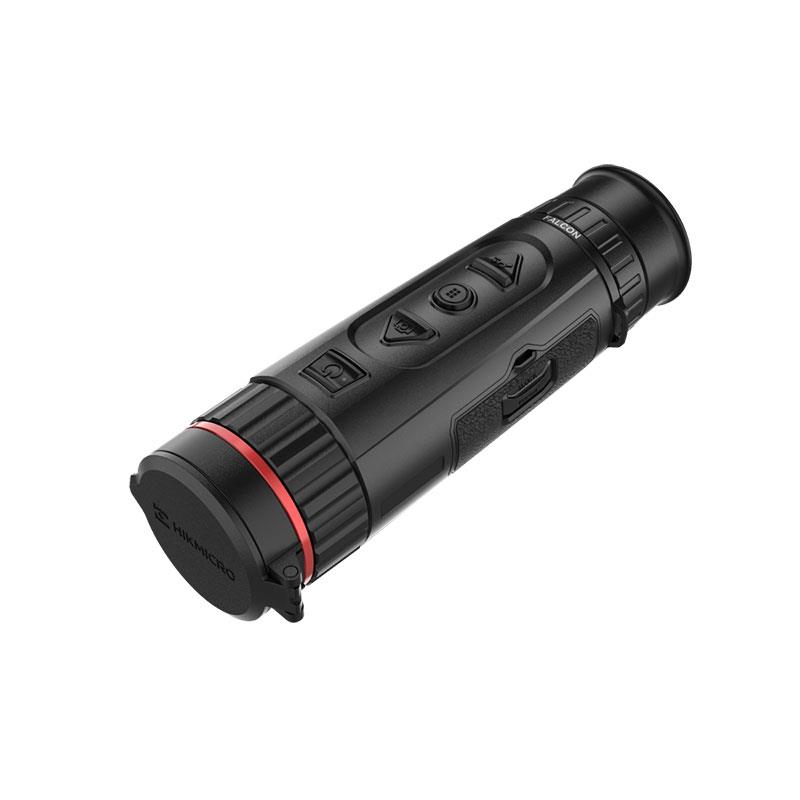

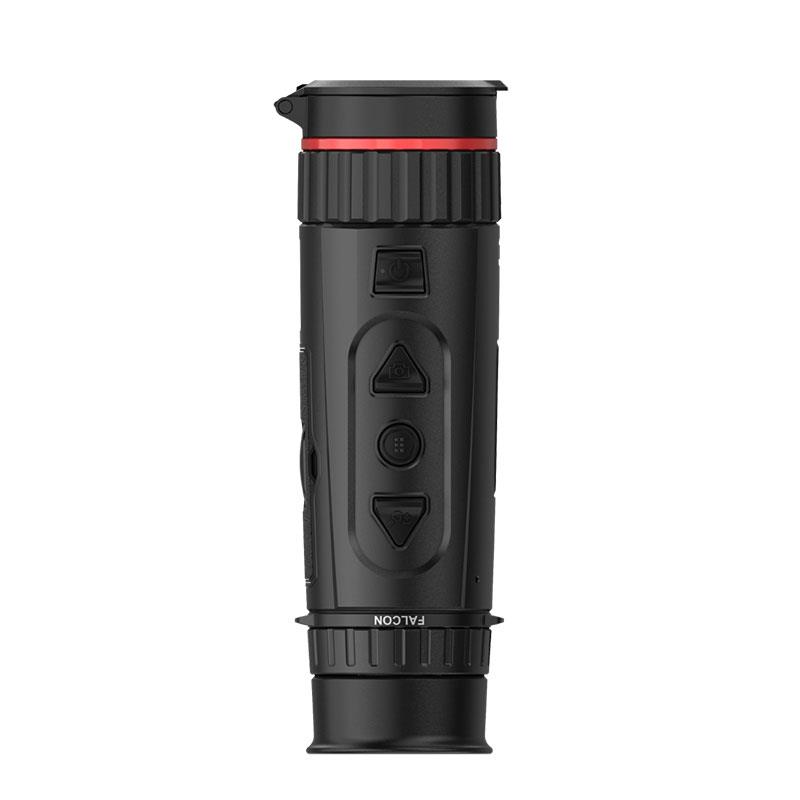

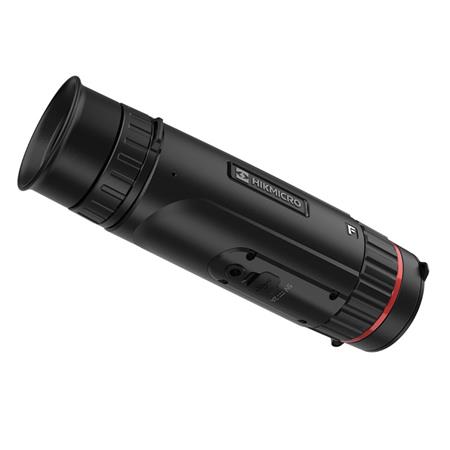

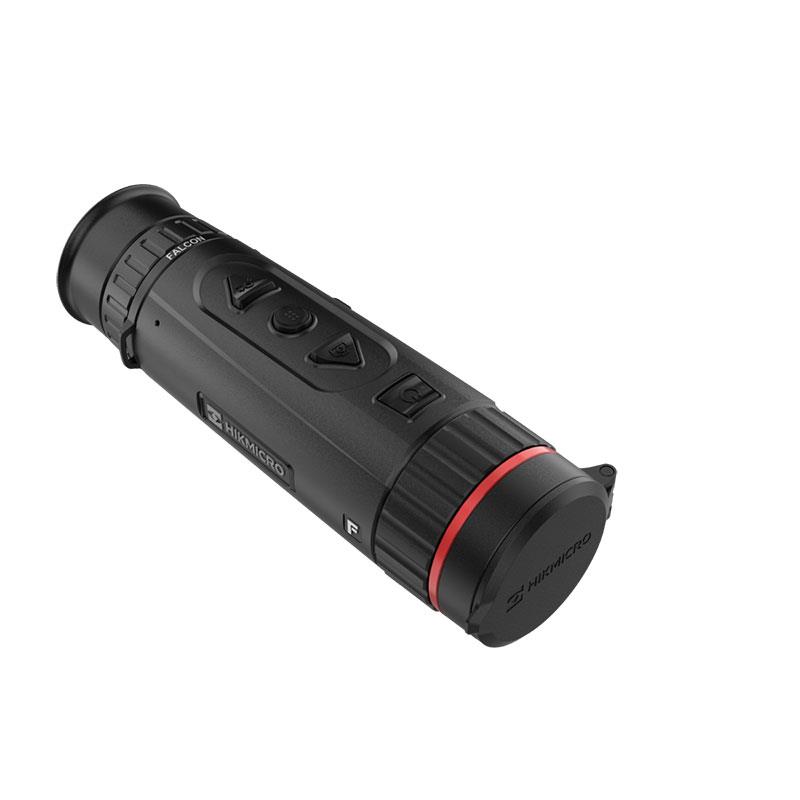

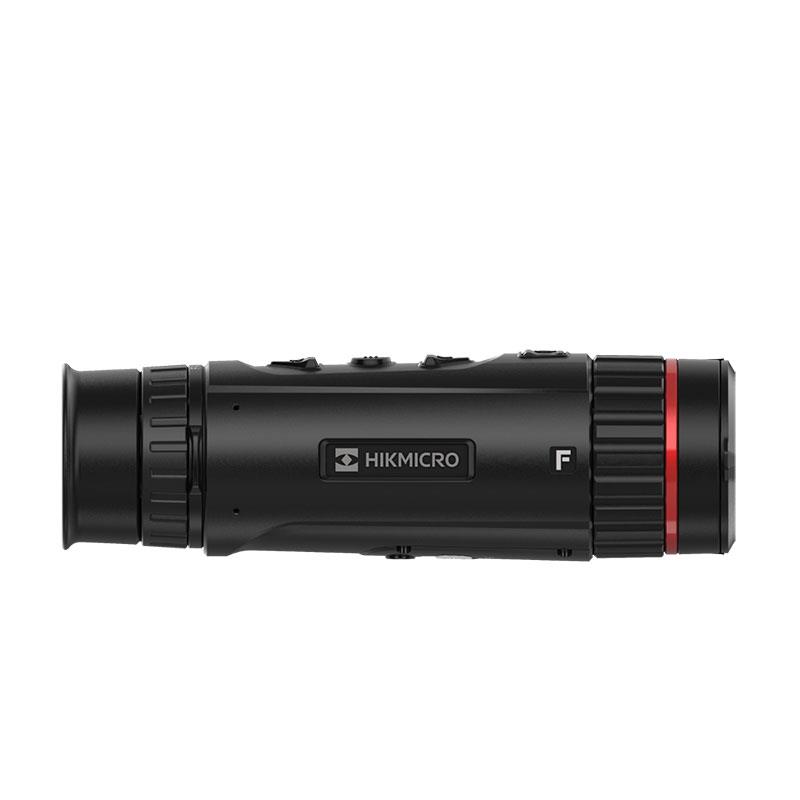

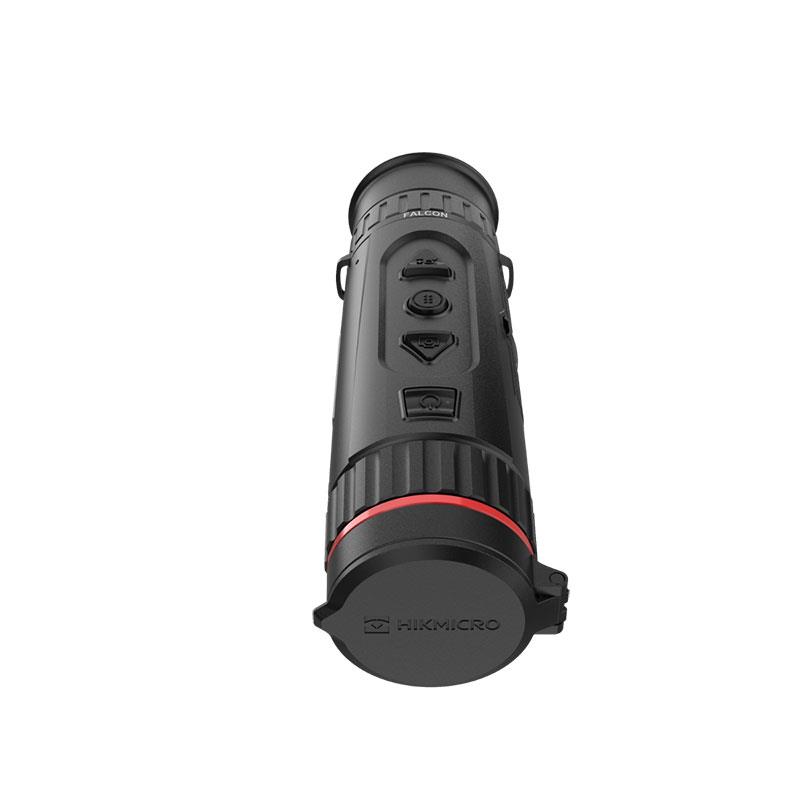

Thermal Vision Monocular Hikmicro Falcon Fh35

Read more-Product description

Hikmicro
1639
Recommended retail price : €1639
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Weight (g)
Dimensions (mm)
Price inc VAT
HIKFH35
(Unavailable)
€1639
505
187.7 x 58.3 x 65.2
€1639
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
The HIKMICRO FALCON FH35 portable monocular thermal camera is equipped with an infrared sensor with a resolution of 384 x 288 pixels and an OLED display of 1024 x 768 pixels.

It supports observation, hotspot functions, etc.

The high-sensitivity built-in thermal detector provides a clear view even in total darkness.

The monocular is mainly applied to scenarios such as search and rescue, hiking, travel and hunting, etc.

Main features :
• Resolution of 384 x 288 pixel with a 12µm sensor
• High-sensitivity thermal module NETO< 20 mK [@25°C, F# = 0]
• Replaceable and rechargeable Li-ion battery
• Up to 7 hours of continuous operation
• Cutting-edge thermal image processing technology: Image Pro
• resolution of 1024 x 768 pixel OLED screen of 0,39 inches

Thermal sensor
• Sensor : Uncooled focal plane arrays
• Resolution : 384 x 288
• Frame rate : 50 Hz
• Pixel interval : 12 µm
• NETO : > 20 mK (@25°Cl, F# = 1.0
• Focal length : 35mm
• Aperture : F1.0
• Min. focus distance : 3.5 m
• Digital zoom : 1x, 2x, 4x, 8x
• Optical magnification : 3.03
• Field of view : 7.53° x 5.65° / 13.2m x 9.9 m
• Detection range : 1800 m

Image display
• Monitor : 0,39 inches, OLED, 1024 x 768
• Palettes : Black hot, White hot, Red hot, Fusion
• Flat field correction : Automatic, Manual, External correction

System
• Storage : Built-in memory module (64 GB)
• Video recording : yes
• Photo capture : yes
• Standby mode : yes

Power
• Power : 5V, 1.75W
• Battery type : Replaceable and rechargeable Li-ion battery
• Battery life : 7 hours of continuous operation with CVBS function and hotspot disabled (@25°C)

General
• Operating temperature : -30°C to 55°C, Humidity: 90% or less
• Protection rating : IP67
• Dimensions : 187.7 mm x 58.3 mm x 65.2 mm (7.39″ x 2.29″ x 2.57″)
• Weight : 505g
