Thermal Monocular Hikmicro Lynx Le15s

Read more-Product description

(2 reviews)

£685.52

Recommended retail price : £685.52

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Weight (g)

Dimensions (mm)

Price inc VAT

HIKLE15S

£685.52

280

158.3 × 61 × 57

£685.52

Models & specificities Descriptive Reviews

Descriptive

Back to menu

The HIKMICRO LYNX S LE15S thermal monocular is equipped with a 256 × 192 detector and an 800 × 600 OLED display.

It supports observation functions, Wi‑Fi hotspot, etc.

The built-in high-sensitivity thermal detector provides clear images in challenging conditions.

The monocular is mainly used in scenarios such as hunting, hiking, search and rescue, etc.

Main features :
• High-sensitivity thermal module with 256 × 192 resolution
• NETD < 35 mK (@25°C, F# = 1,0)
• Image processing technology: Adaptive AGC, DDE, 3D DNR
• 0,32 pouce OLED display with a resolution of 800 × 600
• Built-in rechargeable lithium battery
• Up to 8 hours of continuous operation

Warranty
• Battery: 1 year
• Product: 3 years
• Thermal sensor: 10 years

Specifications :
Thermal module
• Image sensor: Uncooled vanadium oxide (Vox) focal plane arrays
• Resolution: 256 × 192
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Spectral response band: 8 μm to 14 μm
• NETD : < 35 mK (25°C, F# = 1.0)
• Lens (focal length): 15 mm, F1.0
• Detection range: 750 m
• Focus mode: Manual focus
• Minimum focus distance: 10 m
• Zoom: 2.2× to 17.6× (8×)
Field of view (H × V), Degrees/M @100 M : 11.7° × 8.8° / 20.5 m × 15.4 m

Image display
• Monitor: 800 × 600, 0.32-inch, OLED
• Image Mode: Black hot, White hot, Red hot, Fusion
• FFC Mode (Image calibration): Auto, Manual, External correction
• Exit pupil: 20 mm
• Eye relief: 6 mm
• Diopter (Range): -5D to +4D
• Brightness adjustment: Yes
• Tone adjustment: Cold, Warm
• Contrast adjustment: Yes

System
• Video recording: Yes
• Photo recording: Yes
• Audio recording: Yes
• Sleep mode: Yes
• Storage: Built-in EMMC (8Go)
• PIP: Yes
• Wi-Fi (streaming): Yes
• Hot-spot tracking: Yes
• Distance measurement: Yes

Power

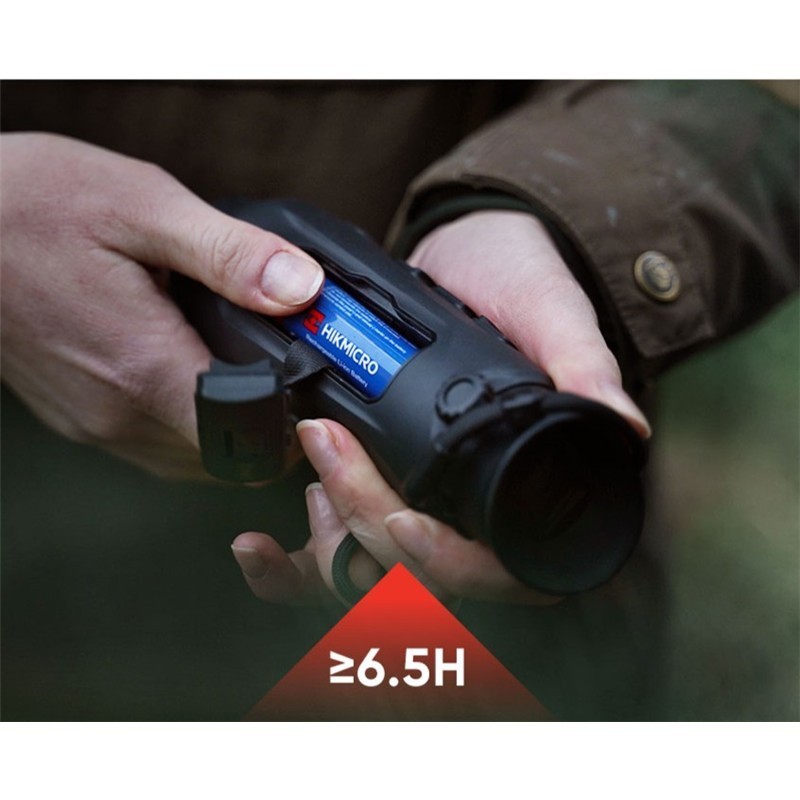

• Battery type: Rechargeable lithium battery
• Battery runtime:
- 8 hours of continuous operation with CVBS and Wi-Fi disabled (@25°C)
- 6 hours of continuous operation with CVBS and Wi-Fi enabled (@25°C)

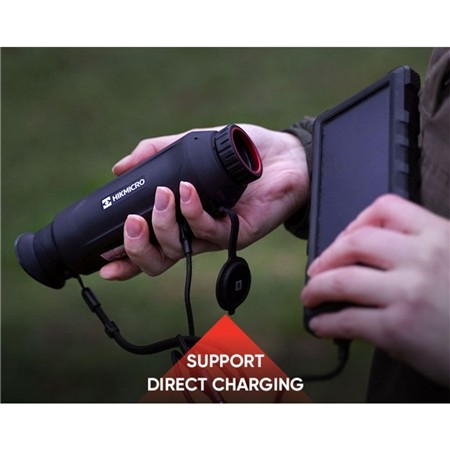

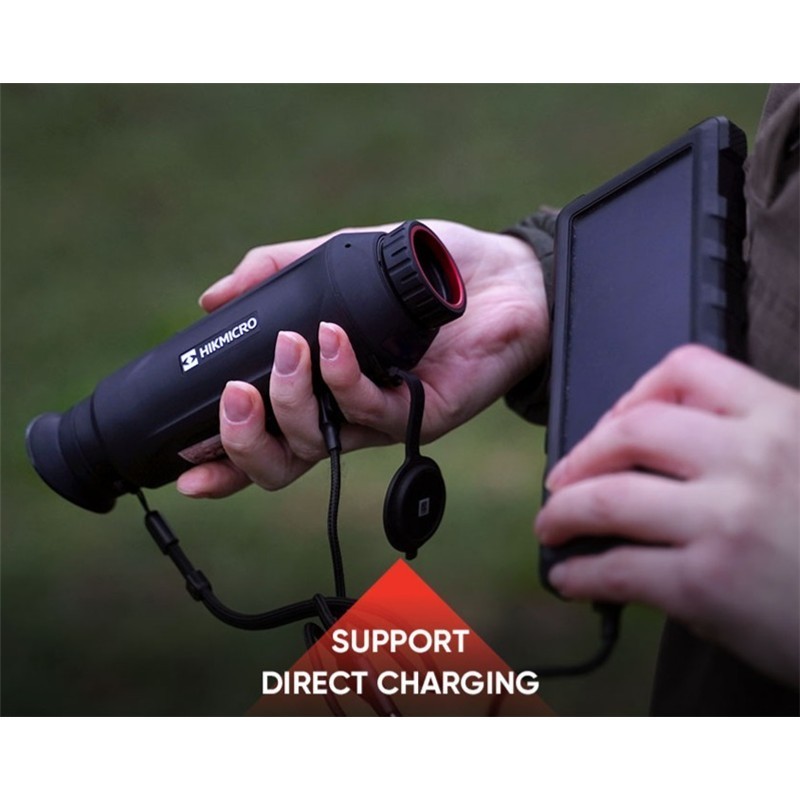

• Type-C power adapter: 5 VDC, 2 A. Supports external power

General
• Protection rating: IP67
• Dimensions: 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”)
• Operating temperature: -20°C to 55°C (-4°F to 131°F)
• Weight: 280 g (0.62 lbs)

HIKMICRO SPECIFICATIONS GUIDE
