THERMAL MONOCULAR HIKMICRO LYNX LH19 2.0

Thermal Monocular Hikmicro Lynx Lh19 2.0

Name: THERMAL MONOCULAR HIKMICRO LYNX LH19 2.0
Brand: Hikmicro
SKU: 346450

Read more-Product description

£1011.12

Recommended retail price : £1011.12

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

HIKLH19V2

£1011.12

Models & specificities Descriptive

Descriptive

Back to menu

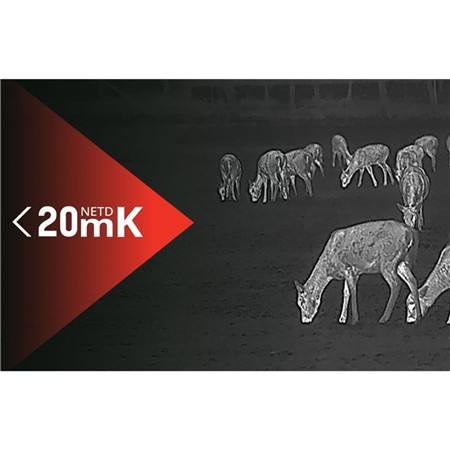

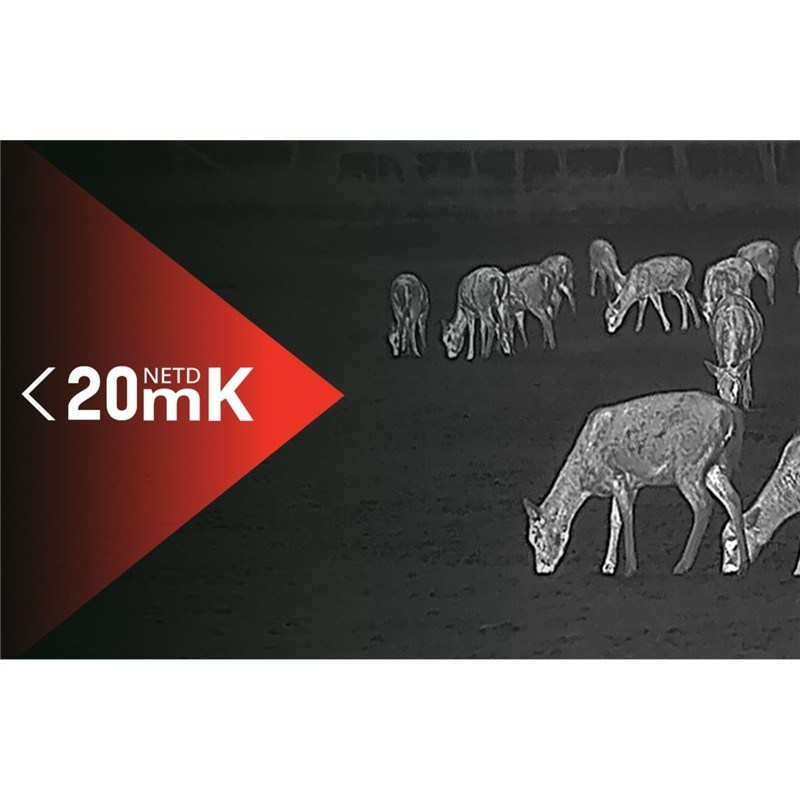

With its high thermal sensitivity of NETD < 20 mK and its 384 VOx sensor, the HIKMCRO LYNX LH19 2.0 ensures image quality.

Experience control with the manual focus function, allowing you to precisely adjust the image to the exact distance.

Main features
• High-sensitivity thermal module NETD < 20 mK (@25°C, F# = 1,0)
• Resolution 384 × 288 with 12μm detector
• 0,39-inch OLED screen with a resolution of 1024 × 768
• Removable and rechargeable battery
• Lightweight 280 g, with a compact and ergonomic design
• Up to 6,5 hours of continuous operation
• Warranty
• Battery: 1 year
• Product: 3 years
• Thermal sensor: 10 years
• Specifications
• Thermal module

Imaging sensor
• Uncooled vanadium oxide focal plane arrays (Vox)
• Resolution: 384 × 288
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Spectral response band: 8 μm to 14 μm
• NETD: < 20 mK (@25°C), F# = 1.0
• Lens (focal length): 19 mm, f1.0
• Detection range: 900 m

• Focus mode: Manual focus
• Minimum focusing distance: 1.9 m
• Zoom: 1.8x to 14.4x (8x)
• Field of view (H × V), Degrees/M @100 M: 13.7° × 10.3°/24.0 m × 18.0 m

- Image display
• Monitor: 1024 × 768, 0.39-inch, OLED
• Image Mode: Black hot, White hot, Red hot, Fusion
• FFC Mode (Image cleaning): Auto, Manual, External correction
• Exit pupil: 20 mm
• Eye relief: 6 mm
• Diopter (Range): -5D to +3D
• Brightness adjustment: Yes
• Tone adjustment: Cool, Warm
• Contrast adjustment: Yes

- System
• Video recording: Yes
• Photo recording: Yes
• Audio recording: Yes
• Standby mode: Yes
• Storage: Built-in eMMC (16Go)
• PIP: Yes
• Wi-Fi (streaming): Yes
• Hot spot tracking: Yes
• Distance measurement: Yes

- Power

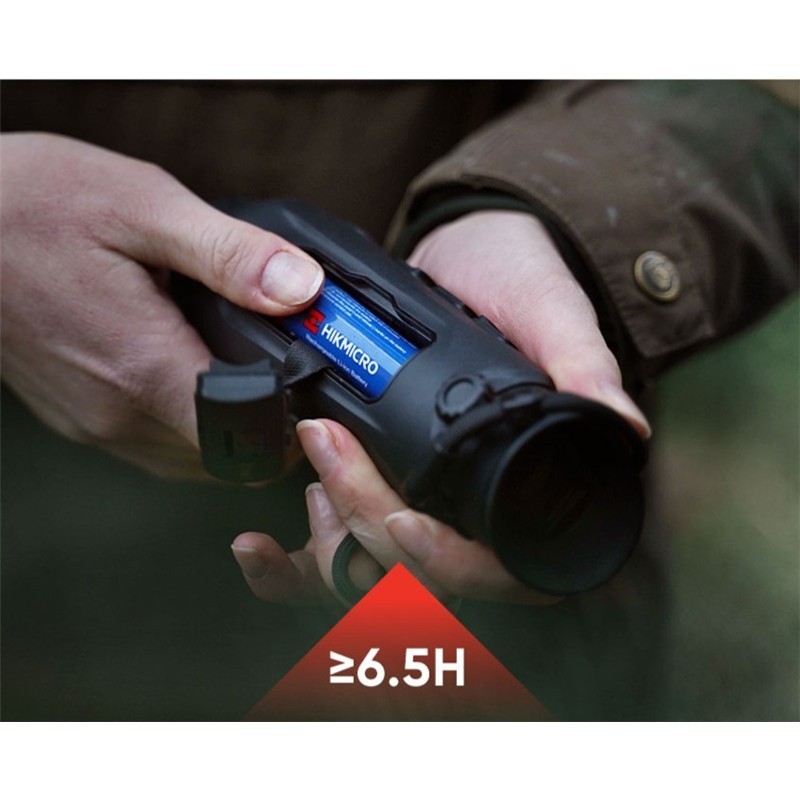

• Battery type: Removable and rechargeable battery
• Battery runtime: 6,5 hours of continuous operation with CVBS and Wi-Fi enabled (@25°C)

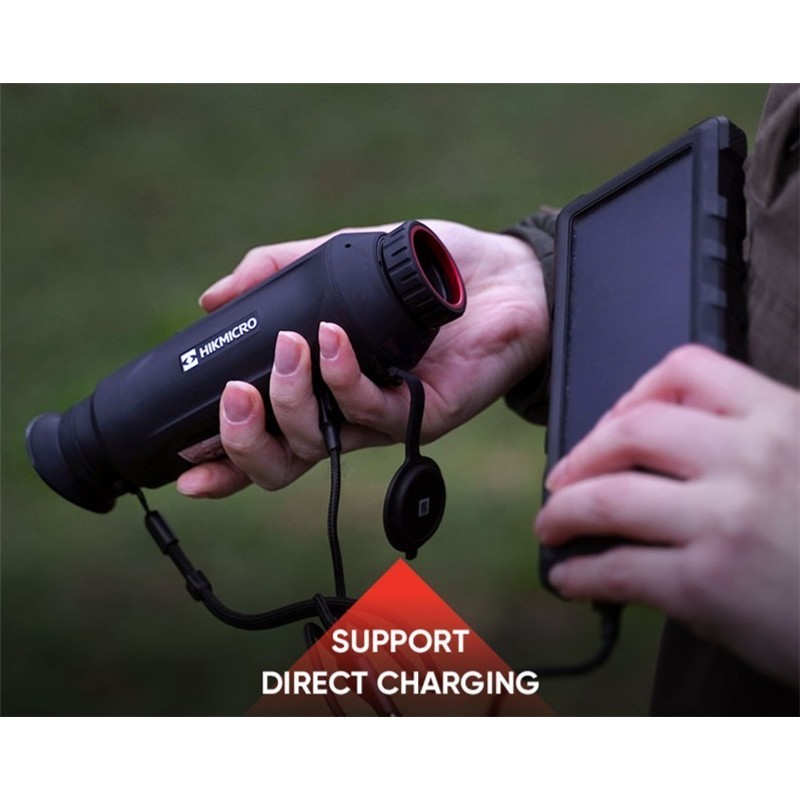

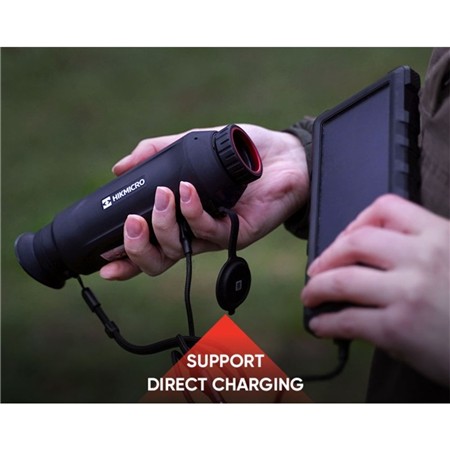

• Type-C power supply: 5 VDC, 2 A. Supports external power

- General
• Protection rating: IP67
• Dimensions: 172.5 mm × 56.0 mm× 60.8 mm
• Operating temperature: -30°C to 55°C (-4°F to 131°F)
• Weight: 282g without battery
