Thermal Monocular Nocpix Lumi L19

Name: THERMAL MONOCULAR NOCPIX LUMI L19
Brand: Nocpix
SKU: 351078

Read more-Product description

£945.14

Recommended retail price : £945.14

Shipping within 24h

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

INF.LUMI.L19

£945.14

Shipped within

24h

Shipped within

24h

£945.14

Models & specificities Descriptive

Descriptive

Back to menu

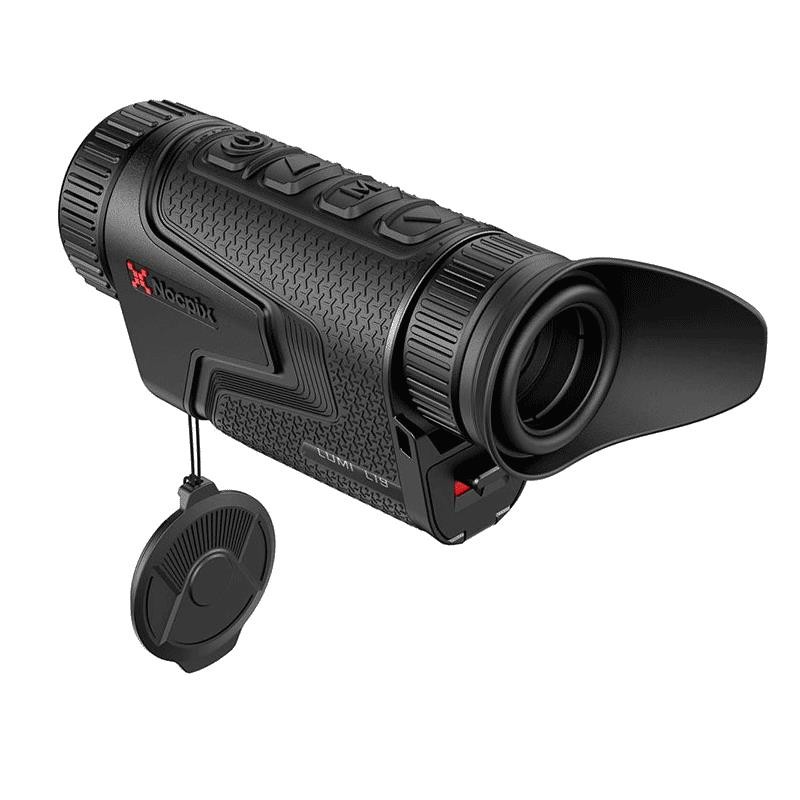

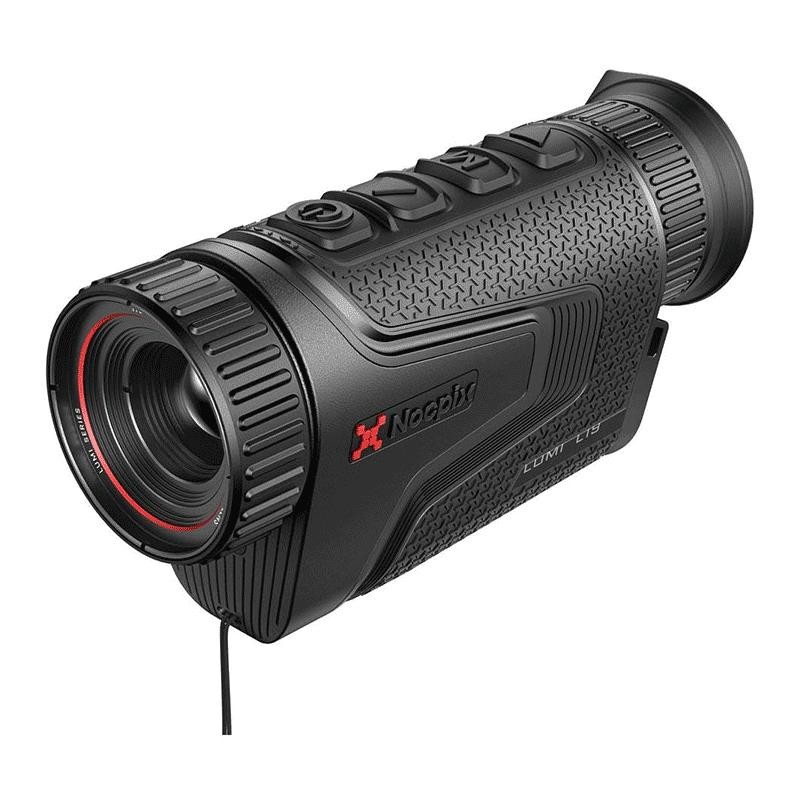

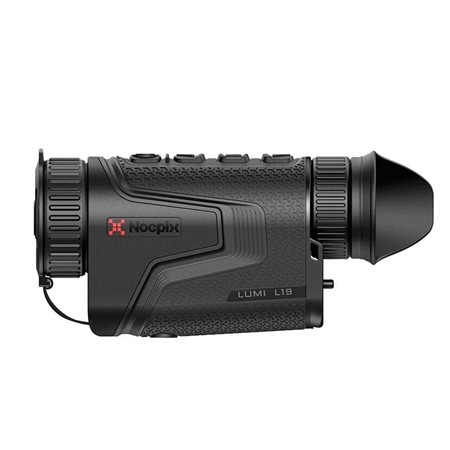

The Nocpix LUMI L19 is a compact, lightweight thermal monocular for high-definition thermal imaging in a portable form factor. Compared with the LUMI P13, the L19 is equipped with an improved 384x288 resolution sensor with a 12 µm pixel pitch and an NETD sensitivity of 18mK, offering even greater thermal detection performance. The 19 mm F 0.9 lens provides an extended detection range up to 980 meters, with 2 to 8x magnification for increased clarity from this thermal imaging scope.

Equipped with a 1024x768 AMOLED display, the LUMI L19 ensures sharp, detailed thermal images, with a 50 Hz refresh rate for smooth performance. Built-in photo and video recording capabilities allow users to capture thermal data directly, while Wi-Fi connectivity enables seamless APP integration for remote viewing and sharing. Powered by 2 rechargeable 18 650 batteries, this powerful Nocpix device offers quick replacement for extended operation with fewer interruptions.

Features:
• Compact and lightweight
• 12 µm detector
• F 0.9 lens
• AMOLED 1024×768
• 18650 rechargeable battery for quick replacement
• High frame rate of 50 Hz
• Smooth digital zoom
• Ultraclear mode
• Eye protection thanks to low brightness, a color palette and a warm tint
• Electronic image stabilization

- Technical specifications
• Resolution: 384 x 288
• Pixel size: 12
• Thermal sensor: 384 x 288 12 µm
• NETD, mK: ≤18
• Frame rate: 50 Hz
• Lens: 19 mm F 0.9
• Field of view: 13.8 x 10.4
• Field of view (linear): 24 x 18
• Magnification: 2~8
• Detection range: 980 m
• Eye relief: 25 mm
• Exit pupil diameter: 10
• Diopter: -5 ~ +5
• Display type: AMOLED
• Screen resolution: 1024 x 768
• Battery: Removable 18650 li-ion battery
• Maximum operating time: 4.5 h
• Wi-Fi/APP: YES
• MIC: YES
• Memory capacity: 32 GB
• IP rating: IP67
• Max. operating temperature. Operating temperature: -20 ~ +50
• Weight 335 g
• Dimensions: 139 x 47 x 74 mm

User manual
