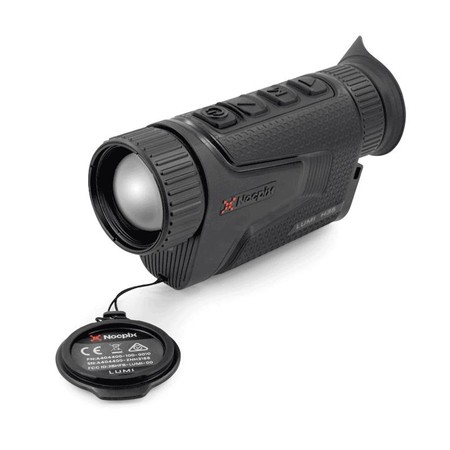

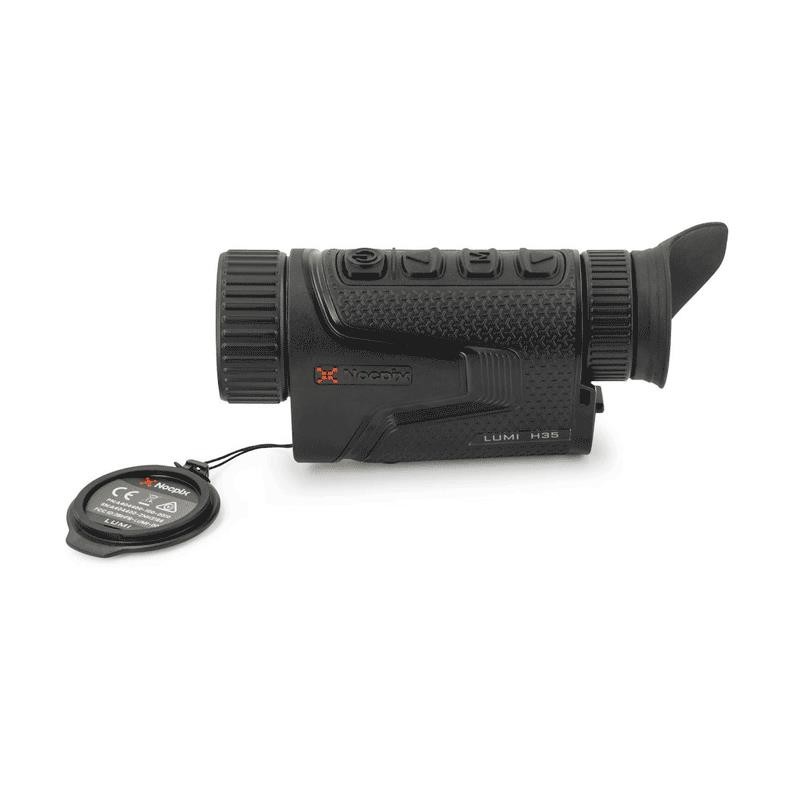

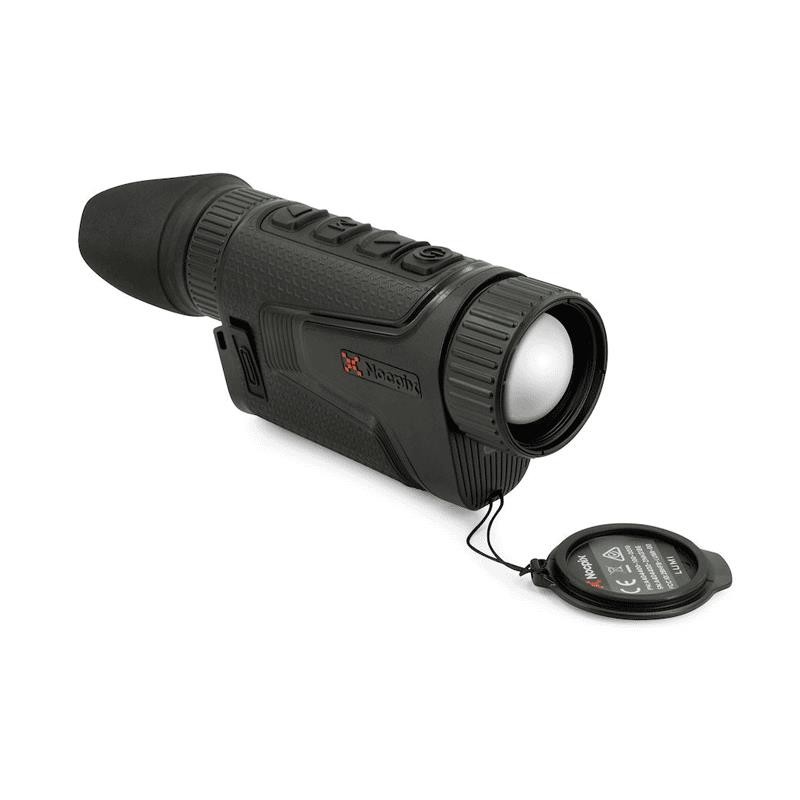

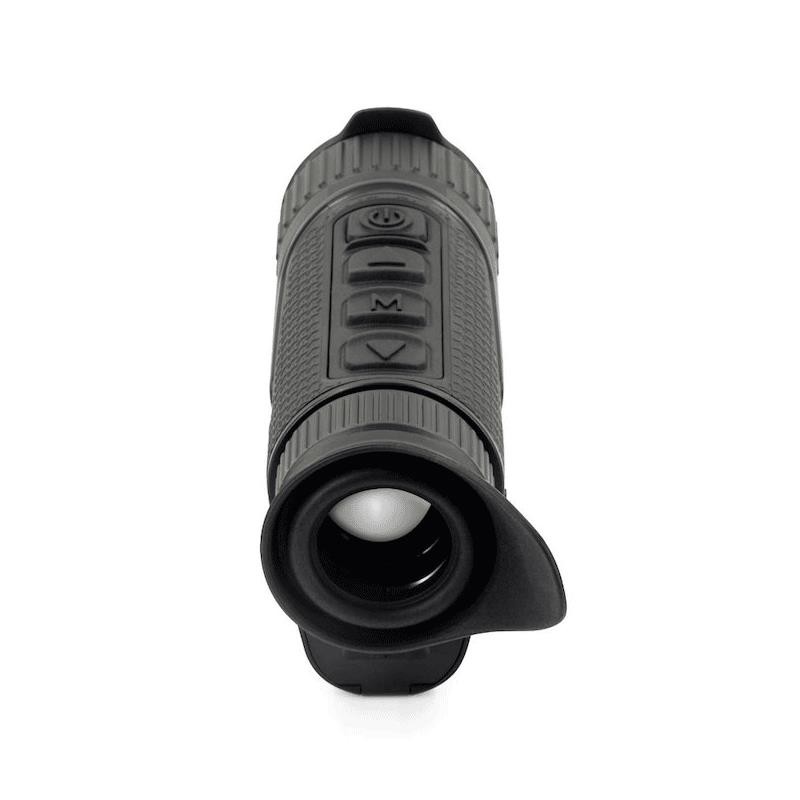

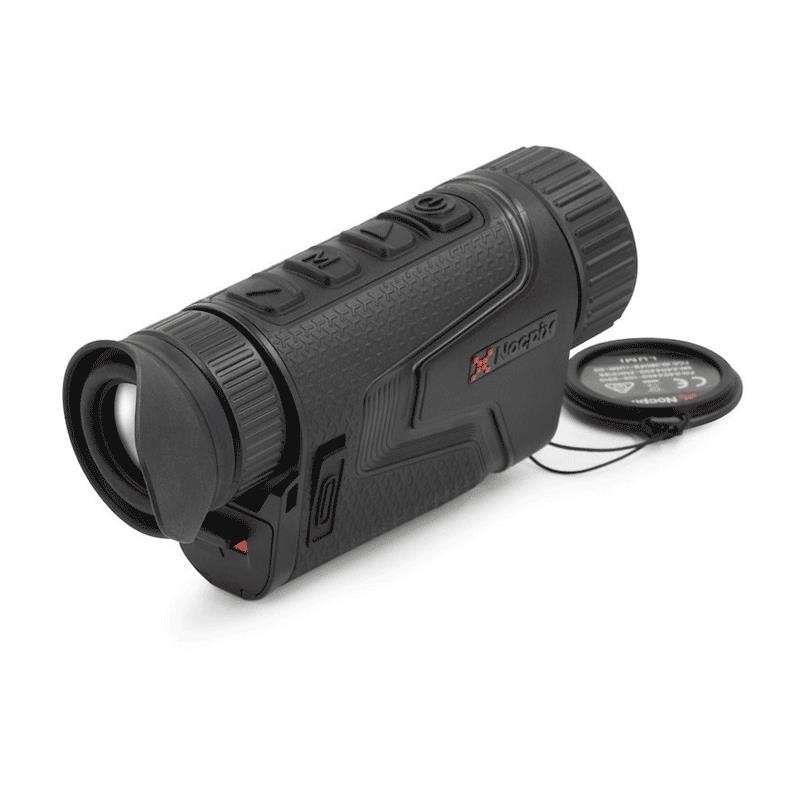

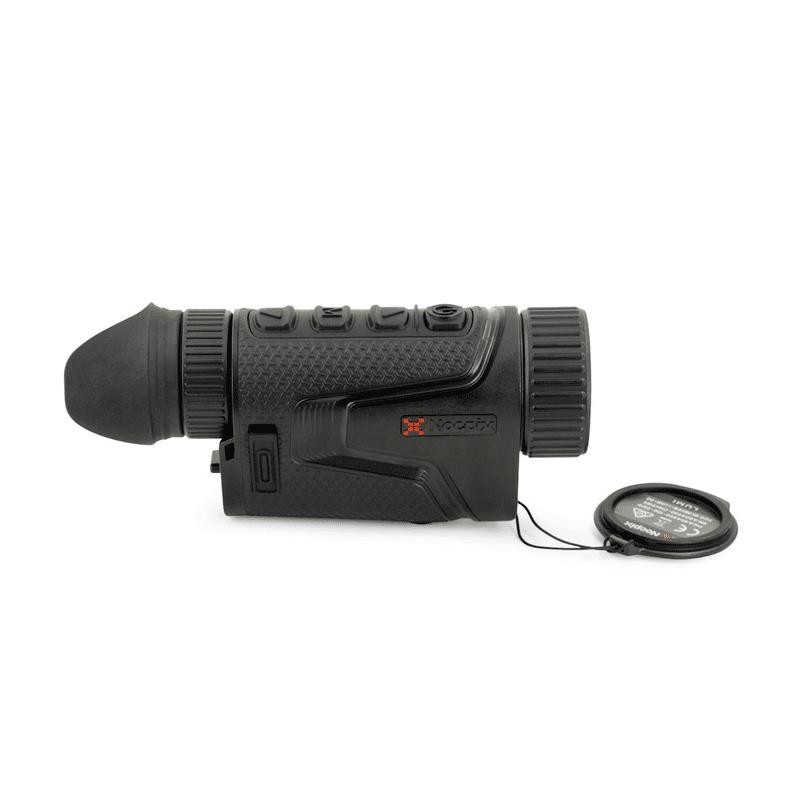

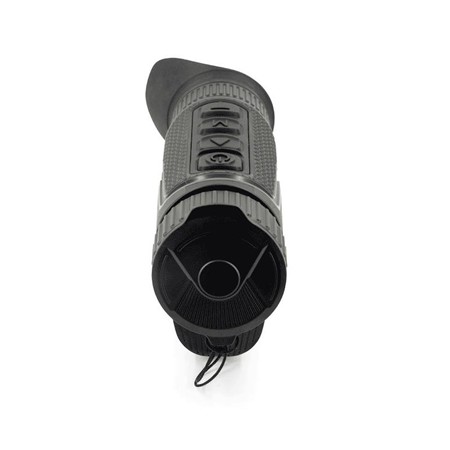

Thermal Monocular Nocpix Lumi H35

Name: THERMAL MONOCULAR NOCPIX LUMI H35
Brand: Nocpix
SKU: 351073

Read more-Product description

£1739.13

Recommended retail price : £1739.13

Shipping within 24h

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

INF.LUMI.H35

£1739.13

Shipped within

24h

Shipped within

24h

£1739.13

Models & specificities Descriptive

Descriptive

Back to menu

lumi brings power to thermal observation devices in a compact, user-friendly format for hunters on the move. the portable lumi l35 thermal monocular is equipped with a high-quality 640×512 (h35) thermal sensor, paired with a 1024×768 amoled display. this model offers a base magnification of 2.5x (h35) for a wider field of view.

the advanced reality+ image processing algorithm with a thermal sensitivity ≤18 mk netd enables sharp, high-contrast images. lumi's power supply is simple and affordable thanks to the use of common interchangeable 18650-type batteries. as a powerful tool for spotting and scanning, the lumi has been designed to be as compact and ergonomic as possible while delivering impressively precise and clear images. the lumi weighs 340 g and easily fits in the palm of the hand, in a pocket, or in the included molle-compatible case.

features :
• lightweight and compact, it fits in a pocket or in the included molle-compatible case.
• the weather-resistant rubberized texture increases durability and is not cold to the touch.
• powered by a standard rechargeable 18650-type battery, with a spare battery included.
• advanced r+ image processing improves image quality during digital zoom.
• onboard photo, video and audio recording.
• comfortable ambidextrous vertical design.

- optics
• screen type amoled
• eye relief 25 mm
• lens focal length 35 mm
• optical magnification 2.5x
• digital magnification 8x
• diopter range -5 to +5
• vertical angular field of view 9.4°
• horizontal angular field of view 12.5°
• focus mechanism manual focus
• lens f# 0.9
• lens diameter 35 mm
• objective lens material germanium
• display resolution 1024×768
• detection range 1600 m

- performance
• color palettes white hot, black hot, hot red, color, violet, carmine, viridian
• image-in-image yes
• user-updatable firmware yes
• mobile app yes
• one-shot zero yes
• standby mode yes
• wifi yes
• image capture yes
• video output yes
• storage capacity 32 gb
• output connector power/data
• power source external usb-c, 18650 battery
• connector type usb-c
• onboard recording yes
• runtime 4+
• warranty 5 years
• startup time <10 seconds, instantaneous from standby
• external power source usb-c
• country of manufacture china

- environmental specifications
operating temperature -20 °c ~ +50° c
ingress protection ip67

- physical characteristics
• housing material polymer
• weight 335 g
• height 7.4 cm
• width 4.6 cm
• length 14.3 cm

- sensor specifications
• sensor type nocpix 640
• sensor pixel size 12 µm
• thermal sensitivity <18mk
• non-uniformity correction (nuc) manual, automatic, semi-automatic
• sensor frame rate 50 hz
• device technology thermal imaging
• sensor resolution 640×512
