Descriptive
Back to menu

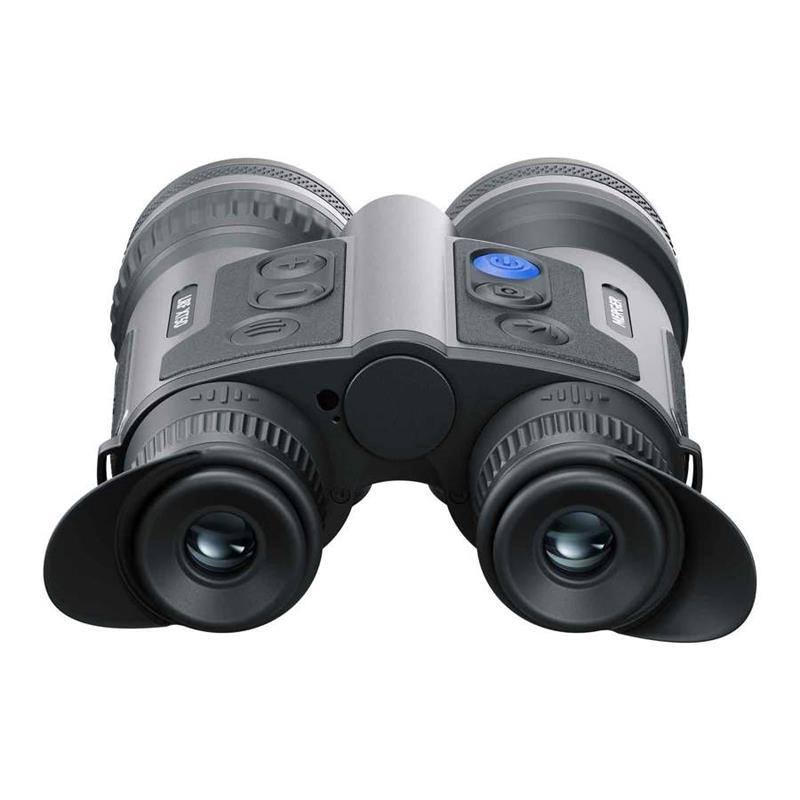

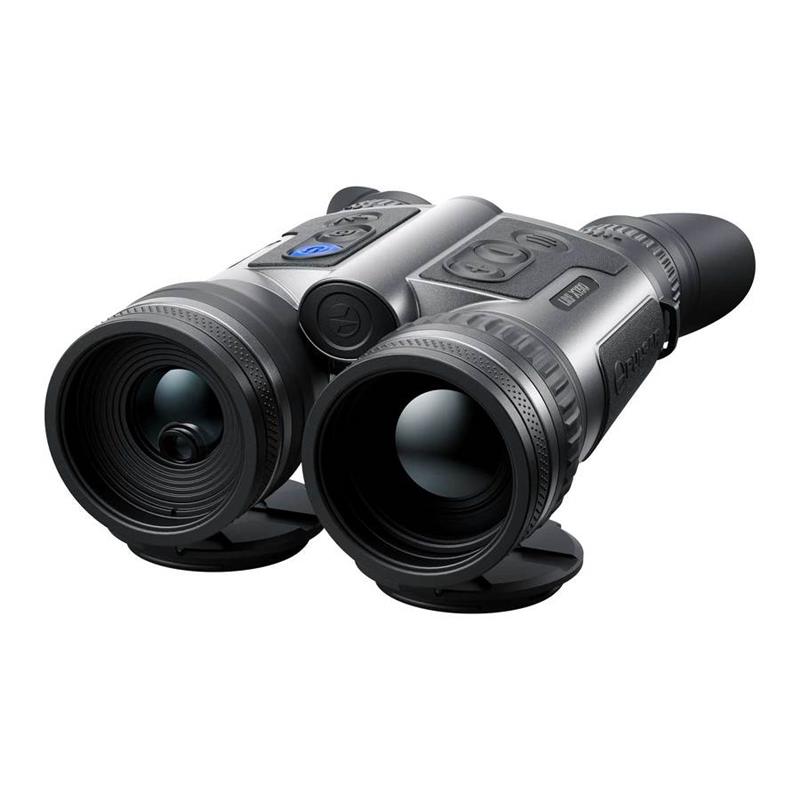

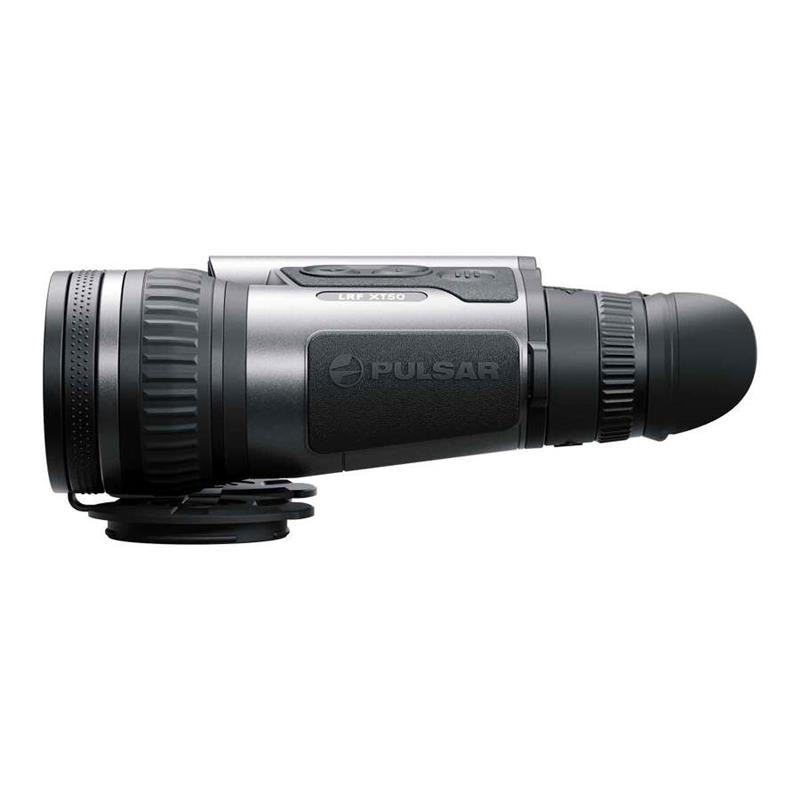

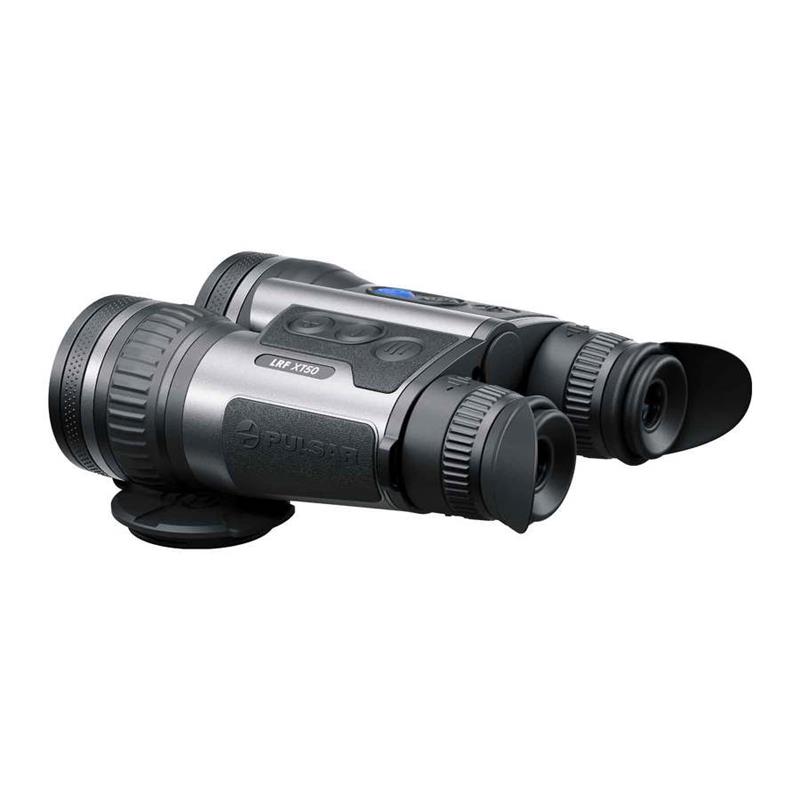

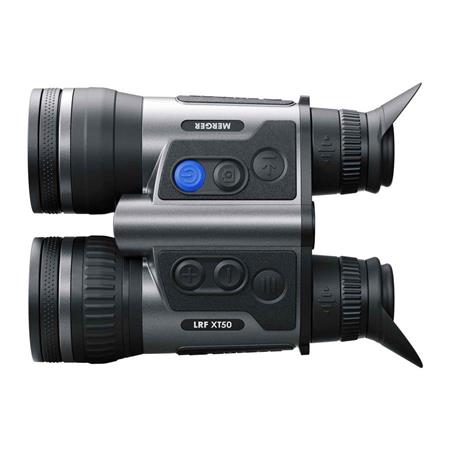

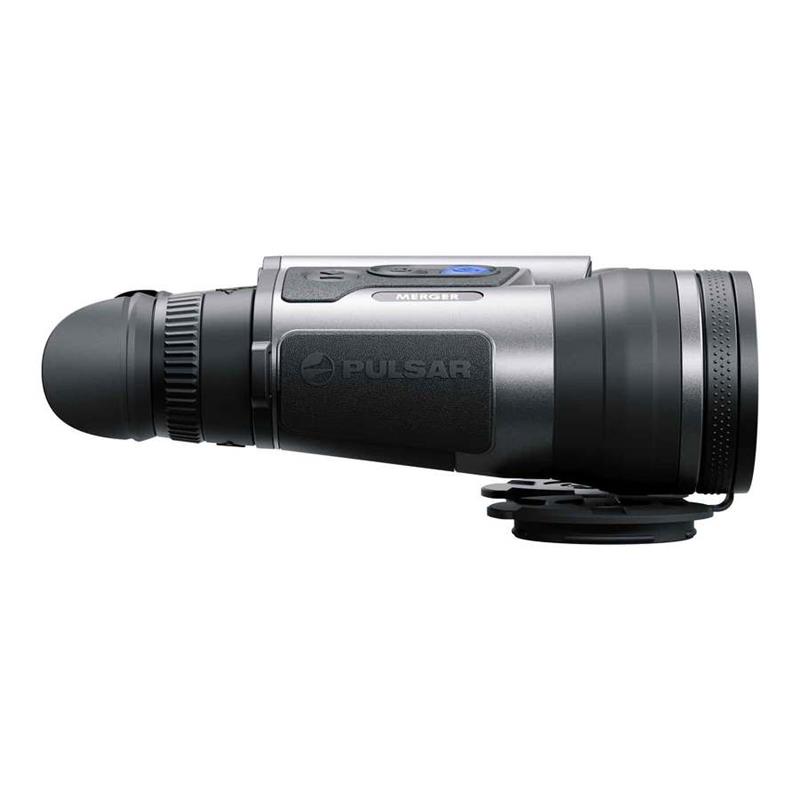

high-end model of the pulsar thermal binoculars range. the merger lrf xt50 delivers extraordinary image detail thanks to its 1280 x024-pixel thermal sensor and its new 1280 x 960 amoled microdisplay. the merger lrf xt50 offers a wide field of view of 17,5 degrees and a magnification of 2x to 16x.
thermal sensors manufactured in europe the merger lrf binoculars guarantee an unparalleled thermal imaging experience. for image capture, the merger binoculars use professional-grade European thermal sensors: the 17 microns 640×480 and 384×288 sensors offer extreme thermal sensitivity.
detailed and sharp image with high zoom digital zoom increases the device's optical magnification. even at the highest zoom level, image details are sufficient to identify the smallest features of the object. advanced algorithms enhance image quality and provide a sharp, detailed image.
wide field of view the wide field of view simplifies scanning and spotting hot objects while minimizing image shake effects and improving situational awareness. the excellent image detail at base magnification, combined with a wide field of view, improves viewing comfort and scene perception.
extra-long detection range powerful germanium optics combined with professional thermal imaging sensors offer exceptional detection capabilities. some merger lrf units can detect hot objects at distances greater than 2 km.
user mode use the contrast and brightness settings to optimize image detail and data according to observation conditions. the user mode saves your brightness and contrast settings in the device memory so you can directly restore optimal image quality the next time you start the thermal device, without needing additional adjustment.
classic design the merger lrf thermal imaging binoculars are designed in the classic daytime binoculars form factor. with their compact form factor, these thermal imaging binoculars fit the hand perfectly while offering an attractive aesthetic and ideal ergonomics. the six control buttons are placed in an easily accessible area and the most used digital functions are activated by a single press.
comfortable viewing experience the merger lrf binoculars take into account the nature of human vision. it is natural for a person to receive visual information through two visual channels simultaneously. two-eye viewing is less tiring than single-eye viewing. this means better detection of small or low-light objects, and improved performance in low-contrast scenarios compared to similar monocular thermal imaging devices of the same technical level. the interpupillary distance of the merger lrf binoculars is adjustable from 63 to 74 mm depending on the individual characteristics of each user.
accurate laser rangefinder knowing the distance to the target is an essential factor for making the right decisions. an integrated laser rangefinder with a range of up to 1 kilometer allows you to measure distances by single measurement or by continuous scan with an accuracy of ± 1 meter for quick and error-free assessment of the situation.
more features • fast-aperture f1.0 optics • 3 sensitivity levels • picture in picture • proximity sensor • a selection of 8 color palettes • wide operating temperature range (-25 to +50°c) • ipx7 waterproof certified • high-contrast amoled display • enhanced wi-fi connectivity with support for 2,4 / 5 ghz bands • stream vision 2. wi-fi integration with ios and android devices • built-in photo and video recorder.
technical specifications : • image sensor : hd 1024x768 @ 12 µm (netd <40 mk) • objective diameter : f50 / 1.0 • zoom : 2.5 – 16 • field of view (hxv) : 30.7x24 / 17.5x14 degrees / m at 1000 m • detection range : 2300 m • sensor type : uncooled • resolution : 1280 x 1024 px • pixel pitch : 12 µm • sensor netd : <40 mk • refresh rate : 50 hz • interpupillary adjustment : 62 - 74 mm • eye relief : 15 mm • screen type : amoled hd • screen resolution : 1024 x 768 px • safety class for laser equipment according to iec 60825-1: 2014: 1 • ir wavelength : 905 nm • max. measurement range : 1500 m • measurement accuracy : ± 1 m • photo resolution : 1280 x 960 px • video resolution: 1280 x 960 px • photo format : .kpg • video format : .mp4 • memory capacity : 64 gb • wireless protocol : wi-fi • wifi standard : ieee 802.11 b/g/n/ac (wpa) • wifi frequency : wi-fi - 2,4 / 5 ghz • waterproof : yes - ipx7 • operating temperature : -25° c to +50 ° c • tripod connection : yes - 1/4" • app control : yes - stream vision 2 • output voltage : 3.7 • battery type : dual li-ion power system : 2 ah (external) | 4.9 ah (internal) • battery capacity : 3200 (external) + 4000 (internal) mah • autonomy : 8 h • power supply : 5 v, 9 v (usb type-c power delivery) • body material : magnesium alloy • dimensions : 197 x 140 x 72 mm • weight : 0.95 kg
