Objective Nikon Mep-38W

Name: OBJECTIVE NIKON MEP-38W
Brand: Nikon
SKU: 166889

Read more-Product description

Chasseur.com price 2014

£264.88

Recommended retail price : £296.70

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Eye relief (mm)

Price inc VAT

BDB920WA
(Unavailable)

£264.88

18.5

£264.88

Models & specificities Descriptive

Descriptive

Back to menu

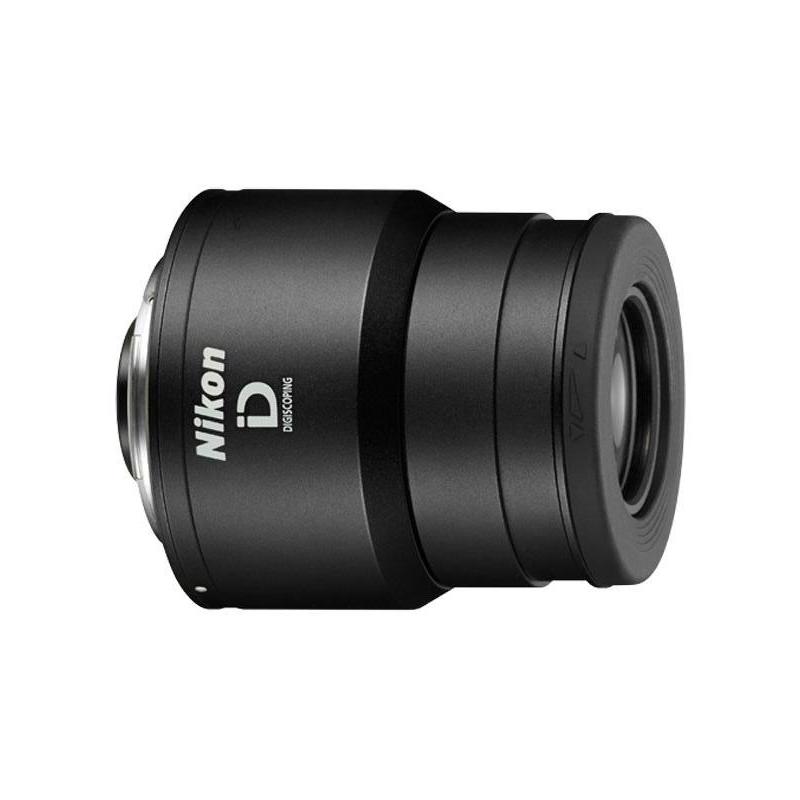

The MEP-38W eyepiece offers optimal image quality and a remarkably wide field of view.

It effectively corrects field curvature and astigmatism to deliver uniform high definition to the periphery. The apparent angular field is exceptionally wide at 66,4° while the generous eye relief provides a clear field of view, even for eyeglass wearers.

Magnification reaches 38x when the eyepiece is mounted on a MONARCH series 82 spotting scope, or 30x when mounted on a MONARCH series 60 spotting scope.

Specifications :
• Magnification (x) :
- MONARCH spotting scope diameter 82 : 38
- MONARCH spotting scope diameter 60 : 30
• Angular field (real/degrees) :
- MONARCH spotting scope diameter 82 : 2,0
- MONARCH spotting scope diameter 60 : 2,5
• Angular field (apparent/degrees) : 66,4
• Linear field seen at 1000 m (m) :
- MONARCH spotting scope diameter 82 : 35
- MONARCH spotting scope diameter 60 : 44
• Exit pupil (mm) :
- MONARCH spotting scope diameter 82 : 2,2
- MONARCH spotting scope diameter 60 : 2,0
• Relative brightness (m) :
- MONARCH spotting scope diameter 82 : 4,8
- MONARCH spotting scope diameter 60 : 4,0
• Eye relief (mm) : 18,5
• Length (mm) : 73 (body only)
• Width (mm) : 61
• Weight (g) : 270
• Waterproofing :
- Eyepiece : not waterproof
- If mounted on the spotting scope : waterproof (equivalent to 5 mm per minute for a duration of 30 minutes)
