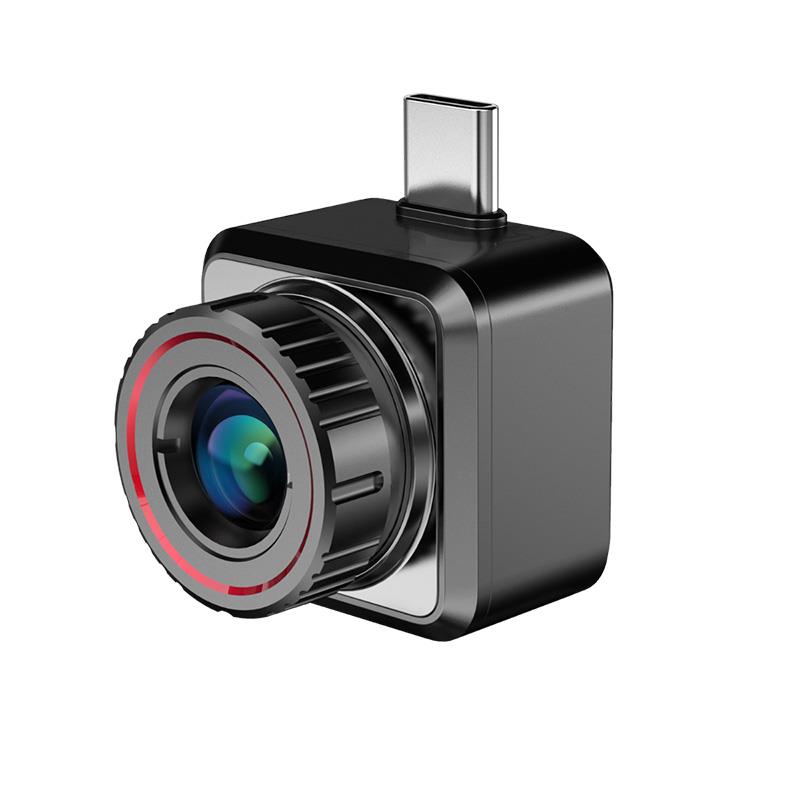

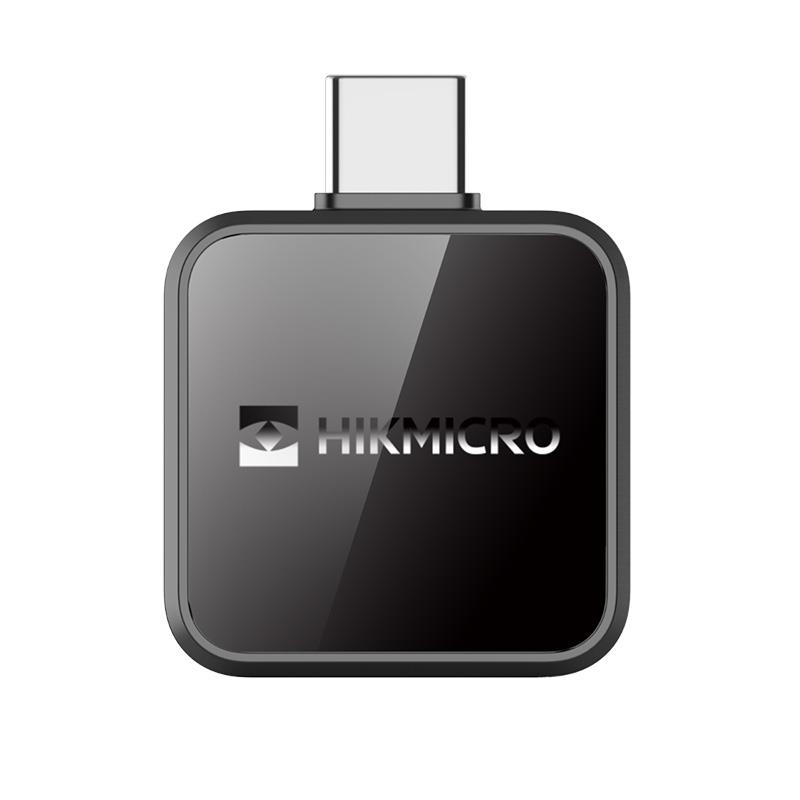

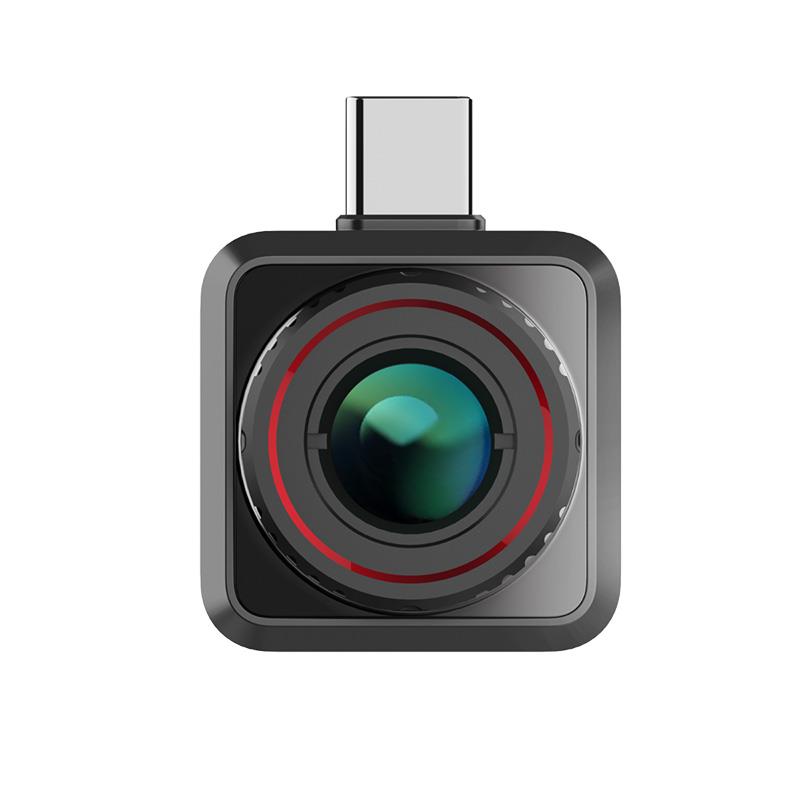

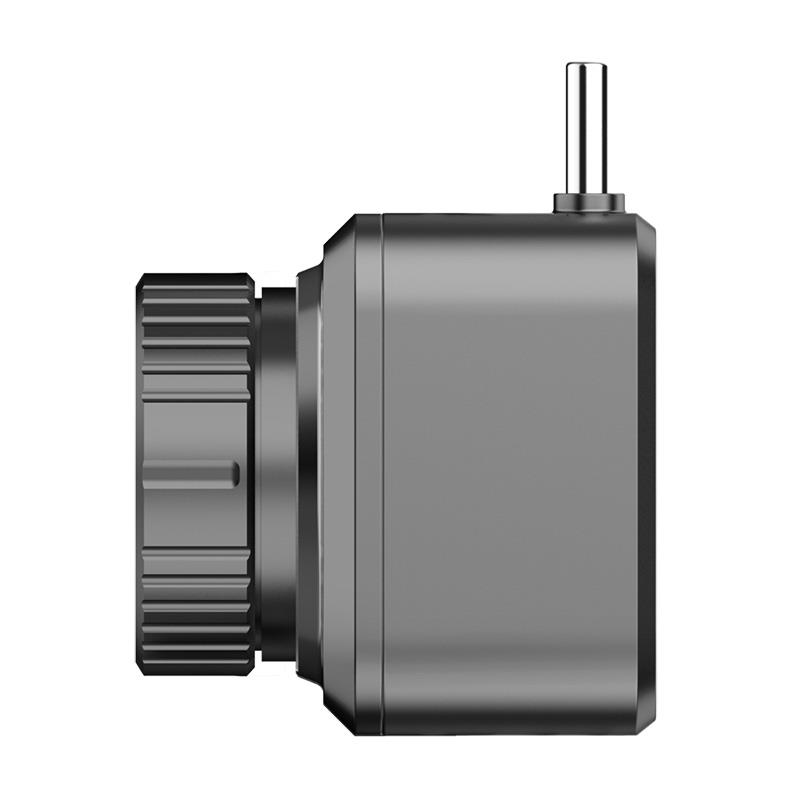

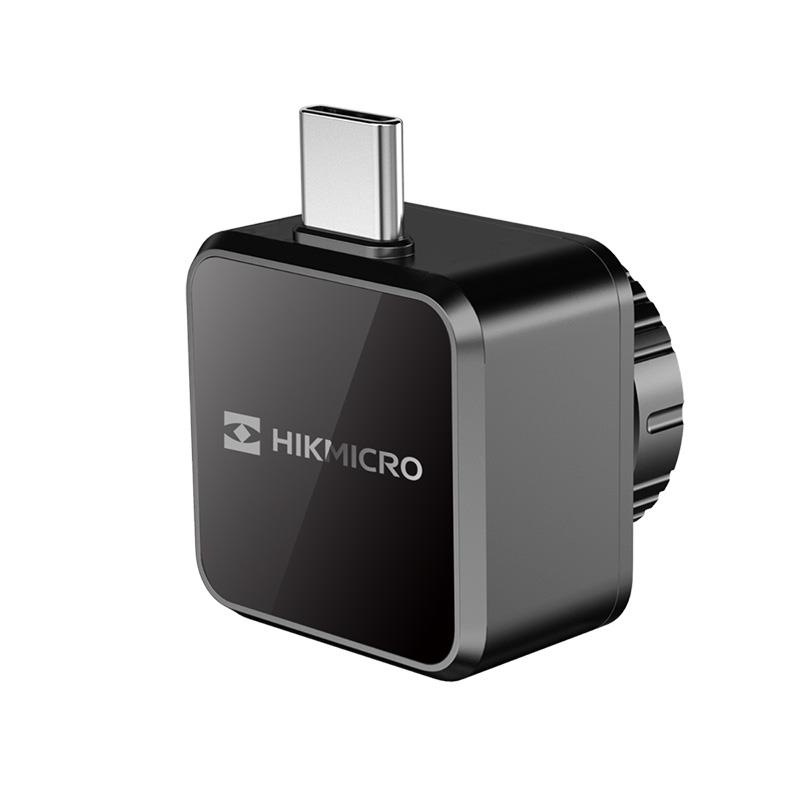

Thermal Camera Hikmicro E20 Plus Pour Smartphone Android

Read more-Product description

Hikmicro
491
Recommended retail price : €491
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Price inc VAT
HIKE20P
(Unavailable)
€491
€491
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
The E20Plus thermal camera for smartphones is designed for consumers who engage in outdoor activities such as birdwatching, hiking, camping, bivouacking, etc.

Combined with the HIKMICRO Sight app, the E20Plus allows you to obtain thermal images on your phone via a USB-C connector.

This E20Plus smartphone thermal camera offers a resolution of 256 × 192 pixels thanks to a non-cooled VOx sensor. With a thermal sensitivity NETD of less than 50 mK, it enables clear detection of objects even in low heat-emission conditions.

Its portable, lightweight design makes it an ideal accessory for outdoor enthusiasts who wish to explore the thermal world around them. With the HIKMICRO Sight app, users can record videos and take photos as well as adjust image contrast and brightness for an optimal viewing experience.

Thermal module :
Image sensor : VOx Uncooled Focal Plane Arrays Maximum resolution : 256 × 192 pixels Refresh rate : 50 Hz Pixel intervals : 12 μm Pixel Pitch : from 8 μm to 14 μm NETD : ≤ 50 mK (@ 25°C, F# = 1.0) Lens : 9,7 mm Detection range : 970 meters Aperture : F1.0 Magnification : 1x to 2x (2x digital zoom) Field of view (H × V), degrees/m at 100 m : 18,1° × 13,6° / 31,8 m × 23,8 m

Image display :
Image mode : Birdwatching / Red Hot / White Hot / Black Hot / Rainbow / Ironbow Contrast adjustment : Contrast adjustable from 0 to 100 with a control slider Brightness adjustment : Brightness adjustable from 0 to 100 with a control slider

System :
Video recording : Yes Image capture : Yes PIP (Picture-in-picture) : Yes Digital compass : Yes Thermal tracking (Hot Track) : Yes

Power :
Interface : USB-C Power consumption : 360 mW Operating temperature : from -10°C to 50°C Dimensions : 26,6 mm × 26,6 mm × 27,2 mm Weight : 26 g Protection level : IP40

Compatibility list
The product compatibility list shows the Android devices compatible with the HIKMICRO E20Plus series. This list will be constantly updated as products are upgraded. For any uncertainty, please contact us at [email protected]. App version : HIKMICRO Sight V2.1.0 build 230113

Recommended configuration :
• Dual-core 1 GHz processor
• 1 GB of RAM
• Resolution of 800 × 480 pixels and above
• Android 7.0 and later versions
• App permissions: File and media; Camera
