Reference
Price inc VAT
Price inc VAT
DG750-S
£555.93
£555.93
Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Descriptive
Back to menu

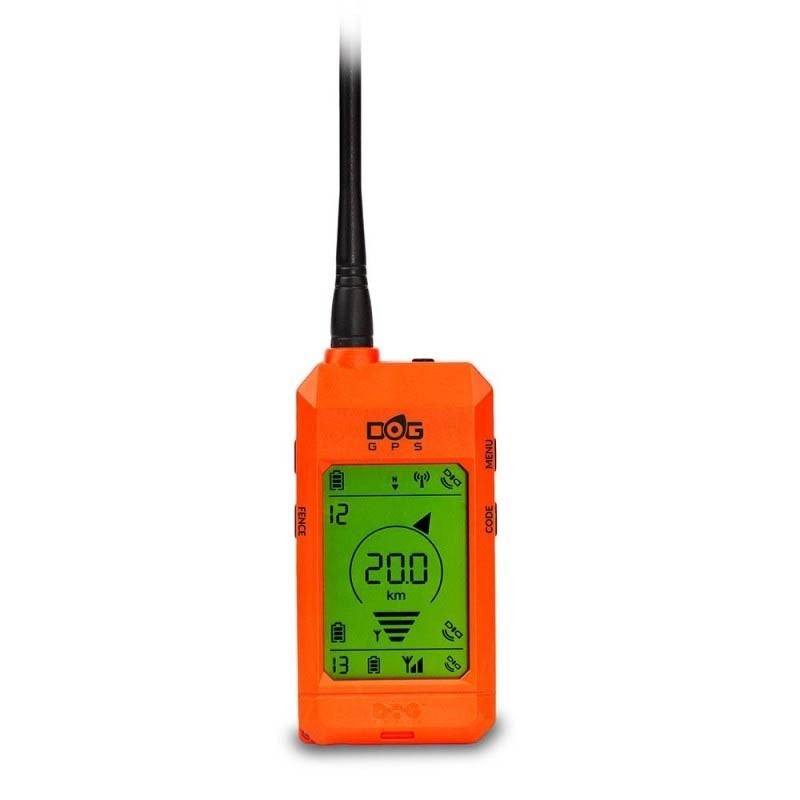

• dogtrace x30 GPS tracking system for dogs. • In addition to the classic features of the x20 GPS, the x30 model offers more options. • Tracking can be done either with the receiver (compass function), via the mobile phone (with maps) or both at the same time. • Ideal for dogs from a 26 cm neck circumference. The flexible section of the electronics is shorter (9 cm compared to the 13 cm of the standard x20 GPS collar), which allows adjusting the strap for small dogs
Features (identical to the x20 model): • Maximum range of 20 km. • Direct location screen for each dog with an arrow indicating the direction and the exact distance at which it is located. • Compass function: the screen always displays true north to make orientation easy and constant. • Waypoint function: allows recording points of interest and locations. (up to 13 on the receiver-remote, each recorded location occupying one collar channel). From the app, points of interest or locations can be recorded without limit. • Woodcock function: allows knowing at any time if a dog is stopped/exposed in a nearby environment. When a dog is at a standstill, the receiver emits a beep or vibrates to alert us. • Wild boar function: activates when one of the dogs moves in circles within the same area • Fence function: allows marking a circular safety perimeter relative to the remote (up to 2 km). If the dog exceeds this distance, the remote emits an audible beep to warn us • Car function: allows the use of the receiver inside the vehicle. • Allows adjusting the communication interval between each collar and the receiver. We can choose to have them communicate every 3, 6 or 9 seconds. This function is very useful for the equipment to offer the best performance both for woodcock dogs and search dogs. • Thanks to dogtrace's exceptional service, all components of the collar (transmitter) and the receiver will be sold separately and can be easily replaced by the user. • Receiver and transmitter are waterproof. Ideal for dogs from a 30 cm neck circumference. • The collar can be easily paired with multiple receivers at the same time. • Charging time for the collars and the receiver: 3 hours. • Charging connectors of the transmitter collar and the receiver have no caps or grooves that could cause problems with mud. • Collar autonomy 40 to 50 hours • Receiver autonomy: 40 hours • Transmitter with interchangeable strap allowing identification by color-

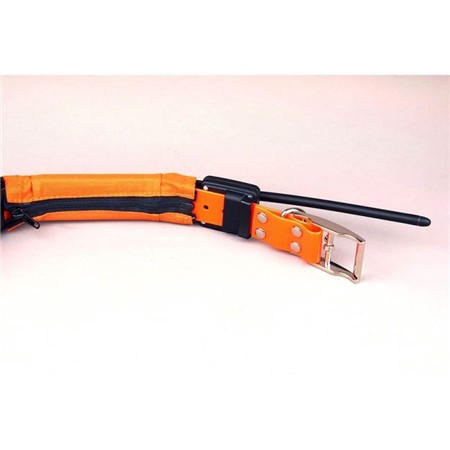

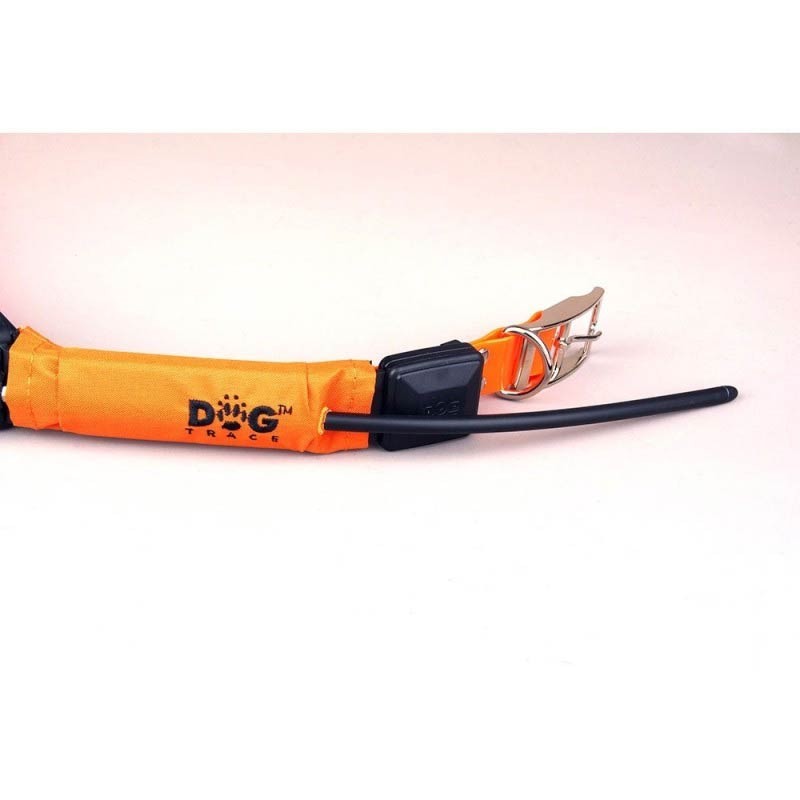

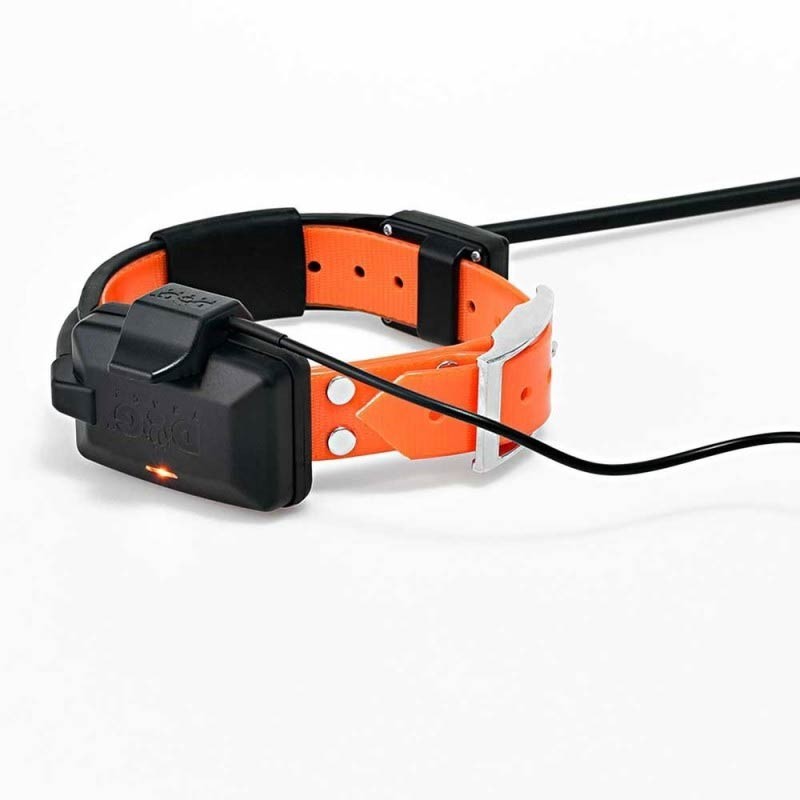

The complete kit includes: • Receiver with li-po 1850 mah battery • The transmitter set with li-po 1850 mah battery + fluorescent orange collar • Double charger (for receiver and transmitter) • Two USB cables • Plastic clip to hang the receiver • Cord to hang the receiver • Nylon protective cover for the transmitter • "dogtrace" carrying bag. • Additional collars are supplied with a charger.

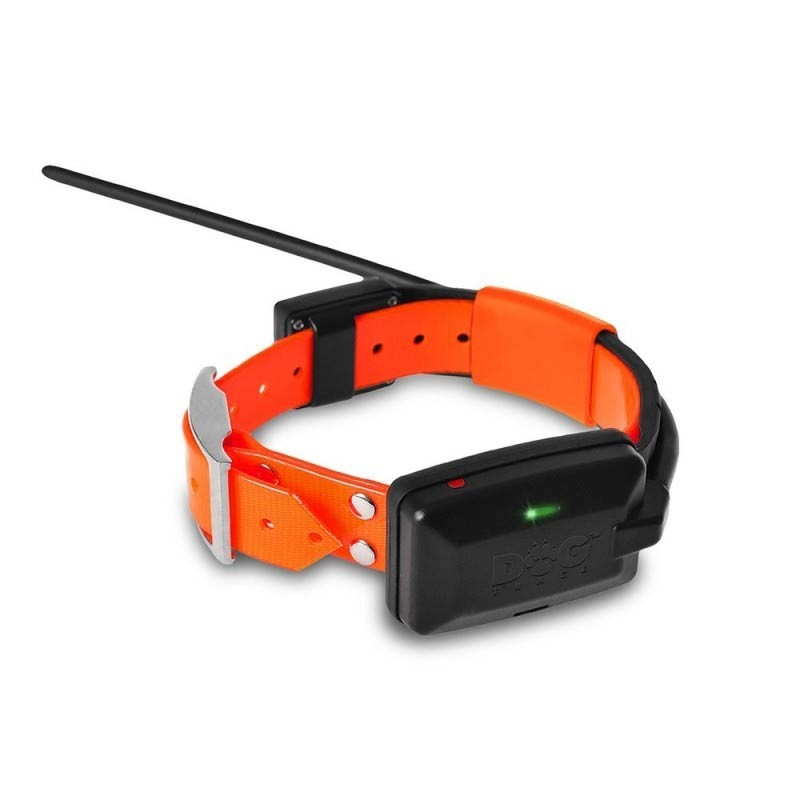

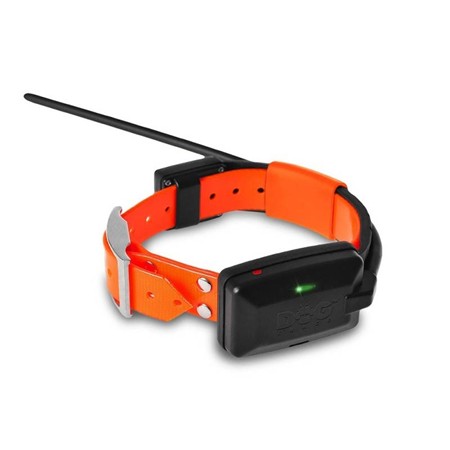

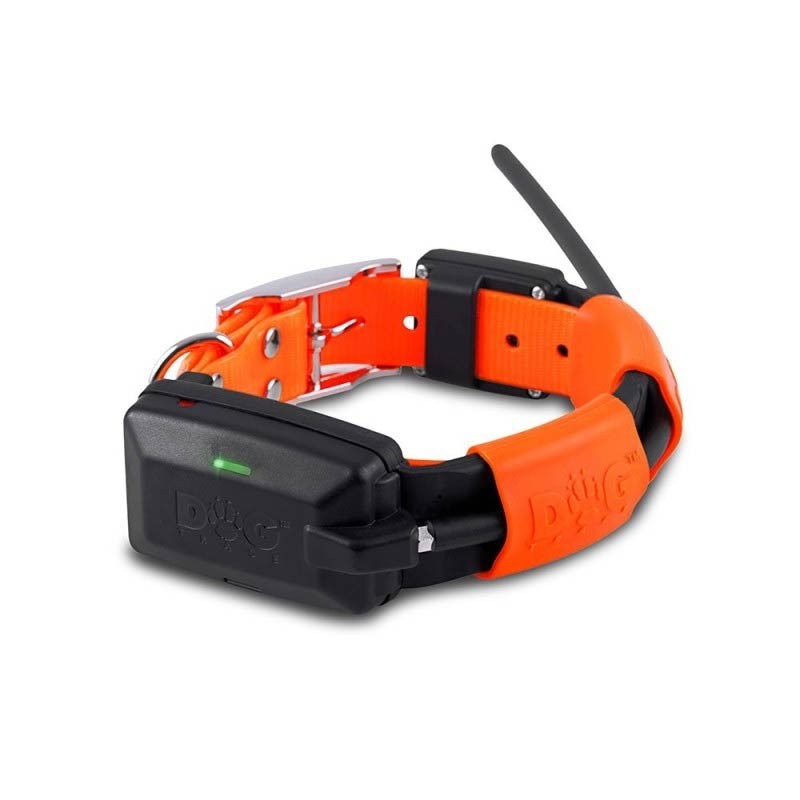

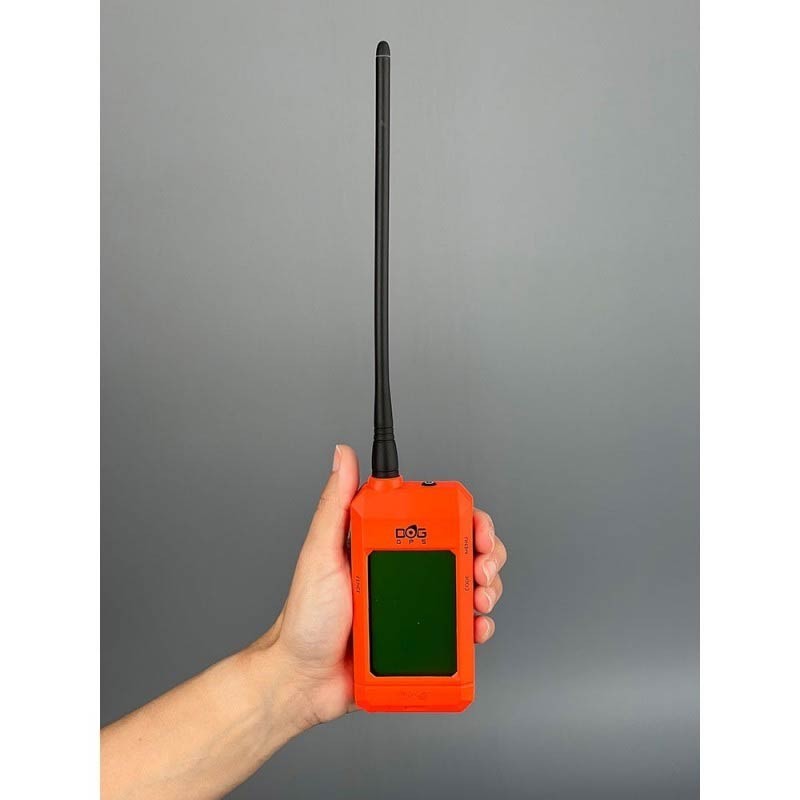

Additional features of the x30: • Allows monitoring up to 13 dogs. (with 13 collars) • Pairing the remote to the smartphone via Bluetooth to use the "dogtrace gps" app ** • Pairing the remote to the smartwatch via Bluetooth to use the "dogtrace gps" app *** • Internal audible signal for short-distance collar localization, audible at about 20 meters. • Integrated in all x30 collar models. • Controllable from the remote or the mobile app. • Call sound signal: allows emitting a gentle sound to call the dog from the receiver or the mobile app. Integrated in all x30 collar models. • Pairing the remote with another user's remote (as if it were another collar) to monitor the position of your companion. • Possibility to change frequency in case of possible interference. • Transmitter collar dimensions: 77 x 45 x 29 mm. Weight: 142 g (without strap). Flexible antenna 30cm. • Receiver dimensions: 119 x 62 x 15 mm. Weight: 192 g. Flexible antenna 22cm.

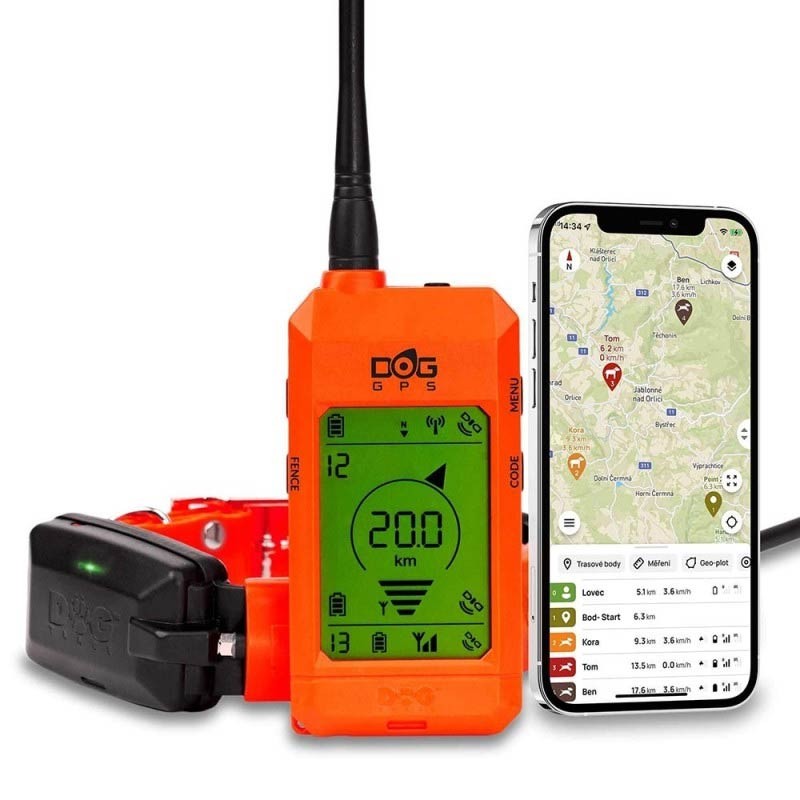

Additional functions when using the mobile app: Maps: displays the position of the dogs on the map. You can choose between a basic map view or a satellite view. You can download the maps (base maps) to use the app in areas without mobile coverage. Download them directly from the app quickly and easily It also allows you to download any other type of map you prefer or that suits your region or activity better (from the computer), and upload it later into the mobile app (mbtiles format). Track: records and saves the route of all collars. Bark detection: the app indicates if the dog barks via an icon. In addition, the time and location of the barks are recorded in the recording mode. Fence function: allows delimiting a circular or custom perimeter. When you use the app, you can define an irregular zone, whereas with the remote the fence function only allows marking a circular perimeter. Waypoint function: allows recording as many points as you wish. These do not occupy the collar's memory. These recorded points can only be viewed from the mobile app and not from the receiver. * The "smartphone" in the main photo is not included in the pack.
** The app is compatible with Android smartphones 5.0 or higher and Apple's iPhones.
** This app is downloaded and installed directly from the watch and synchronizes with the mobile phone. Compatible models: Apple Watch (connected to the iPhone) and smartwatches with Wear OS (connected to a mobile phone with Android operating system).
