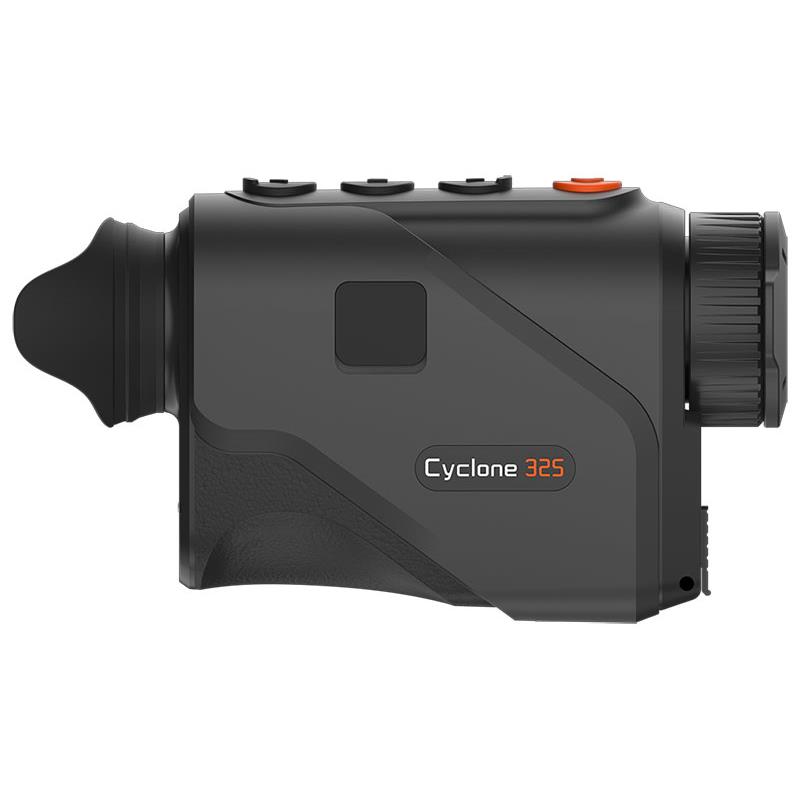

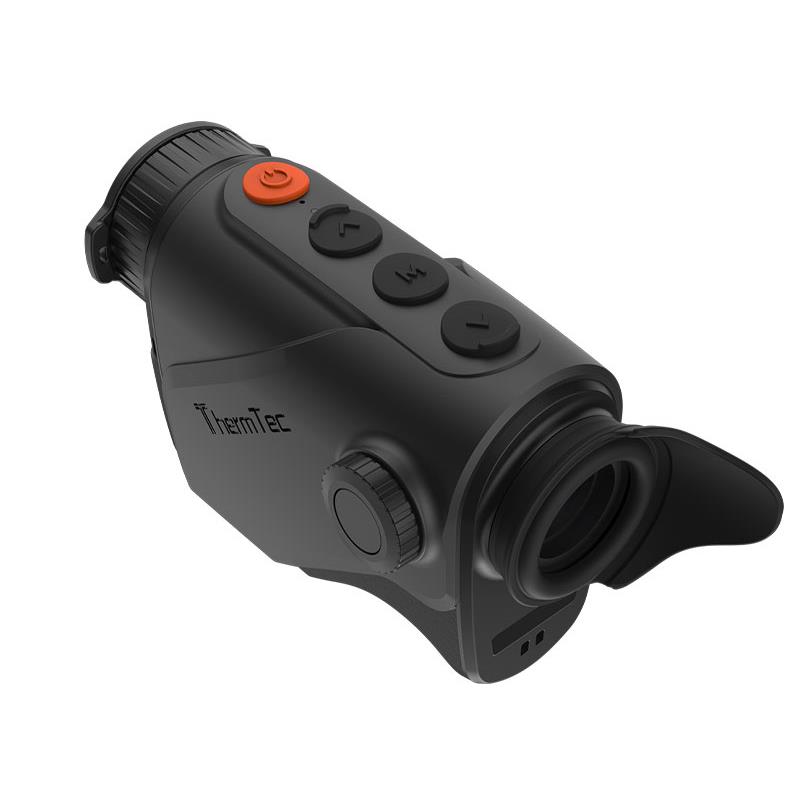

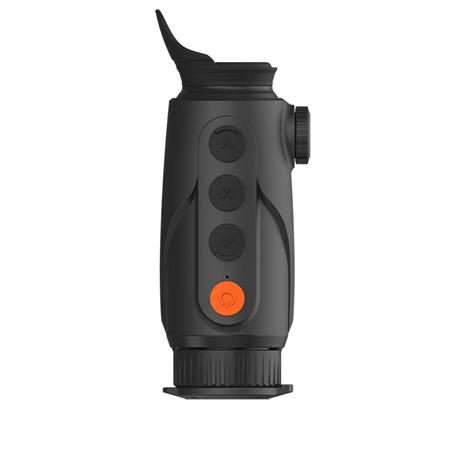

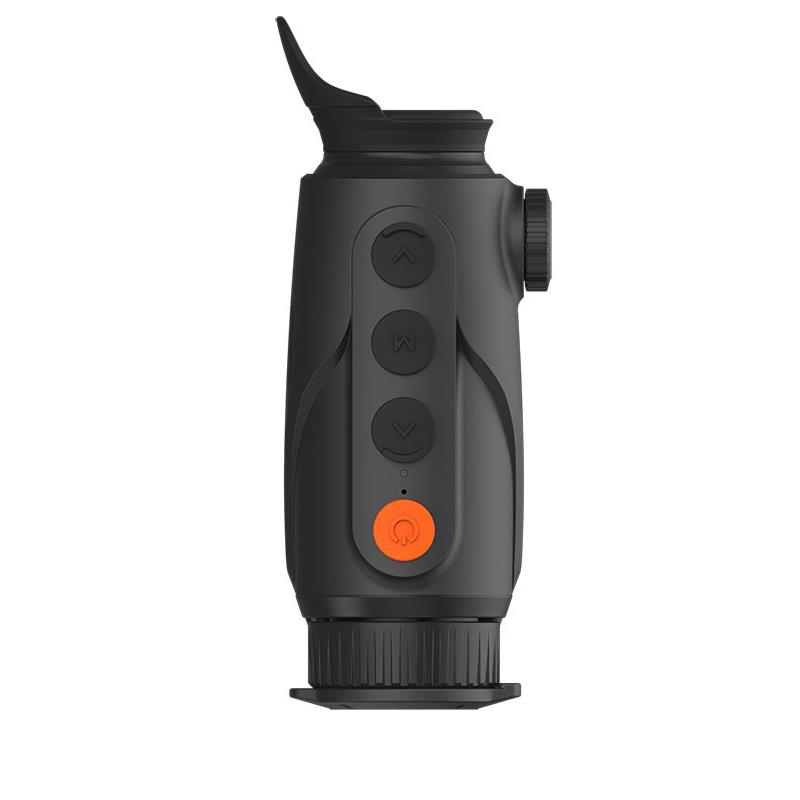

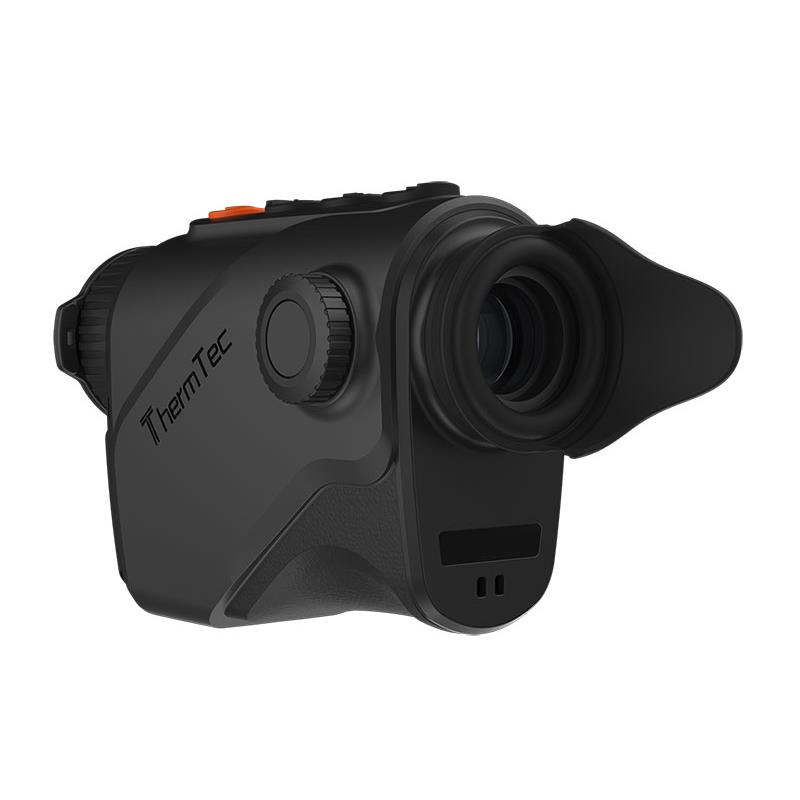

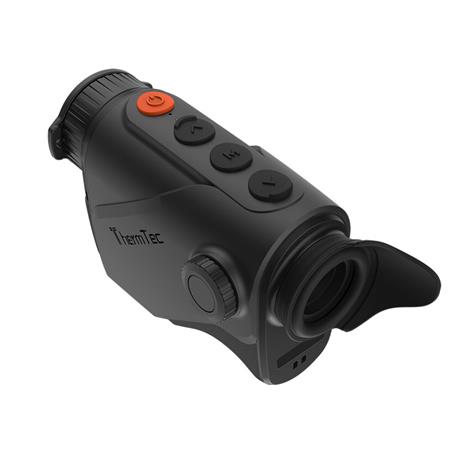

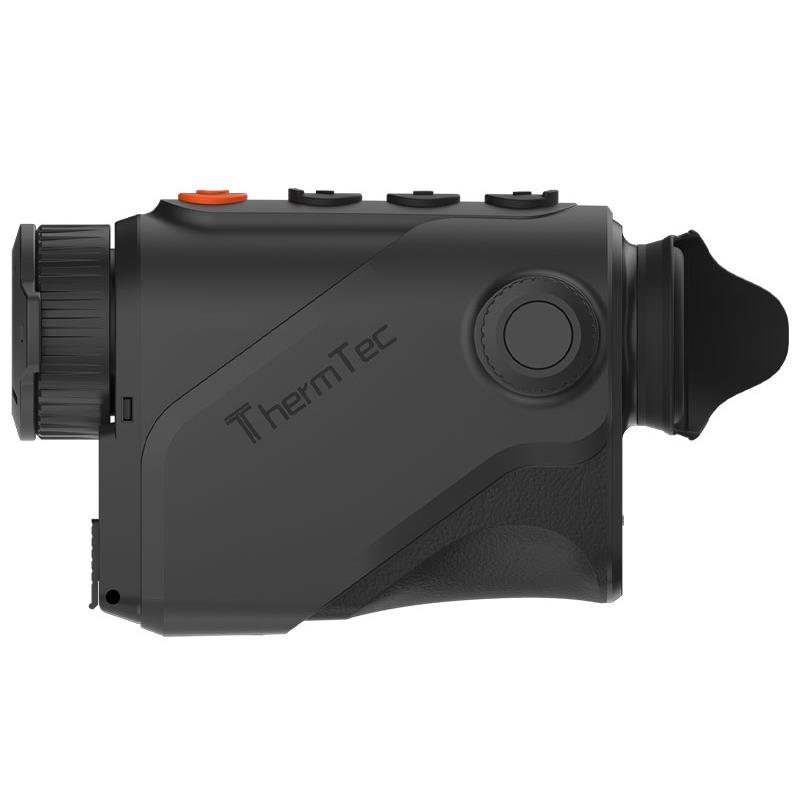

Thermtec Cyclone 325 is a compact, lightweight handheld monocular thermal imager for short- and medium-range observations. Includes a NETD <20 mK detector that delivers excellent image quality. AI auto-learning algorithms that provide increasingly stable target image quality. With advanced features such as multi-target variety, 20 - Hour battery life, 3 - Second fast startup, etc., it is an excellent entry - level choice for exploring the world of thermal imaging.

Pocket - Size precision
With its compact 255 g size and ergonomic curved design, the device fits perfectly in your hand, allowing full one-handed control and effortless access to all buttons, whether you are left- or right-handed. The carefully arranged button layout enables immediate usability once you have grasped it.

Specifications :
• Resolution : 384x288
• Pixel pitch : 12 µm
• Netd : 20 mK @ 300 K
• Spectral range : 8 - 14 µm
• Frame rate : 50 Hz
• Detection range : 1300 m
• Objective lens : 25 mm / f1.0
• Field of view : 10.5 ° x 7.9 °
• / m @ 100m : 18.4 m × 13.8 m
• Magnification : 2.4x
• Digital zoom : 1x, 2x, 4x
• Eye relief : 20 mm
• Exit pupil : 6 mm
• Diopter : ± 5 d
• Type : Amorphous
• Display resolution : 1024x768
• Display size : 0.39 inch
• Color palette : 6
• Image mode : Forest / target / contour
• Photo/video playback : Yes
• Language : Multiple - languages
• Built-in memory : 32 GB
• Audio : Calibration
• PIP : Yes
• AI distance measurement : Auto / manual
• Heat track : Yes
• OSD recording : Yes
• Internal battery : replaceable and rechargeable li - ion battery (18650x1)
• Battery life : 10h
• Type - C : Supports battery charging, data transfer
• Hotspot : Yes, app remote
• Operating temperature : - 20 ℃ ~ + 50 ℃
• Protection level : IP67
• Weight, g : - 261 (W / O Battery)
• Dimension mm : 135 * 76 * 54
• External cable : USB cable
• Other accessories : None - dust cloth and etc.
