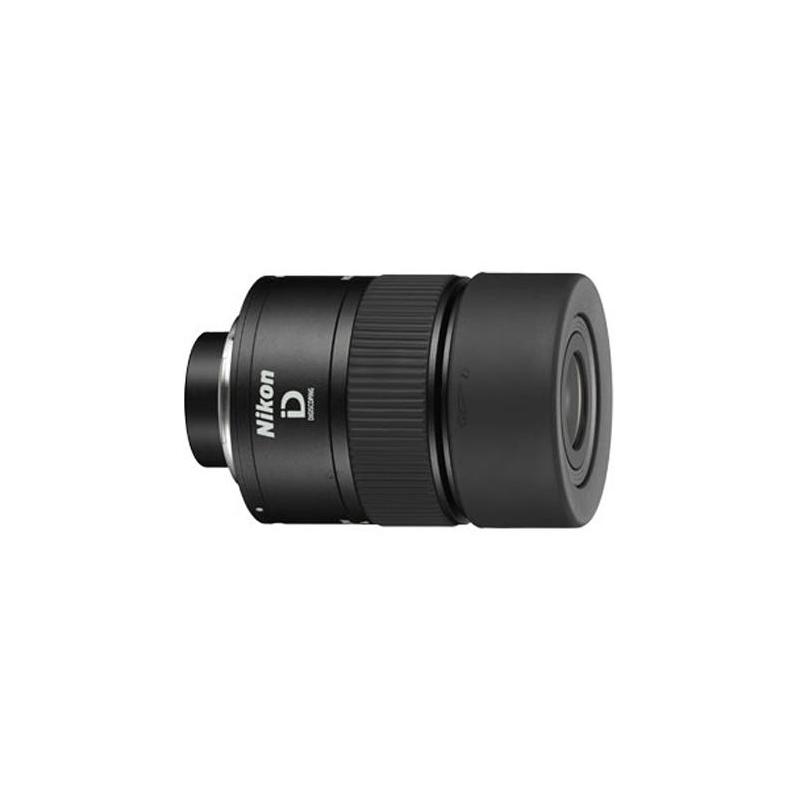

Objective Nikon Monarch Mep-30-60W

Name: OBJECTIVE NIKON MONARCH MEP-30-60W
Brand: Nikon
SKU: 166894

Read more-Product description

£434.13

Recommended retail price : £486.33

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

BDB922WA
(Unavailable)

£434.13

Models & specificities Descriptive

Descriptive

Back to menu

designed specifically for monarch spotting scopes, the mep-30-60w eyepiece stands out for superior optical performance across the entire 2x zoom range.

the sophisticated optical design offers a wide field of view while optimally correcting image distortion across its zoom range, with exceptional optical definition and sharpness. the large eye relief ensures a very sharp angular field, even for eyeglass wearers.

magnification reaches 30-60x if the eyepiece is mounted on a monarch series 82 spotting scope or 24-48x if mounted on a monarch series 60 spotting scope.

features :
• magnification (x) :
- monarch spotting scope diameter 82 : 30 to 60
- monarch spotting scope diameter 60 : 24 to 48
• angular field (true/degrees) :
- monarch spotting scope diameter 82 : 2.0 - 1.2
- monarch spotting scope diameter 60 : 2.5 - 1.5
• angular field (apparent/degrees) : 55.3 - 65.6
• perceived linear field at 1000 m (m) :
- monarch spotting scope diameter 82 : 35 - 21
- monarch spotting scope diameter 60 : 44 - 26
• exit pupil (mm) :
- monarch spotting scope diameter 82 : 2.7 - 1.4
- monarch spotting scope diameter 60 : 2.5 - 1.3
• relative brightness (m) :
- monarch spotting scope diameter 82 : 7.3 - 2.0
- monarch spotting scope diameter 60 : 6.3 - 1.6
• eye relief (mm) : 15.2 - 14.2
• length (mm) : 91 (ds)./92 (ts) (body only)
• width (mm) : 62
• weight (g) : 370 (ds)./400 (ts)
• waterproofing :
- eyepiece : not waterproof
- when mounted on the spotting scope : waterproof (equivalent to 5 mm per minute for a duration of 30 minutes)
